Felt IAx Advanced Rival eTap AXS 2025

2025 Road
Estimate price | 8,142$
Open compare Use advisor

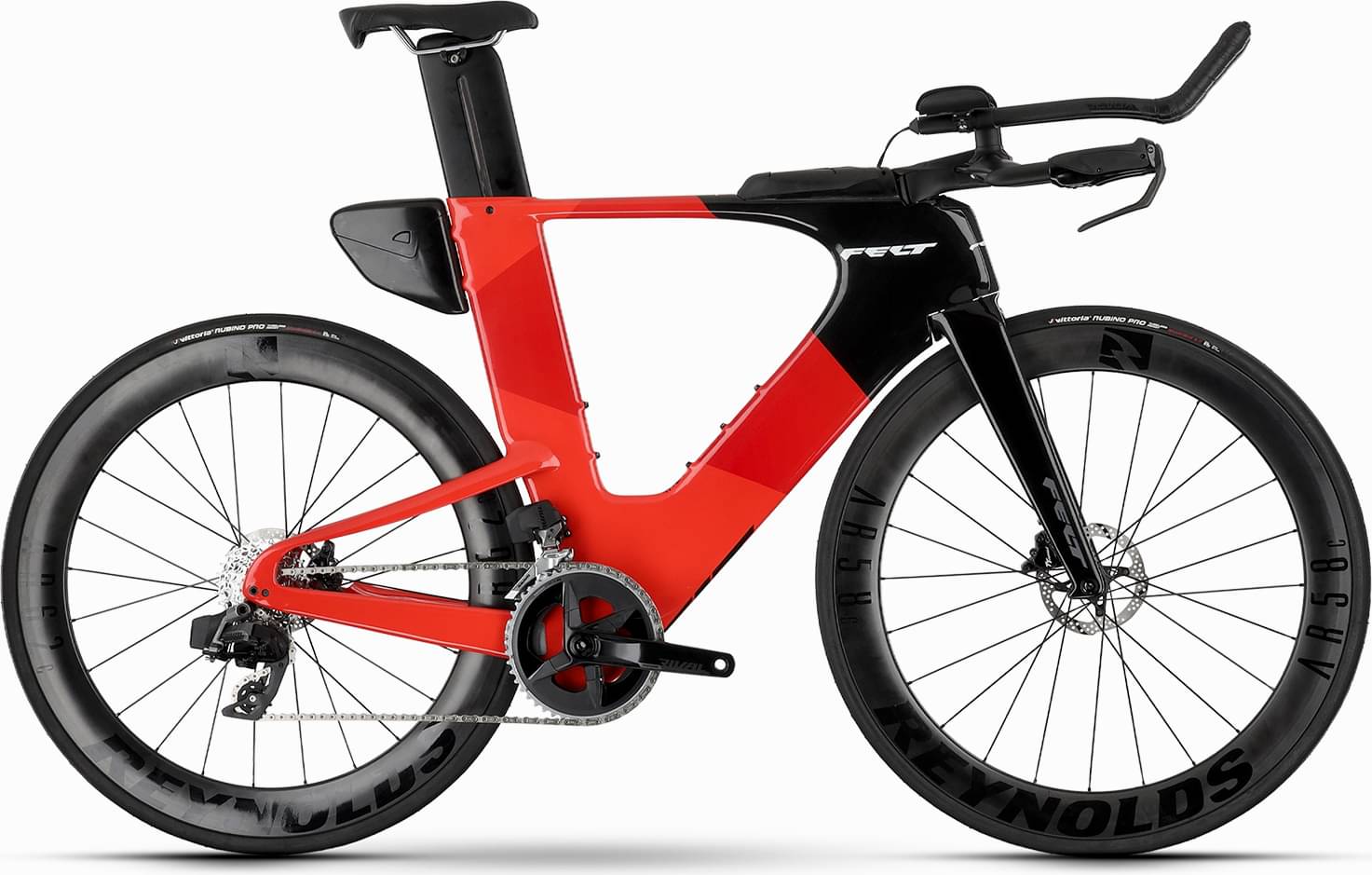

Felt Iax Advanced Rival Etap Axs 2025

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Groupset Rival AXS
  • Suspension Rigid
  • Drivetrain 2 × 12 Electronic
  • Brakes TRP Hydraulic Disc
Sizing

Recommended size guide.

  • 48cm

    152cm - 169cm

  • 51cm

    166cm - 174cm

  • 54cm

    171cm - 182cm

  • 56cm

    179cm - 189cm

  • 58cm

    186cm - 195cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

Felt IAx 1.0, UHC Advanced

Suspension Fork

Felt IAx 1.0, UHC Advanced

Drivetrain

Rear Derailleur

SRAM Rival eTap AXS, 24-S

Front Derailleur

SRAM Rival eTap AXS, Brazed-On

Cassette

SRAM XG-1250, 11-30 T

Crank

SRAM Rival, DUB, 48/35 T

Wheels

Rims

Reynolds AR58/62 DB Custom, Tubeless ready

Tires

Continental Grand Prix SL, 700x25

Brakes

Brakes

Front: TRP HD-T910, 2-piston, Hydraulic disc brake, Rear: TRP HD-T910, 2-piston, Hydraulic disc brake

Cockpit

Handlebar

Basebar: Devox Bayonet 3.1 | SuperLite aluminum / Extensions: Devox Ergomod | aluminum

Seat

Saddle

ISM PS1.0, Satin Steel

Seatpost

Felt Aero TRI IL 1.0 VM

Fit data

Geometry

Numbers for sizing and ride feel.

Size48cm51cm54cm56cm58cm
Stack Reach Ratio
1.251 mm1.263 mm1.287 mm1.292 mm1.286 mm
Bottom Bracket Height
264 mm264 mm264 mm264 mm264 mm
Stack
473 mm495 mm520 mm544 mm566 mm
Reach
378 mm392 mm404 mm421 mm440 mm
Top Tube Length
467 mm490 mm510 mm538 mm567 mm
Seat Tube Angle
79.5 °79 °78.5 °78 °77.5 °
Seat Tube Length
489 mm512 mm538 mm563 mm586 mm
Head Tube Angle
71.5 °71.5 °72 °72 °72 °
Head Tube Length
63 mm86 mm109 mm134 mm157 mm
Wheelbase
958 mm980 mm990 mm1016 mm1042 mm
Bottom Bracket Drop
72 mm72 mm72 mm72 mm72 mm
Wheels700700700700700
Rider Min Height152 cm166 cm171 cm179 cm186 cm
Rider Max Height169 cm174 cm182 cm189 cm195 cm
