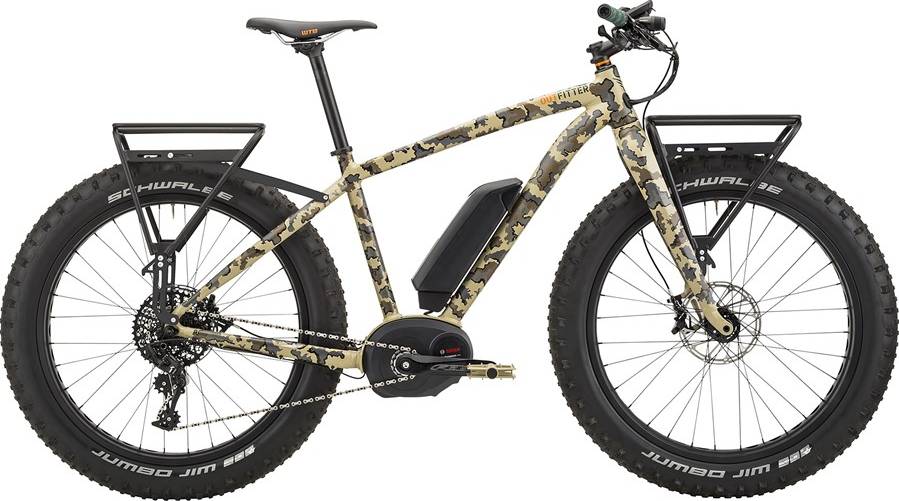

Felt Outfitter 2018
2018 E-bike
Estimate price |
5,499$
Weight | 23.56 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Groupset X1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Electric MTB Fat Tire, Bosch-specific, double-butted 6061 aluminum, ControlTaper headtube, full internal cable routing, 190 x 12mm Maxle dropouts, disc-brake specific, rear kickstand mount
Suspension Fork
Felt Fat Tire rigid, oversized hollow crown, Hydroformed 6061 aluminum blades, aluminum tapered steerer, 150 x 15mm Maxle style dropouts, disc-brake specific, eyeleted
Rear Shock
n/a
Drivetrain
Rear Derailleur
SRAM X1 11-speed
Front Derailleur
n/a
Shift Levers
SRAM X1 11-speed trigger shifter
Cassette
SRAM CS-XG1180 11-speed cassette, 10-42T
Crank
Felt Electric MTB Bosch-specific crankset, forged aluminum, 15T cog: S = 170m M/L = 175mm
Bottom Bracket
Bosch Performance eDrive Unit, 350W output, 20 mph
Chain
SRAM PC-X1 X-Sync w/ Powerlock
Chain Guide
n/a
Pedals
MTB aluminum body & cage, toe clip compatible
Wheels
Front Hub
Forged aluminum 150 x 15mm thru axle, 32H: sealed cartridge bearing, 6-bolt disc mount
Rear Hub
Forged aluminum 11-speed cassette, 12 x 197mm, 32H rear: sealed cartridge bearing, 6-bolt disc mount
Rims
Felt double-wall Fat Tire: 26"x 80mm w/ machined cut-outs
Spokes
2.0 / 1.8mm double-butted stainless steel
Tires
Schwalbe Jumbo Jim Evolution, LiteSkin, folding, 26 x 4.0" w/ presta valve tubes
Brakes
Brakes
Front Brake: SRAM Guide R hydraulic w/ 4-piston caliper: 180mm 6-bolt Centerline rotor/Rear Brake: SRAM Guide R hydraulic w/ 4-piston caliper: 180mm 6-bolt Centerline rotor
Brake Levers
SRAM Guide R hydraulic
Cockpit
Stem
Felt MTB SL design 3D-forged aluminum w/ 4-bolt handlebar clamp, 1-1/8" threadless: Ø31.8mm handlebar, 7° rise, w/ black Cr-Mo hardware S = 80mm M = 90mm L = 100mm
Handlebar
Felt MTB 6061 butted aluminum riser: Ø31.8mm, 15mm rise x 9° sweep, 720mm width
Grips
Felt XC trail single aluminum clamp lock-on, wing-style
Headset
FSA No.57E/62 1.125" - 1.5" Aheadset, semi-integrated upper & external lower extender Cup: ACB water sealed bearings, w/ Felt Tornado aluminum top cap, custom 1 x 12,3mm curved, 2 x 5mm straight washers
Seat
Saddle
WTB Silverado Race: w/ DNAX padding & Cr-Mo rails
Seatpost
Felt 2-bolt micro-adjust butted 6061 aluminum, Ø30.9mm x 15mm offset: S = 350mm M/L = 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 16" | 18" | 21" |
|---|---|---|---|
| Stack Reach Ratio | 1.52 mm | 1.46 mm | 1.41 mm |
| Bottom Bracket Height | 278 mm | 278 mm | 278 mm |
| Front Center | 642.6 mm | 673.3 mm | 704 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 76 mm | 77 mm | 77 mm |
| Stack | 609 mm | 623 mm | 637 mm |
| Reach | 401 mm | 427 mm | 453 mm |
| Top Tube Length | 586 mm | 616 mm | 646 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 406 mm | 469.9 mm | 533.4 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Chainstay Length | 501 mm | 501 mm | 501 mm |
| Wheelbase | 1136 mm | 1166 mm | 1197 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm |
| Standover Height | 726 mm | 779 mm | 831 mm |
| Wheels | 26" | 26" | 26" |
Model Overview
Outfitter completes the Felt E Outfitter model. 3 e-bikes variations carry this model name so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Fatbike e-bikes
Our math shows that the average cost of a dependable Fatbike e-bike is 2033$. However, even though the average price of a Fatbike e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2018 and its price was 5499$. Comparing the average cost of a Fatbike e-bike to this one, you will see that Outfitter price is 170.49% higher.
Fatbike e-bikes average weight
Fatbike e-bikes weigh an average of 31.21 kg (68.81 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 23.56 kg (51.94 lbs), Felt e-bike is much lighter than average. In short, the average Fatbike e-bike weight is 32.47% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Outfitter components
Fork material
The fork is made out of aluminum, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When leaving the production line, the Outfitter model has 26″ aluminum wheels. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Felt Outfitter is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
