Bike details
Overview
Key information split into simple groups.

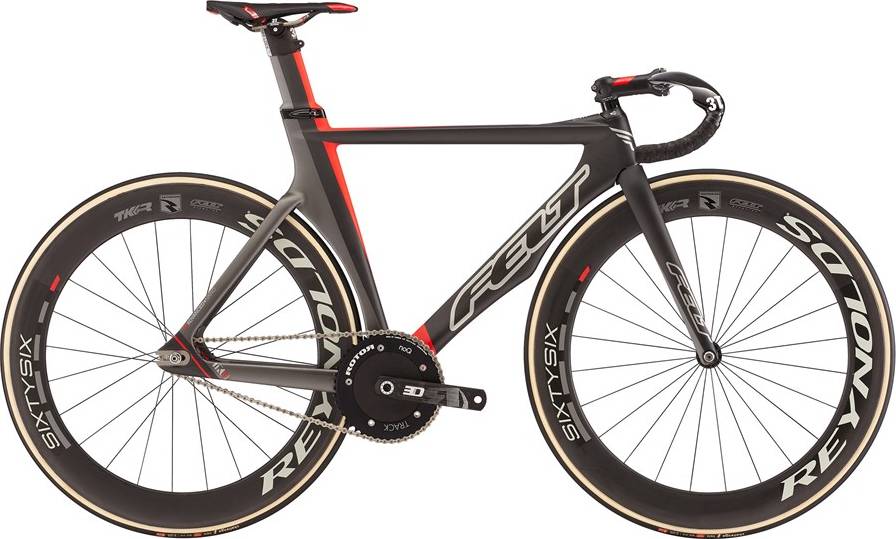

Bike summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid -
Drivetrain Single Speed
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Aero Track UHC Advanced carbon fiber, MMC w/ InsideOut construction, threaded BB, horizontal dropouts w/ titanium surfaces & integrated chain tensioners
Suspension Fork
Felt Aero Track UHC Ultimate carbon fiber monocoque construction, 1.125" carbon fiber steer tube, crown, blades & dropouts w/ aluminum steer tube plug
Rear Shock
n/a
Drivetrain
Rear Derailleur
n/a
Front Derailleur
n/a
Shift Levers
n/a
Cassette
15T x 1/8" w/ lockring
Crank
Rotor 3D24 Track crankset
Bottom Bracket
Rotor
Chain
KMC X101 1-Speed
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Felt TkR1, sealed cartridge bearing, 28H
Rear Hub
Felt TkR1, sealed cartridge bearing, 28H, double-threaded fixed / fixed
Rims
Felt TkR1 by Reynolds tubular
Spokes
Bladed double butted stainless steel w/aluminum spoke nipples
Tires
Challenge Pista Ultra,l 1000+tpi Silk casing, 28" x 22mm
Brakes
Brakes
n/a
Brake Levers
n/a
Cockpit
Stem
3T Team Stem w/ titanium bolts, +/-10° rise, Ø31.8mm, 100mm
Handlebar
3T SCATTO LTD carbon fiber, Ø31.8mm
Grips
Felt VelvetGel Tape
Headset
FSA IS integrated, 1.125" sealed cartridge bearing w/ custom TK1 cone spacer, 1 x 10mm + 1 x 5mm PC headset spacers, Felt top cap & aluminum bolt
Seat
Saddle
Prologo Zero II CPC TiRox
Seatpost
Felt Tk1 carbon fiber w/ 3T DiffLock™ internals
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 52cm | 55cm | 57cm | 60cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.19 mm | 1.16 mm | 1.17 mm | 1.19 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 566 mm | 582 mm | 598 mm | 619 mm |
| Rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 60 mm | 59 mm | 54 mm | 52 mm |
| Stack | 472 mm | 483 mm | 504 mm | 530 mm |
| Reach | 398 mm | 415 mm | 429 mm | 447 mm |
| Top Tube Length | 533 mm | 553 mm | 573 mm | 603 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 505 mm | 525 mm | 545 mm | 570 mm |
| Head Tube Angle | 73 ° | 73.5 ° | 74 ° | 74.5 ° |
| Head Tube Length | 80 mm | 90 mm | 110 mm | 135 mm |
| Chainstay Length | 378 mm | 378 mm | 378 mm | 378 mm |
| Wheelbase | 938 mm | 953 mm | 970 mm | 990 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 748 mm | 757 mm | 777 mm | 803 mm |
| Wheels | 700 | 700 | 700 | 700 |
Model Overview
TK1 belongs to the Felt Tk1 model. 13 bikes variations carry this model name so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Track bikes average price
If you want an acceptable Track bike you should know that the average price is 1503$. However, you could also get a good Track bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4999$. Comparing this to the average Track bike price, we see that the price is 232.6% more expensive.
Track bikes average weight
On a deeper look, we notice that the average weight of a Track bike is 7.85 kg (17.31 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 6.88 kg (15.17 lbs), the TK1 model is considerably lighter than average. In conclusion, the average Track bike weighs 14.1% more than TK1.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on TK1 are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
