Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Suspension Rigid -
Drivetrain Single Speed
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Aero Track UltraLite Custom Butted 7005 aluminum, threaded BB shell, horizontal dropouts w/ cast steel surfaces & integrated chain tensioners
Suspension Fork
Felt Aero Track UHC Performance carbon fiber blades & dropouts, 1.125" aluminum steer tube
Rear Shock
n/a
Drivetrain
Rear Derailleur
n/a
Front Derailleur
n/a
Shift Levers
n/a
Cassette
15T x 3/32" w/ lockring
Crank
Felt Track, 144mm BCD 51 - 54cm = 165mm 56cm = 167.5mm 58 - 61cm = 170mm
Bottom Bracket
FSA Square Tapered, 68mm
Chain
KMC Z610HX 1-Speed
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Felt TkR4, loose ball bearings, 28H
Rear Hub
Felt TkR4, loose ball bearings, 28H, double-threaded fixed/fixed
Rims
Felt TkR4, 30mm depth
Spokes
2.0mm stainless steel
Tires
Vittoria Rubino Slick, 700 x 23c
Brakes
Brakes
n/a
Brake Levers
n/a
Cockpit
Stem
Felt SuperLite, +/-7° rise, Ø31.8mm 51cm = 90mm 54 - 56cm = 100mm 58cm = 110mm 61cm = 120mm
Handlebar
Felt TKR-MSO, Ø31.8mm 51 - 54cm = 380mm 56 - 58cm = 400mm 61cm = 420mm
Grips
Felt TkR Track Grips
Headset
FSA IS integrated, 1.125" sealed cartridge bearing w/ aluminum 9mm cone spacer, 20mm optional secondary cone spacer, 2 x 10mm + 1 x 5mm PC headset spacers, Felt top cap & aluminum bolt
Seat
Saddle
Felt SuperLite
Seatpost
Felt TkR, Ø27.2mm, 300mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 43cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.19 mm | 1.35 mm | 1.32 mm | 1.32 mm | 1.32 mm | 1.35 mm |
| Bottom Bracket Height | 303 mm | 281 mm | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 543 mm | 547 mm | 550 mm | 569 mm | 589 mm | 615 mm |
| Rake | 41 mm | 43 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Trail | 70 mm | 53 mm | 59 mm | 58 mm | 58 mm | 58 mm |
| Stack | 429 mm | 497 mm | 513 mm | 532 mm | 551 mm | 585 mm |
| Reach | 361 mm | 368 mm | 388 mm | 402 mm | 417 mm | 434 mm |
| Top Tube Length | 471 mm | 511 mm | 536 mm | 556 mm | 576 mm | 603 mm |
| Seat Tube Angle | 76 ° | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 510 mm | 540 mm | 560 mm | 580 mm | 610 mm |
| Head Tube Angle | 71.5 ° | 74 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Head Tube Length | 90 mm | 110 mm | 120 mm | 140 mm | 160 mm | 195 mm |
| Chainstay Length | 370 mm | 391 mm | 391 mm | 391 mm | 391 mm | 391 mm |
| Wheelbase | 910 mm | 931 mm | 934 mm | 954 mm | 974 mm | 1000 mm |
| Bottom Bracket Drop | 33 mm | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

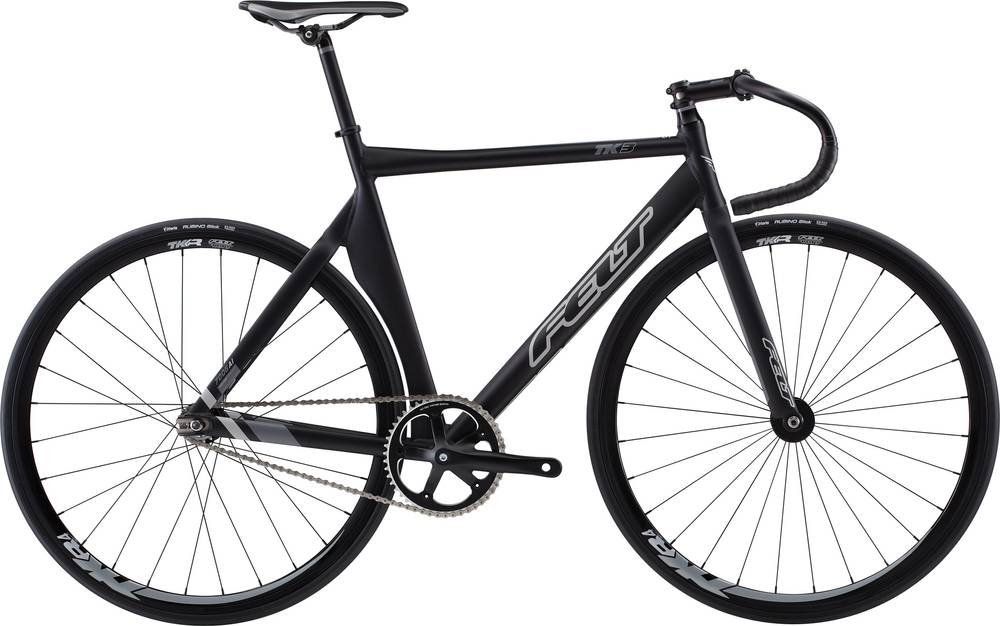

Tk3 belongs to the Felt Tk3 model. 10 bikes variations carry this model name so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Track bikes average price
According to our math, the average price for a trustworthy Track bike is 1503$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Track bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Track bikes average weight
The average weight for Track bikes is 7.85 kg (17.31 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Felt Tk3 it’s weighing 8.12 kg (17.9 lbs). At this weight, is slightly heavier than average. In conclusion, the average Track bike weighs 3.44% less than Tk3.
Tk3 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Tk3 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
