Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 24" -
Groupset Deore, Shimano -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt cargo Shimano Steps e-bike design, double dutted 6061 aluminum: ControlTaper headtube, Integrated rack, full internal cable routing, disc-brake specific
Suspension Fork
Felt rigid 6061 aluminum cargo bike fork, aluminum tapered steerer, disc-brake specific, w/ eyelets
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano Deore RD-T610-SGS 10-speed: long cage
Front Derailleur
n/a
Shift Levers
Shimano Deore SL-M610 10-speed Rapid Fire
Cassette
Shimano CS-HG 50 10-speed cassette, 11-36T
Crank
Shimano Steps eBike-specific crankset, forged aluminum length = 175mm
Bottom Bracket
Shimano Steps eDrive Unit, 350W output, 20 mp/h
Chain
KMC X10
Chain Guide
Shimano Steps chainring
Pedals
VP-615 Felt design, low profile body, PP cage & body, taper head Cr-Mo axle
Wheels
Front Hub
Shimano Deore HB-M615, 36H: center lock disc mount w/Shimano quick release lever
Rear Hub
Shimano Deore FH-M615, 36H: center lock disc mount w/Shimano quick release lever
Rims
Alexrims SUPRA BH double-wall aluminum disc brake, single eyelets
Spokes
2.0 / 1.8mm double butted stainless steel
Tires
Schwalbe Crazy Bob KevlarGuard, 24 x 2.35 w/ presta valve tubes
Brakes
Brakes
Front Brake: Shimano BR-M355 hydraulic: 180mm Centerlock rotor/Rear Brake: Shimano BR-M355 hydraulic: 160mm Centerlock rotor
Brake Levers
Shimano BR-M355 hydraulic
Cockpit
Stem
Felt Tote'm Design 3D-forged aluminumw/ 4-bolt handlebar clamp, 1-1/8" threadless: Ø31.8mm handlebar, 35° rise, w/ black Cr-Mo hardware length: 80mm
Handlebar
Felt Tote'm double butted aluminum trekking style bar: Ø31.8mm, 30° sweep, 17mm rise 680mm
Grips
Felt ergo grip dual-density Kraton rubber, wing-style
Headset
FSA No.57E 1.125" - 1.5" Aheadset, semi-integrated Aheadset: ACB water sealed bearings, w/ Felt Tornado aluminum top cap, custom 1 x 15mm curved, 3 x 5mm & 2 x 10mm straight washers
Seat
Saddle
Felt Tote'm design comfort gel: unisex fit w/ dual density base
Seatpost
Felt twin clamp micro adjust 6061 aluminum, Ø31.6mm length: 400mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Front Center | 641 mm | 672 mm | 697 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Top Tube Length | 570 mm | 600 mm | 625 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 400 mm | 180 mm | 180 mm |
| Chainstay Length | 552 mm | 552 mm | 552 mm |
| Wheelbase | 1192 mm | 1223 mm | 1248 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm |
| Wheels | 24" | 24" | 24" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

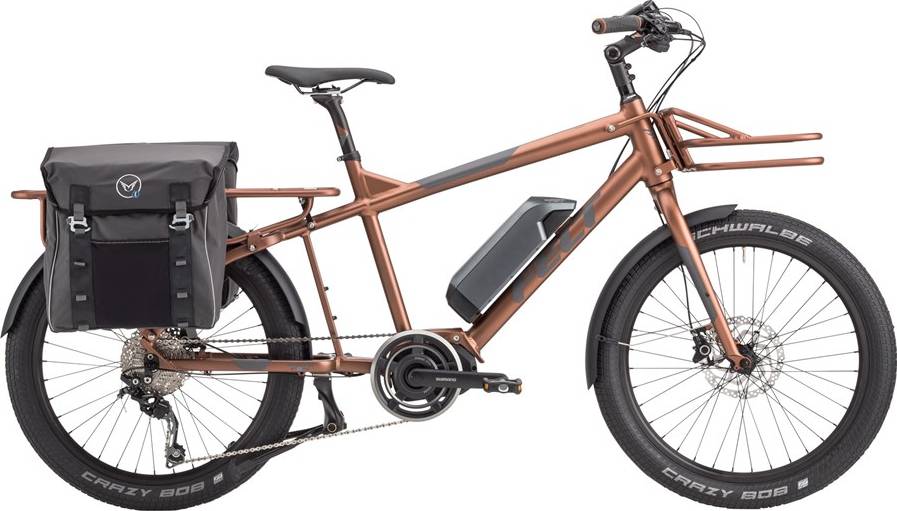

Tote’m is part of the Felt E Totem model. Felt launched 2 e-bikes of this model so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Long Tail Cargo e-bikes
According to our math, the average price for a trustworthy Long Tail Cargo e-bike is 3082$. However, this doesn’t mean that if you spend less money on a Long Tail Cargo e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Felt released this model in 2017, its price was 3999$. In conclusion, this e-bike price is 29.75% more expensive than the price of the average Long Tail Cargo e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
When it comes to the fork, this e-bike has an aluminum one, which doesn’t add too much extra weight to the e-bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
The wheels on Tote’m are the 24″ aluminum type. The 24″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
For your safety, it is important to have quality breaks on your bike. Felt Tote’m has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
