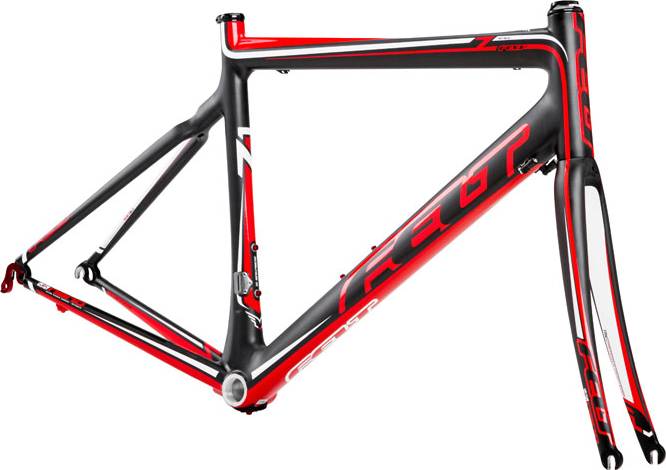

Felt Z1 Frame 2011
2011 Road
Estimate price |
2,699$
Weight | 0.9 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Classic UHC Ultimate MMC Carbon Fiber Frame w/ 3KP Weave, InsideOut Internal Molding Process, Di2 External Cable Routing, Forged Aluminum dropouts & 7075 CNC machined replaceable derailleur hanger, 922g
Suspension Fork
Felt UHC Advanced Carbon Fiber Monocoque Fork w/ 3KP Weave; 1 piece Carbon 1.125 Steerer tube, Crown, Blades, and Aluminum Dropouts, 322g
Cockpit
Headset
FSA 1.125 Integrated w/ 25mm Aluminum Cone & 2 X 10mm Aluminum Headset Spacer, 1 x 5mm Aluminum Headset Spacer, Felt Aluminum Top Cap & 7075 Anodized Aluminum Bolt
Seat
Seatpost
N/A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.461 mm | 1.495 mm | 1.531 mm | 1.525 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 583.8 mm | 595 mm | 605.1 mm | 614.9 mm | 634.9 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 541 mm | 561 mm | 580 mm | 600 mm | 619 mm |
| Reach | 374 mm | 384 mm | 388 mm | 392 mm | 406 mm |
| Head Tube Length | 140 mm | 160 mm | 180 mm | 200 mm | 220 mm |
| Chainstay Length | 417 mm | 417 mm | 417 mm | 417 mm | 417 mm |
| Wheelbase | 990 mm | 1001 mm | 1012 mm | 1021 mm | 1042 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 729 mm | 748 mm | 767 mm | 786 mm | 812 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
Z1 Frame belongs to the Felt Z1 model. Felt released 10 frames variations of this model so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Race frames average price
According to our math, the average price for a trustworthy Race frame is 2445$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Race frame. To sum up, when you purchase your frame, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Felt Z1 Frame price was 2699$. Comparing the average cost of a Race frame to this one, you will see that Z1 Frame price is 10.39% more expensive.
Average weight for Race frames
If we make a quick analysis of the average weight of a Race frame, we get 1.41 kg (3.11 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Felt Z1 Frame it’s weighing 0.9 kg (1.98 lbs). At this weight, is much lighter than average. In short, the average Race frame weight is 56.67% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Z1 Frame components
Fork material
When it comes to the fork, this frame has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
