Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Endurance Road UHC Performance MMC carbon fiber w/ 3KP weave, machined threaded aluminum BB shell, external cable routing, forged aluminum dropouts & replaceable derailleur hanger
Suspension Fork
Felt UHC Performance fork, carbon fiber steerer tube, crown, blades, & forged aluminum dropouts, 461g
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano 105 SS short cage
Front Derailleur
Shimano 105 braze-on
Shift Levers
Shimano 105 STI
Cassette
Shimano 12-30T
Crank
Shimano 105 Compact, 50/34T; 51cm=170mm, 54cm-56cm=172.5mm, 58cm-61cm=175mm
Bottom Bracket
Shimano Hollowtech-II
Chain
Shimano 10 speed
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Felt premium sealed bearing forged aluminum w/ Felt quick release, 32H
Rear Hub
Felt premium sealed bearing forged Shimano 9/10 speed compatible freehub w/ Felt quick release, 32H
Rims
MAVIC CXP-22S aluminum w/ machined UB Control braking surface & wear indicator laced 32H front, 32H rear
Spokes
Swiss stainless steel laced radial front, 3x rear w/ aluminum nipples
Tires
Vittoria Zaffiro Pro Slick, 700c x 25c
Brakes
Brakes
Shimano R561 Super SLR dual pivot w/ cartridge brake pads
Brake Levers
Shimano 105 STI
Cockpit
Stem
Felt VA 6061 aluminum 3D forged +/-16° or +/-4° rise, Ø31.8mm bar clamp, custom eccentric variable angle adjustable shim, 173g; 51cm=80mm, 54cm=90mm, 56cm=100mm, 58cm=110mm, 61cm=110mm
Handlebar
Felt VS 6061 aluminum w/ Felt Variable Shape ergonomic drop, Ø31.8mm, 51cm=400mm, 54cm-56cm=420mm, 58cm-61cm=440mm
Grips
Felt gel tape w/ Felt logos
Headset
FSA 1.125"" integrated, w/ aluminum 25mm conical spacer, 2 X 10mm aluminum headset spacers, 1 x 5mm aluminum headset spacer, Felt VA aluminum top cap & 7075 anodized aluminum bolt
Seat
Saddle
Felt VS road saddle w/ nylon injection molded base, superlight multi-density foam, embossed cover, & hollow Cr-Mo rails
Seatpost
Felt UHC Performance carbon fiber post, forged aluminum head, lightweight twin side clamp bolt design, Ø27.2mm, 330mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.46 mm | 1.49 mm | 1.53 mm | 1.52 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 583.8 mm | 595 mm | 605.1 mm | 614.9 mm | 634.9 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 57 mm | 54 mm | 54 mm | 55 mm | 54 mm |
| Stack | 543 mm | 563 mm | 582 mm | 602 mm | 621 mm |
| Reach | 376 mm | 386 mm | 390 mm | 394 mm | 408 mm |
| Top Tube Length | 527 mm | 547 mm | 562 mm | 577 mm | 597 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 570 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm | 200 mm | 220 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 992 mm | 1003 mm | 1014 mm | 1023 mm | 1044 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 731 mm | 750 mm | 769 mm | 788 mm | 814 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview

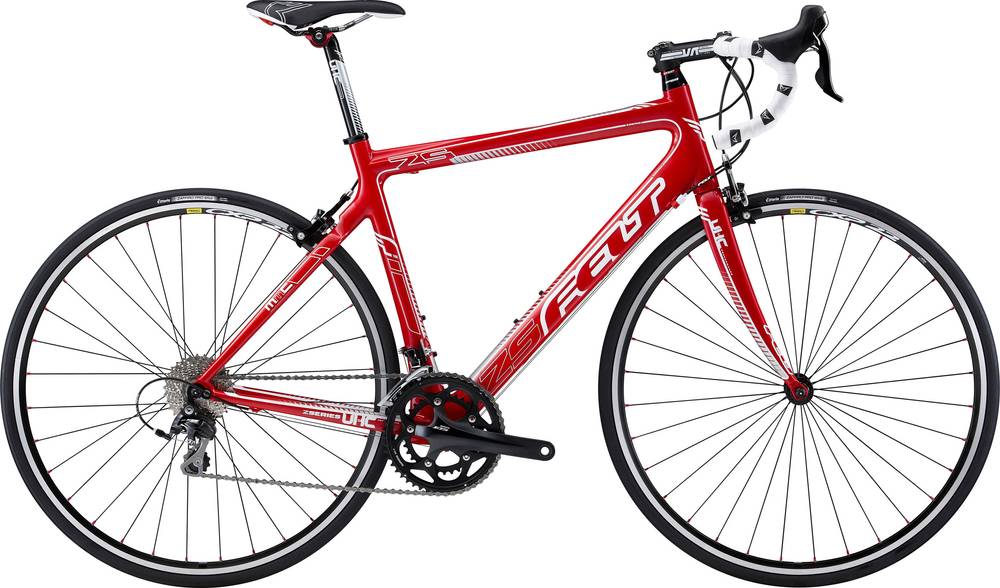

Z5 is a Felt Z5 model. Felt launched 7 bikes of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Race bikes
Our math shows that the average cost of a dependable Race bike is 3350$. However, you could also get a good Race bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2299$. Comparing the average cost of a Race bike to this one, you will see that Z5 price is 45.72% lower.
Race bikes average weight
Race bikes weigh an average of 6.82 kg (15.04 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Z5 weighs 8.25 kg (18.19 lbs) and is much heavier than the average. In short, the average Race bike weight is 20.97% lower than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the Z5 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Z5 has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
