Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Endurance Road UHC Performance carbon fiber, MMC w/ InsideOut construction, BB30, carbon fiber dropouts, replaceable rear derailleur hanger, electronic compatible internal cable routing
Suspension Fork
Felt Endurance Road UHC Performance carbon fiber blades & dropouts w/ ControlTaper 1.125" - 1.5" aluminum steer tube
Rear Shock
n/a
Drivetrain
Rear Derailleur
Shimano 105 11-speed long cage
Front Derailleur
Shimano 105 11-speed braze-on
Shift Levers
Shimano 105 11-speed STI
Cassette
Shimano 105 11-speed, 11-32T
Crank
Shimano 105 11-speed 48cm = 165mm 51cm = 170mm 54 - 56cm = 172.5mm 58 - 61cm = 175mm
Bottom Bracket
FSA BB30 w/ 24mm spindle reducers
Chain
Shimano 105 11-speed
Chain Guide
n/a
Pedals
n/a
Wheels
Front Hub
Felt R3, sealed bearing, 28H
Rear Hub
Felt R3, sealed cartridge bearing, 32H, 11-speed
Rims
Felt Road RSL3 (tubeless ready), 22mm width, 24mm depth
Spokes
2.0mm stainless steel
Tires
Felt All Weather, 700 x 25c
Brakes
Brakes
Dual pivot caliper
Brake Levers
Shimano 105 11-speed STI
Cockpit
Stem
Felt VariableAngle, +/- 8°/16° rise, Ø31.8mm 51cm = 80mm 54cm = 90mm 56cm = 100mm 58 - 61cm = 110mm
Handlebar
Felt SuperLite Road VariableShape, 71mm reach, 118mm drop, Ø31.8mm 51cm = 400mm 54cm = 420mm 56 - 61cm = 440mm
Grips
Felt SuperGel Tape
Headset
FSA NO.38/42, 1.125" - 1.5" sealed cartridge bearing w/ Felt VariableHeight Cone Spacers (20mm PC, 4.5mm aluminum), 1x 10mm + 2 x 5mm PC headset spacers, Felt top cap & aluminum bolt
Seat
Saddle
Prologo Kappa 2
Seatpost
Felt Endurance Road UHC Performance carbon fiber, Ø27.2mm, 300mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.46 mm | 1.49 mm | 1.53 mm | 1.52 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 583 mm | 595 mm | 605 mm | 615 mm | 635 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 57 mm | 54 mm | 54 mm | 55 mm | 55 mm |
| Stack | 543 mm | 563 mm | 582 mm | 602 mm | 621 mm |
| Reach | 375 mm | 386 mm | 390 mm | 394 mm | 408 mm |
| Top Tube Length | 527 mm | 547 mm | 562 mm | 577 mm | 597 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 570 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm | 200 mm | 220 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 992 mm | 1004 mm | 1014 mm | 1024 mm | 1044 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 700 | 729 mm | 749 mm | 769 mm | 797 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
About this model

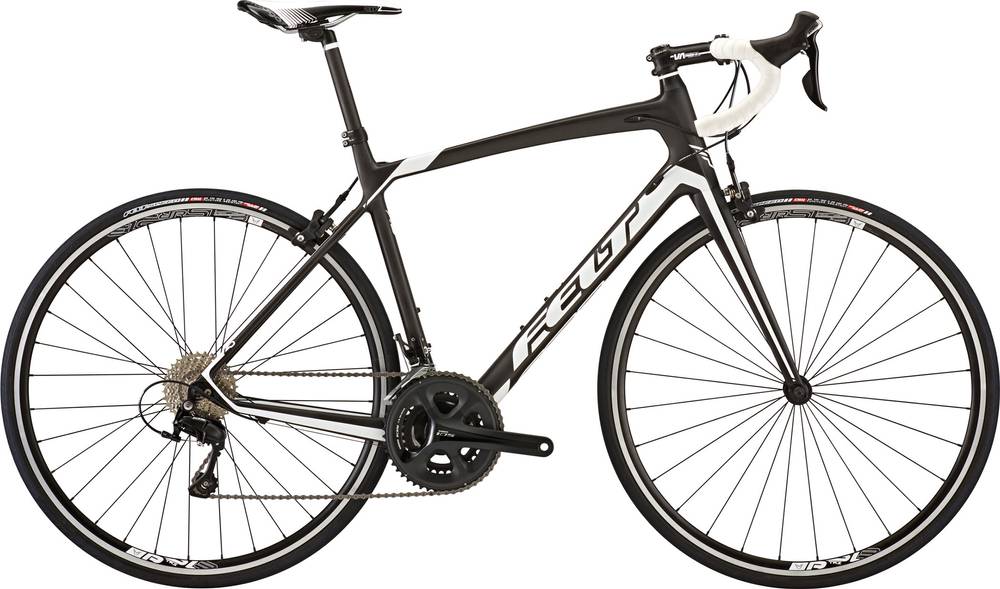

Z5 is a Felt Z5 model. Felt released 7 bikes variations of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Race bikes
If you want to purchase a solid Race bike, it is important to know that the average cost is 3350$. However, even if your budget is less than the average, you might still be able to get a top-quality Race bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2015 and its price was 1899$. Doing a quick comparison, we notice that Z5 price is 76.41% smaller than the average cost of a Race bike.
Race bikes average weight
Race bikes weigh an average of 6.82 kg (15.04 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much heavier than average, Z5 has a weight of 8.53 kg (18.81 lbs). In conclusion, the average Race bike weighs 25.07% less than Z5.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Z5 components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the Z5 bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Felt Z5 has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
