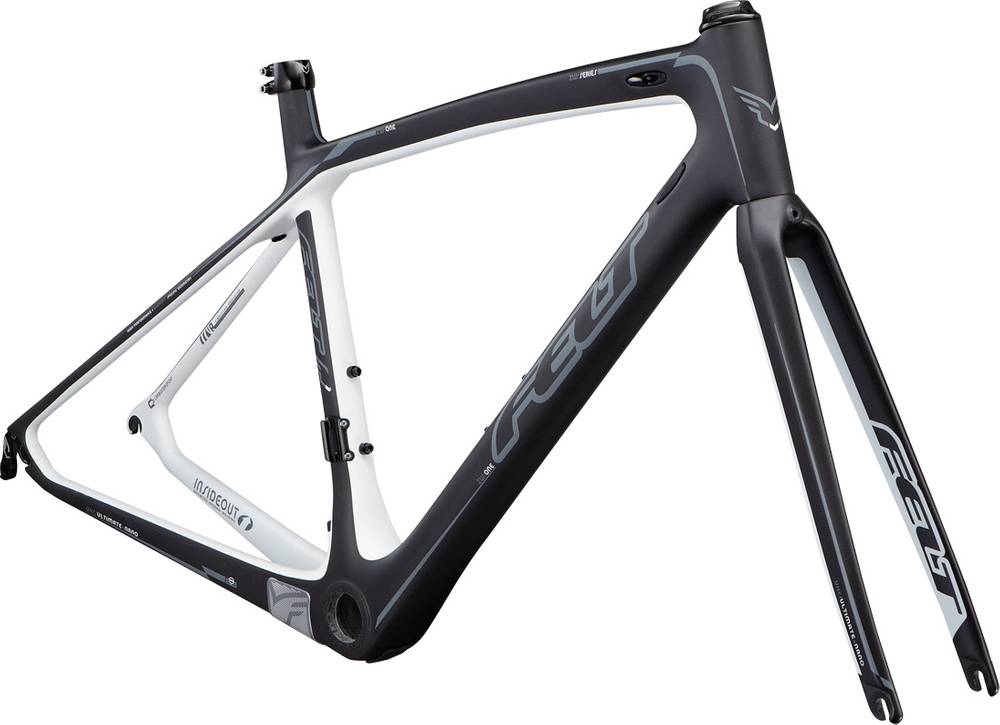

Felt ZW1 Frame Kit 2013
2013 Road
Estimate price |
2,799$
Weight | 0.9 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Felt Fit Woman Road UHC Ultimate + Nano MMC Carbon Fiber frame w/ 1KP weave, InsideOut internal molding process, Carbon Fiber BB30 shell, internal electric or mechanical cable routing, Carbon Fiber dropouts & 7075 CNC machined aluminum replaceable derailleur hanger
Suspension Fork
Felt Fit Woman Road UHC Ultimate + Nano Carbon Fiber monocoque fork; 100% Carbon Fiber steerer tube, crown, blades, & dropouts
Drivetrain
Bottom Bracket
BB30, press-fit
Cockpit
Headset
FSA Integrated, w/ UD Carbon Fiber 15mm cone spacer, 2 x 10mm UD Carbon Fiber headset spacer, 2 x 5mm UD Carbon Fiber headset spacer, Felt compression device, Carbon Fiber top cap & 7075 anodized aluminum bolt
Seat
Seatpost
n/a
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Petite | SM | MD | Tall |
|---|---|---|---|---|
| Stack Reach Ratio | 1.31 mm | 1.38 mm | 1.45 mm | 1.47 mm |
| Bottom Bracket Height | 291 mm | 266 mm | 266 mm | 266 mm |
| Front Center | 561 mm | 584 mm | 584 mm | 595 mm |
| Rake | 40 mm | 50 mm | 50 mm | 50 mm |
| Trail | 71 mm | 60 mm | 57 mm | 54 mm |
| Stack | 480 mm | 516 mm | 537 mm | 557 mm |
| Reach | 366 mm | 373 mm | 370 mm | 380 mm |
| Top Tube Length | 493 mm | 511 mm | 521 mm | 541 mm |
| Seat Tube Angle | 75.5 ° | 75.3 ° | 74.5 ° | 74 ° |
| Seat Tube Length | 430 mm | 450 mm | 470 mm | 500 mm |
| Head Tube Angle | 71.5 ° | 71.5 ° | 72 ° | 72.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 160 mm |
| Chainstay Length | 396 mm | 413 mm | 413 mm | 413 mm |
| Wheelbase | 952 mm | 987 mm | 987 mm | 998 mm |
| Bottom Bracket Drop | 45 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
ZW1 Frame Kit completes the Felt Zw1 model. There are 8 frames that carry this model name.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Race frames
According to our calculations, the average cost of a Race frame that is reliable is 2445$. However, even if your budget is less than the average, you might still be able to get a top-quality Race frame. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
At the moment of the release date, Felt ZW1 Frame Kit price was 2799$. Comparing this to the average Race frame price, we see that the price is 14.48% higher.
Average weight for Race frames
Race frames weigh an average of 1.41 kg (3.11 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
ZW1 Frame Kit weighs 0.9 kg (1.98 lbs) and is much lighter than the average. In other words, this model is 56.67% lighter than the average Race frame.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
When it comes to the fork, this frame has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
