Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork DVO Diamond
-
Groupset NX Eagle, SRAM -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari Racing Design Alloy, 130mm travel, full sealed cartridge bearings, replaceable derailleur hanger, tapered headtube, water bottle bosses
Suspension Fork
DVO Diamond D3, 140mm travel, 1.5 inch tapered steer tube, 110mmx15mm boost thru axle, black
Rear Shock
Custom tuned X-Fusion O2 Pro RL, lockout, rebound adjust
Drivetrain
Rear Derailleur
SRAM NX Eagle 12-Speed
Front Derailleur
N/A
Shift Levers
SRAM NX Eagle Trigger 12-Speed
Cassette
SRAM PG-1230 NX Eagle, 11-50t, 12-speed
Crank
SRAM 1000 Eagle DUB
Bottom Bracket
SRAM DUB, English Thread
Chain
SRAM NX Eagle 12-speed
Pedals
Available Separately
Wheels
Front Hub
Bear Pawls Sealed Bearing Front: Boost 110x15 thru axle, Rear: Boost 148x12mm thru Axle, HG
Rear Hub
Bear Pawls Sealed Bearing Front: Boost 110x15 thru axle, Rear: Boost 148x12mm thru Axle, HG
Rims
WTB i29 TCS 2.0 29er, Tubeless Ready, 32 Hole
Spokes
1.8mm (15g) black stainless, brass nipples
Tires
Front: Maxxis Minion DHF 29x2.5 WT Exo/Tubeless Ready 60 TPI, Rear: Maxxis Aggressor 29x2.5 Exo/Tubeless Ready 60 TPI
Brakes
Brakes
SRAM Level Hydraulic Disc, SRAM Centerline Rotors, 180mm/160mm F/R
Cockpit
Stem
Fezzari FRD Charger35, alloy, 35mm clamp, sizes vary depending on custom fit
Handlebar
Fezzari FRD Charger35, alloy, 35mm clamp, 780mm wide, 25mm riser, 9 degree back-sweep, 5 degree upsweep
Headset
FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered
Seat
Saddle
WTB Volt Sport
Seatpost
Fezzari alloy, blast black, 31.6 x 350-400 (based on custom setup), Dropper seatpost available after adding bike to cart
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.476 mm | 1.402 mm | 1.326 mm | 1.274 mm |
| Bottom Bracket Height | 342.9 mm | 342.9 mm | 342.9 mm | 342.9 mm |
| Front Center | 703 mm | 730 mm | 760 mm | 790 mm |
| Rake | 39 mm | 39 mm | 39 mm | 39 mm |
| Trail | 121 mm | 121 mm | 121 mm | 121 mm |
| Stack | 605 mm | 610 mm | 614 mm | 623 mm |
| Reach | 410 mm | 435 mm | 463 mm | 489 mm |
| Top Tube Length | 564 mm | 590 mm | 619 mm | 648 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 420 mm | 457 mm | 495 mm |
| Head Tube Angle | 66.4 ° | 66.4 ° | 66.4 ° | 66.4 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1135 mm | 1162 mm | 1192 mm | 1222 mm |
| Bottom Bracket Drop | 34 mm | 34 mm | 34 mm | 34 mm |
| Standover Height | 749 mm | 754 mm | 767 mm | 767 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

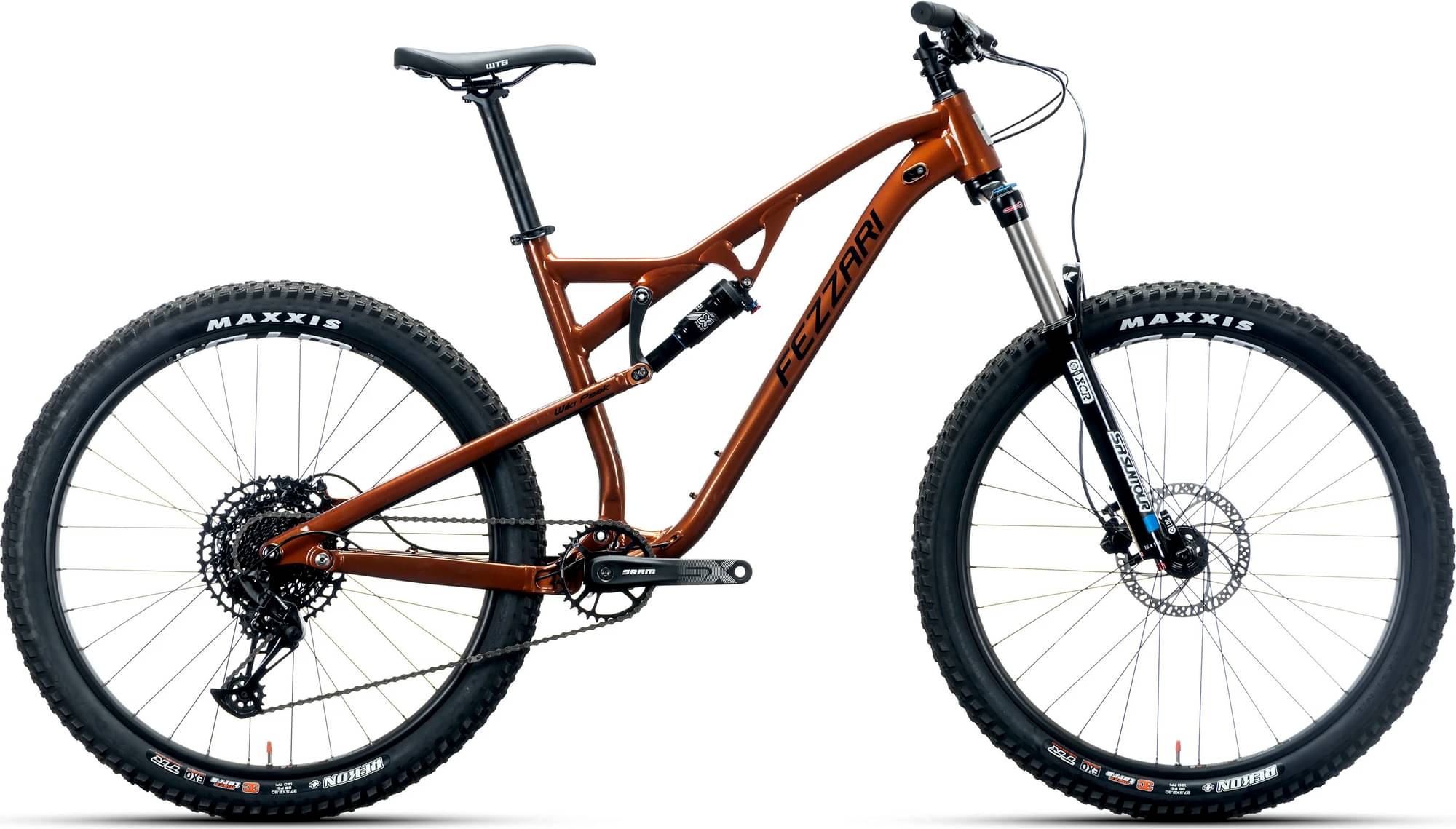

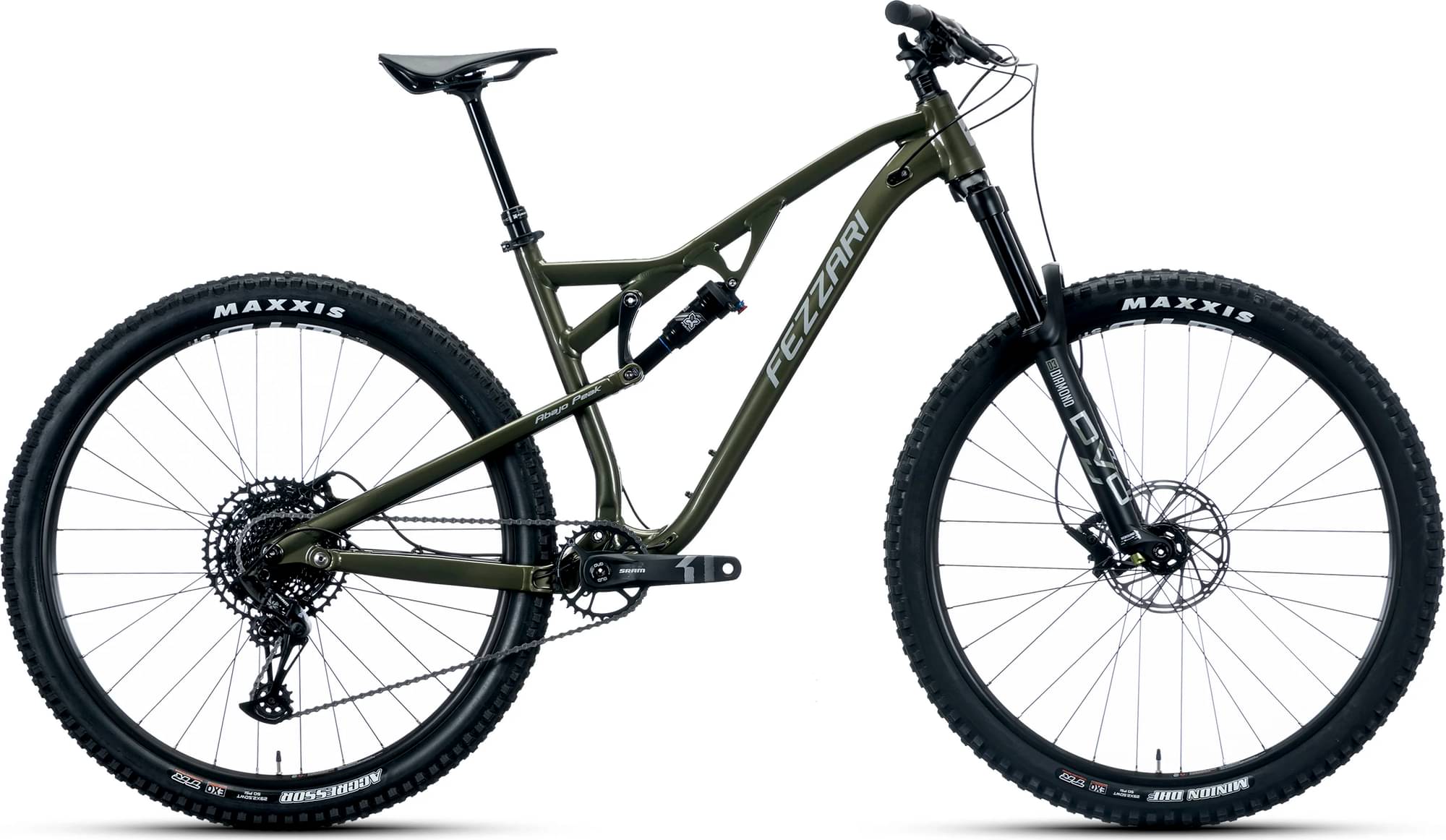

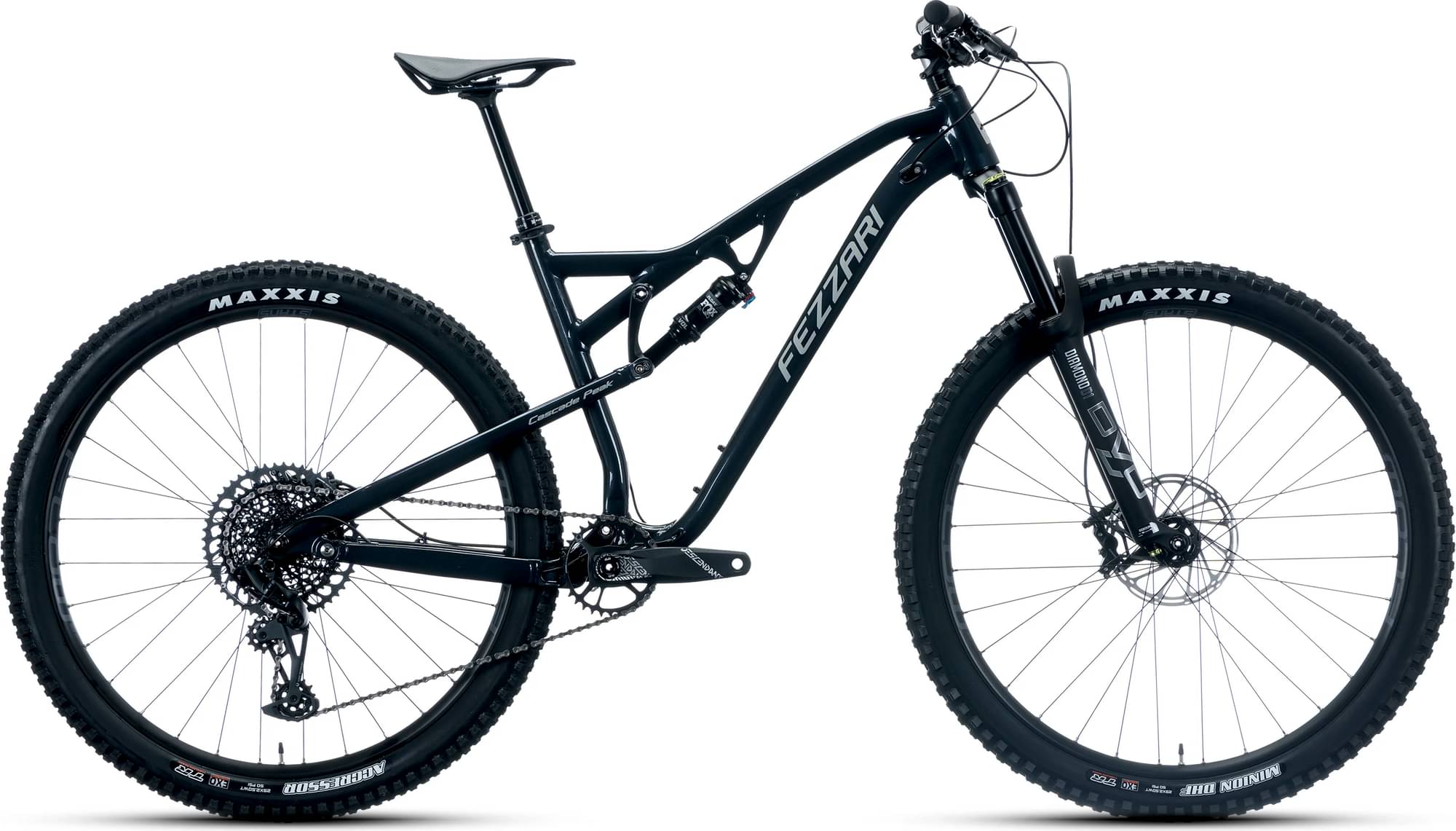

Abajo is a Fezzari Abajo model. 7 bikes variations carry this model name so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
According to our math, the average price for a trustworthy Trail bike is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Fezzari Abajo price was 2299$. If we compare this with the average Trail bike cost we notice that the price is 20.14% smaller.
Overview of components
Fork
This bike has the DVO Diamond fork installed. The fork’s travel is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Fezzari Abajo bike has the Custom tuned X-Fusion O2 Pro RL model installed, and has a travel of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When leaving the production line, the Abajo model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fezzari Abajo is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Fezzari Abajo bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
