Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork X Fusion
-
Groupset NX Eagle, SRAM -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari Racing Design AT529, 130mm travel, full sealed cartridge bearings, replaceable derailleur hanger, tapered headtube, water bottle bosses
Suspension Fork
X-Fusion McQueen RCP, 27.5"+ to 3.25" tire, 140mm travel air spring, Roughcut RCP damper w/ 3 position platform, independent low speed compression adjust, rebound adjust, Boost 110x15mm Thru Axle, 34mm hard ano aluminum stanchion, tapered steerer
Rear Shock
Custom tuned X-Fusion O2 Pro RL, lockout, rebound adjust
Drivetrain
Rear Derailleur
SRAM NX Eagle 1x12
Front Derailleur
N/A
Shift Levers
SRAM NX Eagle 1x12
Cassette
SRAM NX Eagle PG-1230
Crank
SRAM 1000 Eagle DUB
Bottom Bracket
SRAM DUB for English Thread
Chain
SRAM NX Eagle 12-speed
Pedals
Available Separately
Wheels
Front Hub
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls Sealed Bearing Disc Boost 148x12mm
Rear Hub
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls Sealed Bearing Disc Boost 148x12mm
Rims
WTB I29 TCS 2.0 29er, Tubeless Ready, 32 Hole (27.5 plus Option Available During Checkout)
Spokes
1.8mm (15g) black stainless steel, brass nipples
Tires
Front: Maxxis Minion DHF 29x2.5 WT Exo/Tubeless Ready 60 TPI, Rear: Maxxis Aggressor 29x2.5 Exo/Tubeless Ready 60 TPI
Brakes
Brakes
SRAM Level Hydraulic Disc, tooled reach adjust, SRAM Centerline Rotors, 180mm/160mm F/R
Brake Levers
SRAM Level Alloy
Cockpit
Stem
Fezzari FRD Charger35, alloy, 35mm clamp, sizes vary depending on custom fit
Handlebar
Fezzari Racing Design Alloy, 35mm 780mm,customized sizing through 23-Point Custom Setup
Headset
FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered
Seat
Saddle
WTB Volt Comp
Seatpost
Fezzari Alloy, Dual Bolt Clamp, 31.6 x 350-400 (based on custom setup), Dropper seatpost available after adding bike to cart
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.476 mm | 1.402 mm | 1.326 mm | 1.274 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 704 mm | 731 mm | 761 mm | 791 mm |
| Rake | 41 mm | 41 mm | 41 mm | 42 mm |
| Trail | 115 mm | 115 mm | 115 mm | 114 mm |
| Stack | 605 mm | 610 mm | 614 mm | 623 mm |
| Reach | 410 mm | 435 mm | 463 mm | 489 mm |
| Top Tube Length | 561 mm | 588 mm | 616 mm | 645 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 457 mm | 495 mm |
| Head Tube Angle | 66.9 ° | 66.9 ° | 66.9 ° | 66.9 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1135 mm | 1162 mm | 1192 mm | 1222 mm |
| Bottom Bracket Drop | 22 mm | 22 mm | 22 mm | 22 mm |
| Standover Height | 742 mm | 747 mm | 765 mm | 772 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

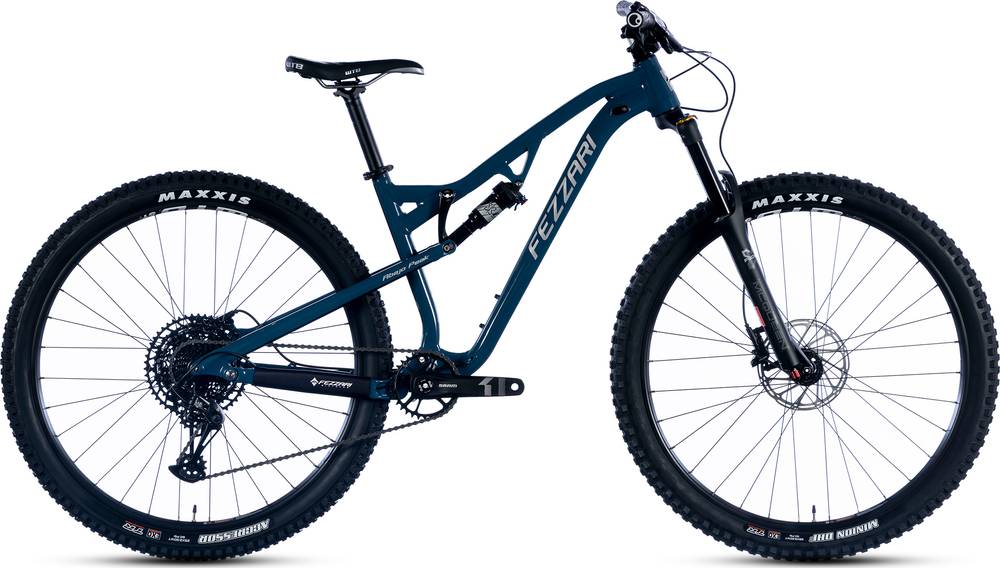

Abajo Peak is a Fezzari Abajo model. 7 bikes variations carry this model name so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our math, the average price for a trustworthy Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1999$. Doing a quick comparison, we notice that Abajo Peak price is 38.17% smaller than the average cost of a Trail bike.
Overview of components
Fork
The X Fusion is included from the factory. It has a travel distance of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
Abajo Peak has an aluminum fork, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Rear Shock
The Abajo Peak has a rear shock with a travel of 130mm. The model Custom tuned X-Fusion O2 Pro RL is the one installed in this bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Abajo Peak model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Abajo Peak comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Fezzari Abajo Peak bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
