Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork X Fusion
-
Groupset NX Eagle, SRAM -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari Racing Design AT529, 130mm travel, full sealed cartridge bearings, replaceable derailleur hanger, tapered headtube, water bottle bosses
Suspension Fork
X-Fusion McQueen RCP, 27.5"+ to 3.25" tire, 140mm travel air spring, Roughcut RCP damper w/ 3 position platform, independent low speed compression adjust, rebound adjust, Boost 110x15mm Thru Axle, 34mm hard ano aluminum stanchion, tapered steerer
Rear Shock
Custom tuned X-Fusion O2 Pro RL, lockout, rebound adjust
Drivetrain
Rear Derailleur
SRAM NX Eagle 1x12
Front Derailleur
N/A
Shift Levers
SRAM NX Eagle 1x12
Cassette
SRAM NX Eagle PG-1230
Crank
SRAM 1000 Eagle DUB
Bottom Bracket
SRAM DUB for English Thread
Chain
SRAM NX Eagle 12-speed
Pedals
Available Separately
Wheels
Front Hub
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls Sealed Bearing Disc Boost 148x12mm
Rear Hub
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls Sealed Bearing Disc Boost 148x12mm
Rims
WTB I29 TCS 2.0 29er, Tubeless Ready, 32 Hole
Spokes
1.8mm (15g) black stainless steel, brass nipples
Tires
Front: Maxxis Minion DHF 29x2.5 WT Exo/Tubeless Ready 60 TPI, Rear: Maxxis Aggressor 29x2.5 Exo/Tubeless Ready 60 TPI
Brakes
Brakes
SRAM Level Hydraulic Disc, tooled reach adjust, SRAM Centerline Rotors, 180mm/160mm F/R
Brake Levers
SRAM Level Alloy
Cockpit
Stem
Fezzari FRD Charger35, alloy, 35mm clamp, sizes vary depending on custom fit
Handlebar
Fezzari Racing Design Alloy, 35mm 780mm,customized sizing through 23-Point Custom Setup
Headset
FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered
Seat
Saddle
Selle Italia Model X
Seatpost
Fezzari Alloy, Dual Bolt Clamp, 31.6 x 350-400 (based on custom setup), Dropper seatpost available after adding bike to cart
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.476 mm | 1.402 mm | 1.326 mm | 1.274 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 704 mm | 731 mm | 761 mm | 791 mm |
| Rake | 41 mm | 41 mm | 41 mm | 42 mm |
| Trail | 115 mm | 115 mm | 115 mm | 114 mm |
| Stack | 605 mm | 610 mm | 614 mm | 623 mm |
| Reach | 410 mm | 435 mm | 463 mm | 489 mm |
| Top Tube Length | 561 mm | 588 mm | 616 mm | 645 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 457 mm | 495 mm |
| Head Tube Angle | 66.9 ° | 66.9 ° | 66.9 ° | 66.9 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1135 mm | 1162 mm | 1192 mm | 1222 mm |
| Bottom Bracket Drop | 22 mm | 22 mm | 22 mm | 22 mm |
| Standover Height | 742 mm | 747 mm | 765 mm | 772 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

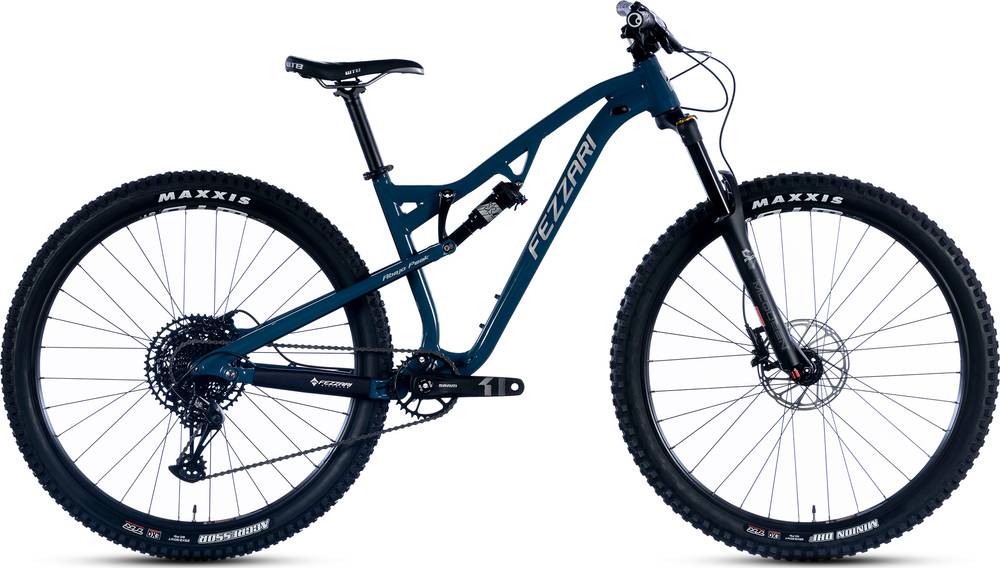

Model Overview
Abajo Peak is part of the Fezzari Abajo model. Fezzari released 7 bikes variations of this model so far.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail bikes
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
When Fezzari released this model in 2021, its price was 2199$. Comparing this to the average Trail bike price, we see that the price is 25.6% lower.
Abajo Peak components
Fork
The Abajo Peak comes factory-installed with the X Fusion fork. This has a travel range of 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
When it comes to the fork, this bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Rear Shock
From the factory, it comes with the Custom tuned X-Fusion O2 Pro RL rear shock model, which has a travel of 130mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Fezzari Abajo Peak 2021, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Abajo Peak has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
