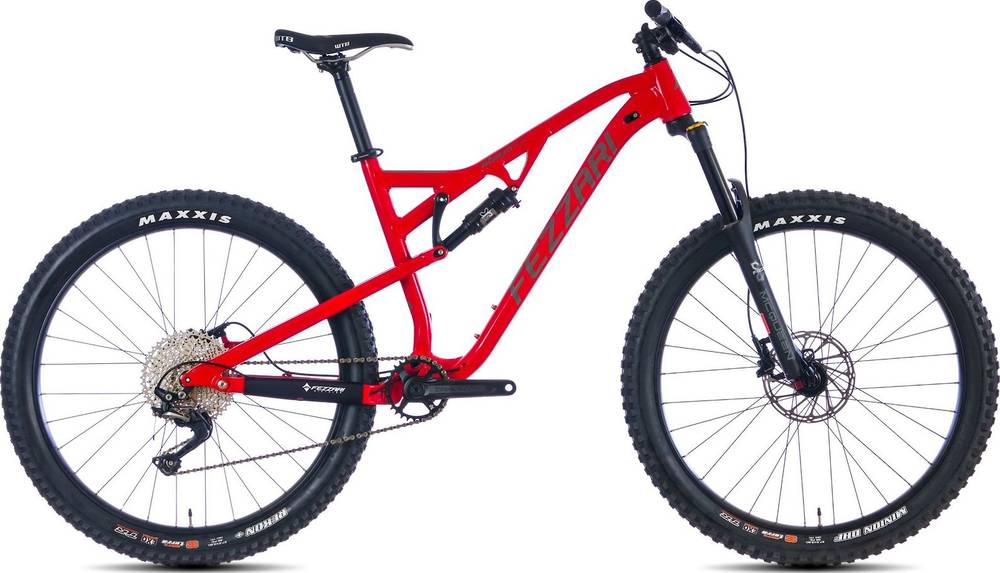

Fezzari Abajo Peak 27.5 Plus 2018
2018 Mountain
Estimate price |
1,999$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 130mm -
Fork X Fusion
-
Groupset SLX, Race Face -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
X-Fusion McQueen RCP, air spring, Boost, low speed compression, rebound adjust, and 27.5"+ to 3.25" tire clearance
Rear Shock
X-Fusion O2 Pro RL, lockout, rebound adjust, and custom tuned
Drivetrain
Rear Derailleur
Shimano SLX M7000, 11-speed, Shadow+
Front Derailleur
N/A
Shift Levers
Shimano SLX M7000, 11-speed, Rapidfire Plus, Vivid index shifting, 2-way release
Cassette
SunRace CSMS8, 11-speed, 11-46 tooth
Crank
Race Face Aeffect
Bottom Bracket
Race Face, English thread
Chain
KMC X11 NP/BK
Chain Guide
N/A
Pedals
Available separately
Wheels
Front Hub
Front: Formula Disc, Boost 15mm x 110mm, Rear: Formula Disc, Boost 12mm x 148mm
Rear Hub
Front: Formula Disc, Boost 15mm x 110mm, Rear: Formula Disc, Boost 12mm x 148mm
Rims
WTB Scraper i35 27.5+, 584x35c, TCS tubeless ready, 32 hole
Spokes
1.8mm (15g) black stainless steel, brass nipples
Tires
Front: Maxxis Minion DHF, 2.8", 3C Exo, Maxx Terra, tubeless ready, 120 TPI, Rear: Maxxis Rekon, 2.8", 3C Exo, Maxx Terra, tubeless ready, 120 TPI, Tubes: Maxxis 27.5" x 2.8"/3.0"
Brakes
Brakes
SRAM Level with 180mm front/160mm rear SRAM Centerline rotors, tooled reach adjust
Brake Levers
SRAM Level Alloy
Cockpit
Stem
Fezzari FRD Charger 35, alloy, 35mm clamp, sizes vary based on custom fit
Handlebar
Fezzari FRD Charger 35, alloy, 35mm clamp, sizes vary based on custom fit
Grips
Fezzari Lock-on
Headset
FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing
Seat
Saddle
WTB Volt Comp
Seatpost
Fezzari Alloy, 350mm-400mm (based on custom setup)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.476 mm | 1.402 mm | 1.326 mm | 1.274 mm |
| Bottom Bracket Height | 342.9 mm | 342.9 mm | 342.9 mm | 342.9 mm |
| Stack | 605 mm | 610 mm | 614 mm | 623 mm |
| Reach | 410 mm | 435 mm | 463 mm | 489 mm |
| Top Tube Length | 561 mm | 588 mm | 616 mm | 645 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 457 mm | 495 mm |
| Head Tube Angle | 66.9 ° | 66.9 ° | 66.9 ° | 66.9 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1135 mm | 1162 mm | 1192 mm | 1222 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm |
| Standover Height | 741 mm | 746 mm | 764 mm | 772 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Abajo Peak 27.5 Plus is a Fezzari Abajo model. There are 7 bikes that carry this model name.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Fezzari Abajo Peak 27.5 Plus price was 1999$. In conclusion, this bike price is 38.17% smaller than the price of the average Trail bike.
Overview of components
Fork
The Abajo Peak 27.5 Plus comes factory-installed with the X Fusion fork. This has a travel range of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Abajo Peak 27.5 Plus has a rear shock with a travel of 130mm. The model X-Fusion O2 Pro RL is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
The Abajo Peak 27.5 Plus 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Fezzari Abajo Peak 27.5 Plus is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
