Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 140mm -
Travel Rear 130mm -
Fork DVO Diamond
-
Groupset GX Eagle, Truvativ Descendant -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari Racing Design AT529, 130mm travel, full sealed cartridge bearings, replaceable derailleur hanger, tapered headtube, water bottle bosses
Suspension Fork
DVO Diamond D1, 140mm travel, 1.5 inch tapered steer tube, 110mmx15mm boost thru axle, black
Rear Shock
2021 Fox Float DPS, Performance Series, 3 Position Lever with Evol SV aircan, matte black
Drivetrain
Rear Derailleur
SRAM GX Eagle 1x12, X-HORIZON, 12-speed, Type-3 roller bearing clutch, long cage
Front Derailleur
N/A
Shift Levers
SRAM GX Eagle Trigger 12-speed
Cassette
SRAM XG-1275 GX Eagle, 10-52t, 12-speed
Crank
Truvativ Descendant DUB 6K Aluminum Eagle Crankset
Bottom Bracket
SRAM DUB, English Thread
Chain
SRAM GX Eagle 12-speed
Pedals
Available Separately
Wheels
Front Hub
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls Sealed Bearing Disc Boost 148x12mm, XD Driver
Rear Hub
Front: Bear Pawls Sealed Bearing Disc Boost 110x15mm, Rear: Bear Pawls Sealed Bearing Disc Boost 148x12mm, XD Driver
Rims
Stans Flow 29er S1, Tubeless Ready, 32 hole or WTB i35 27.5+
Spokes
1.8mm (15g) black stainless, brass nipples
Tires
Maxxis Minion DHF 29x2.5WT Exo/Tubeless Ready 60 TPI, Rear: Maxxis Aggressor 29x2.5 Exo/Tubeless Ready 60TPI
Brakes
Brakes
SRAM G2 R Hydraulic Disc, SRAM Centerline Rotors, 180mm/160mm F/R
Brake Levers
SRAM G2 R
Cockpit
Stem
Fezzari FRD Charger35, alloy, 35mm clamp, sizes vary depending on custom fit
Handlebar
Fezzari FRD Charger35, alloy, 35mm clamp, 760mm wide, 15mm riser, 9 degree bend
Headset
FSA Orbit 1.5 ZS No.57E, internal sealed cartridge bearing, tapered
Seat
Saddle
WTB Volt Comp
Seatpost
X-Fusion Manic Internal Dropper with Remote (Travel adjusted with 23-point customs fit after checkout)
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.476 mm | 1.402 mm | 1.326 mm | 1.274 mm |
| Bottom Bracket Height | 343 mm | 343 mm | 343 mm | 343 mm |
| Front Center | 704 mm | 731 mm | 761 mm | 791 mm |
| Rake | 41 mm | 41 mm | 41 mm | 42 mm |
| Trail | 115 mm | 115 mm | 115 mm | 114 mm |
| Stack | 605 mm | 610 mm | 614 mm | 623 mm |
| Reach | 410 mm | 435 mm | 463 mm | 489 mm |
| Top Tube Length | 561 mm | 588 mm | 616 mm | 645 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 457 mm | 495 mm |
| Head Tube Angle | 66.9 ° | 66.9 ° | 66.9 ° | 66.9 ° |
| Head Tube Length | 100 mm | 105 mm | 110 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1135 mm | 1162 mm | 1192 mm | 1222 mm |
| Bottom Bracket Drop | 22 mm | 22 mm | 22 mm | 22 mm |
| Standover Height | 742 mm | 747 mm | 765 mm | 772 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

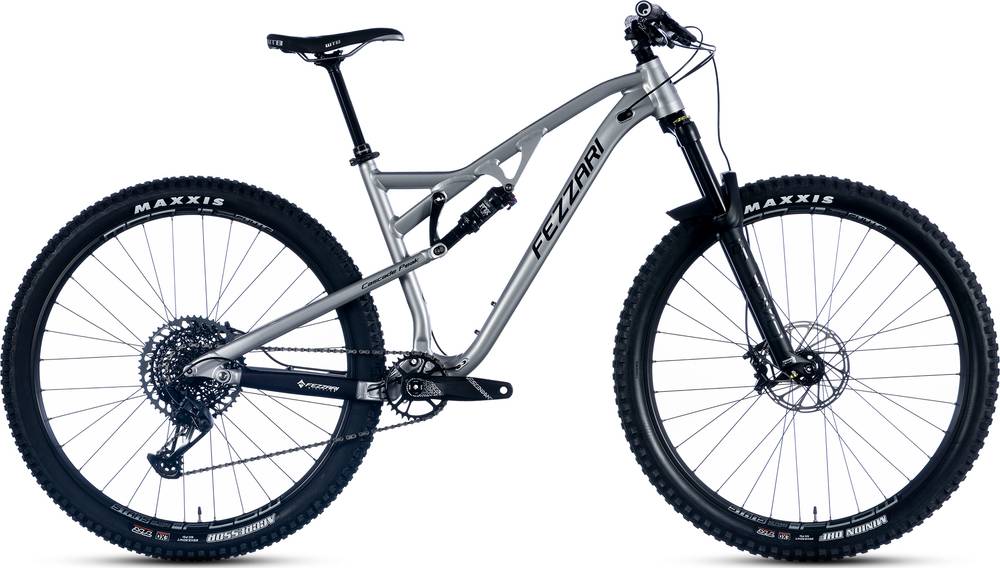

Cascade Peak is a Fezzari Cascade model. Fezzari released 7 bikes variations of this model so far.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
Our math shows that the average cost of a dependable Trail bike is 2762$. However, this doesn’t mean that if you spend less money on a Trail bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2020 and its price was 2799$. In conclusion, this bike price is 1.34% more expensive than the price of the average Trail bike.
Overview of components
Fork
The Cascade Peak comes factory-installed with the DVO Diamond fork. This has a travel range of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this bike is 2021 Fox Float DPS, with a travel distance of 130mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Cascade Peak bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Fezzari Cascade Peak has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. Therefore, climbing or descending will be a breeze.
