Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora, FSA -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fezzari DFA1 compact design, double-butted, heat-treated, light-weight aluminum, *Note: Smaller frames do not support second set of bottle cage bosses
Suspension Fork
Fezzari FD2 Carbon Fork
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Sora R3000 GS, 9 speed
Front Derailleur
Shimano Sora R3000, 34.9 clamp, 2 speed, new longer actuation arm for smoother easier shifting
Shift Levers
Shimano Sora R3000, 2x9 speed Rapid-Fire Plus with optical gear display
Cassette
Sunrace CSM90, 9 speed, 11x34t, extra wide range for easier hill climbing without sacrificing high gear
Crank
FSA Vero Pro Adventure, anodized black
Bottom Bracket
FSA BB7420, JIS, heavy duty
Chain
KMC X9 NP/GY, 9 speed
Pedals
N/A
Wheels
Front Hub
Alex, 32 hole, Front 12x100 thru axle, Rear 10x135 QR
Rear Hub
Alex, 32 hole, Front 12x100 thru axle, Rear 10x135 QR
Rims
WTB ST i21 TCS 2.0, 32 hole, Disc only, Tubeless ready
Spokes
2.0mm (14g) stainless
Tires
Maxxis Re-Fuse, 700x40c Tubeless ready, Kevlar puncture protection
Brakes
Brakes
Shimano BR-UR300 Hydraulic Disc Brake
Brake Levers
Shimano BL-MT200, reach adjust
Cockpit
Stem
Fezzari 3D forged alloy, 31.8mm 4-bolt bar clamp (rise and length customizable through 23-Point Custom Setup)
Handlebar
Fezzari alloy, double butted 31.8mm, blast black (width customizable through 23-Point Custom Setup)
Headset
FSA Orbit 1.5 ZS NO.57E
Seat
Saddle
WTB Volt Sport
Seatpost
Fezzari Racing Design XrT Dual Bolt Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.5 mm | 1.52 mm | 1.49 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 281 mm | 281 mm |
| Front Center | 619 mm | 645 mm | 667 mm | 687 mm |
| Rake | 48 mm | 48 mm | 48 mm | 48 mm |
| Trail | 70 mm | 70 mm | 68 mm | 70 mm |
| Stack | 589 mm | 608 mm | 632 mm | 646 mm |
| Reach | 385 mm | 405 mm | 417 mm | 434 mm |
| Top Tube Length | 549 mm | 579 mm | 599 mm | 619 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm | 600 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 165 mm | 185 mm | 210 mm | 225 mm |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1044 mm | 1070 mm | 1092 mm | 1112 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm |
| Standover Height | 767 mm | 789 mm | 794 mm | 801 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

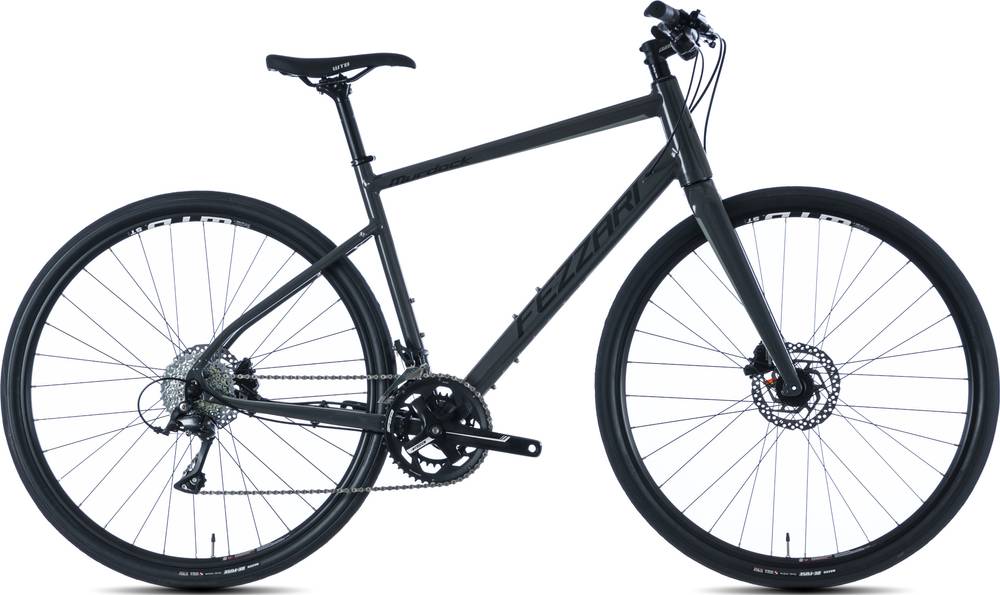

Model Overview
Murdock completes the Fezzari Murdock model. Fezzari released 8 bikes variations of this model so far.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter bikes
According to our math, the average price for a trustworthy Commuter bike is 762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Fezzari released this model in 2019, its price was 999$. Comparing this to the average Commuter bike price, we see that the price is 31.1% higher.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Fezzari Murdock 2019, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Fezzari Murdock has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
