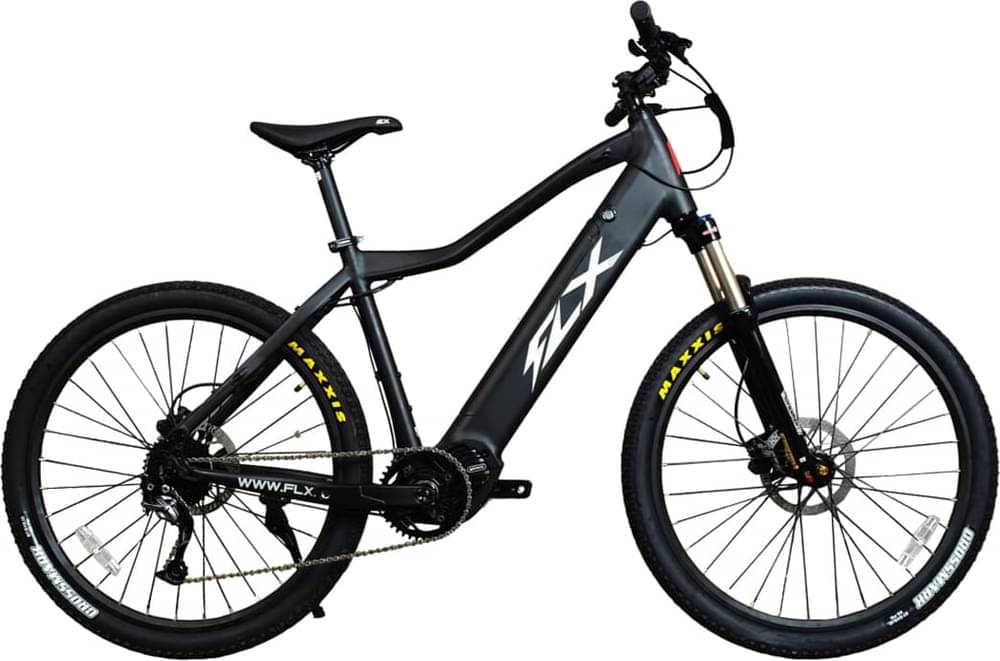

FLX Trail 2019
2019 E-bike
Estimate price |
2,699$
Weight | 20.18 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Travel Front 120mm -
Fork SunTour XCR
-
Groupset Alivio -
Suspension Hardtail -
Motor Bafang 500W 120Nm hub-drive -
Battery Weight: 5.5 lbs (2.49 kg), Brand: Panasonic, Voltage: 48 volts, Amp Hours: 10.4 ah, Watt Hours: 500 wh, Chemistry: Lithium ION -
Drivetrain 1 × 9 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum Alloy
Suspension Fork
SR Suntour XCR Spring Suspension with 120mm Travel, 1-1/8" x 1-1/2" Tapered Steerer, Lockout, Preload Adjust, Quick Release M15 x 100mm Thru Axle
Drivetrain
Shift Levers
Shimano Alivio Trigger Shifters on Right
Cassette
9 Speed 1 x 9 Shimano Alivio Derailleur, 11-34 Tooth Freewheel
Crank
Aluminum Alloy, 170mm Length, 44 Tooth Chainring
Pedals
Wellgo Aluminum Alloy Platform with Reflectors, CrMo Axle, Black
Wheels
Rims
Aluminum Alloy, Double Walled, 25.6mm Width, 32 Hole, Reinforcement Eyelets
Spokes
Stainless Steel, 13 Gauge, Black with Nipples
Tires
Maxxis Crossmark, 27.5" x 2.1" (54-584)
Cockpit
Stem
Aluminum Alloy, 90mm Length, Two 10mm Risers, 31.8mm Clamp Diameter
Handlebar
Aluminum Alloy, 700mm Width, Low-Rise
Grips
Velo Flat Rubber with Lock Rings
Headset
Threadless, Internal Cups, Tapered, Sealed Bearings
Seat
Saddle
FLX Branded Velo
Seatpost
Promax, Aluminum Alloy
Motor & Battery
Motor
Weight: 8.15 lbs (3.69 kg), Brand: Bafang, Type: Mid-Mounted Geared Motor, Nominal Output: 500 watts, Peak Output: 850 watts, Torque: 120 Newton meters
Battery
Weight: 5.5 lbs (2.49 kg), Brand: Panasonic, Voltage: 48 volts, Amp Hours: 10.4 ah, Watt Hours: 500 wh, Chemistry: Lithium ION
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 19" |
|---|---|
| Wheels | 650 |
| Rider Min Height | 120 cm |
Model Overview
Trail completes the Flx E Trail model. FLX launched 1 e-bike of this model so far.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When FLX released this model in 2019, its price was 2699$. Doing a quick comparison, we notice that Trail price is 5.06% higher than the average cost of a Commuter e-bike.
Average weight for Commuter e-bikes
The average weight for Commuter e-bikes is 25.2 kg (55.56 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much lighter than average, Trail has a weight of 20.18 kg (44.49 lbs). In other words, this model is 24.88% lighter than the average Commuter e-bike.
Overview of components
Fork
This e-bike has the SunTour XCR fork installed. The fork’s travel is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the Trail model has aluminum wheels. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. FLX Trail is equipped with Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
