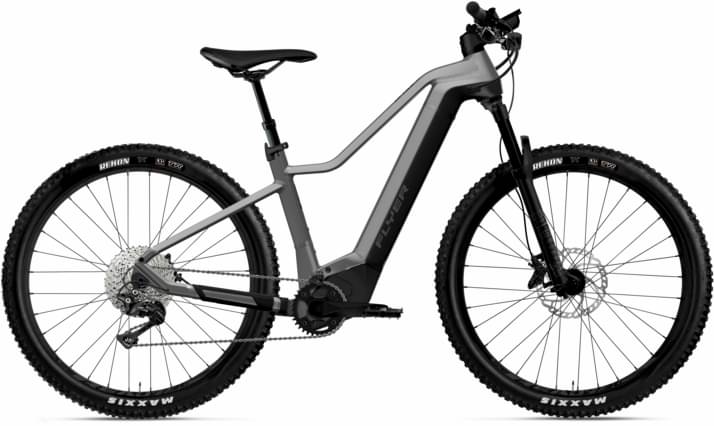

flyer 22 Uproc2 6.30 Gents 2024
2024 E-bike
Estimate price |
3,647$
Weight | 27 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 120mm -
Fork RockShox 35 Gold RL
-
Suspension Hardtail -
Motor Panasonic mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
RockShox 35 Gold, 120 mm travel, 15 x 110 mm boost
Drivetrain
Pedals
VP 527
Wheels
Front Hub
Formula DC-511, 32h
Rear Hub
Formula EHL-148M, 32h
Rims
Alexrims MD30
Tires
Maxxis Rekon EXO+ TR, 29 x 2.60", 65-622
Brakes
Brakes
Shimano MT520
Cockpit
Stem
FLYER MonkeyLink, 35 × 50 mm, 0°
Handlebar
FLYER Alloy, 7°, 25 mm, 740 mm
Seat
Saddle
Selle Royal Vivo
Seatpost
FLYER Dropper Post MT214, 100 mm travel, 34.9 mm
Motor & Battery
Motor
Panasonic GX Ultimate Pro FIT
Remote
FIT Basic
Charger
FIT Fast Charger 36V 6A
Fit data

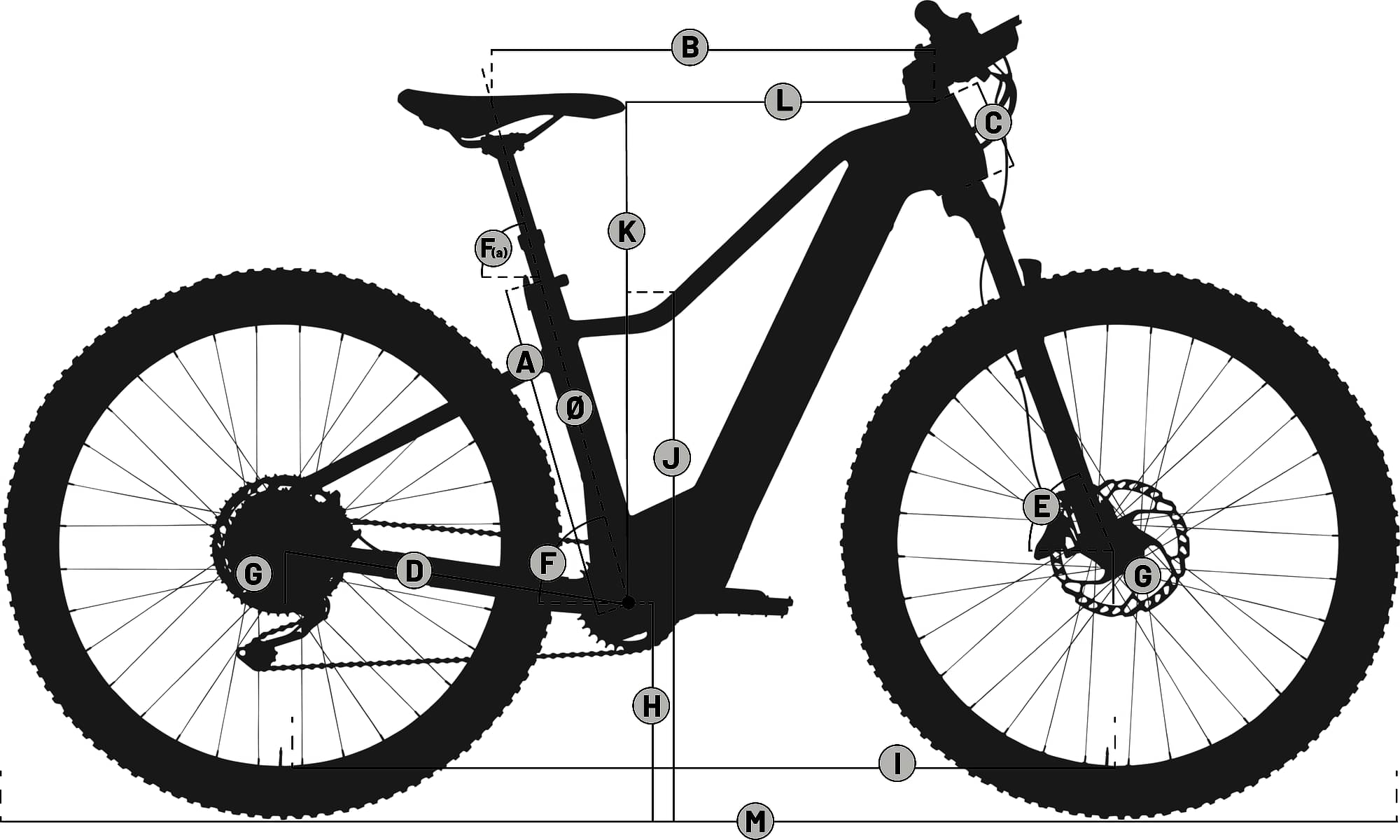

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.691 mm | 1.676 mm | 1.607 mm | 1.523 mm |
| Bottom Bracket Height | 315 mm | 315 mm | 315 mm | 315 mm |
| Front Center | 681 mm | 686 mm | 709 mm | 742 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 97 mm | 89 mm | 86 mm | 86 mm |
| Stack | 673 mm | 687 mm | 699 mm | 708 mm |
| Reach | 398 mm | 410 mm | 435 mm | 465 mm |
| Top Tube Length | 604 mm | 620 mm | 649 mm | 682 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 450 mm | 500 mm | 550 mm |
| Head Tube Angle | 69 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 118 mm | 128 mm | 138 mm | 148 mm |
| Chainstay Length | 505 mm | 505 mm | 505 mm | 505 mm |
| Wheelbase | 1179 mm | 1184 mm | 1207 mm | 1240 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 195 cm |
