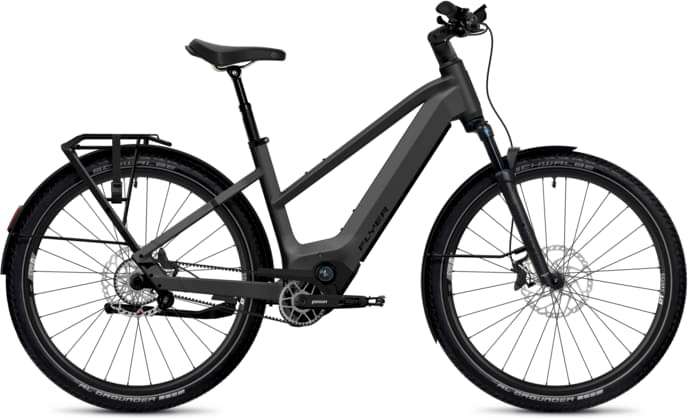

flyer G1 Goroc TR 7.33 Mixed 2024
2024 E-bike
Estimate price |
6,979$
Weight | 27 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Travel Front 100mm -
Fork Suntour MOBIE
-
Suspension Hardtail -
Motor mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
SR Suntour Mobie34 Air, 100 mm, 15 x 100 mm
Drivetrain
Pedals
VP 527
Wheels
Front Hub
Formula DC71, 32h
Rear Hub
Formula EHL-52, 32h
Rims
DT Swiss U 663, 30 mm
Tires
Schwalbe Johnny Watts, 29 x 2.35, 60-622
Brakes
Brakes
Shimano BR-MT420, 4 piston
Cockpit
Stem
FLYER Alloy, 31.8 x 95 mm, adjustable angle
Handlebar
Ergotec Ergo XXL, 16°, 30 mm, 700 mm
Seat
Saddle
Selle Royal On Plus moderate wide
Seatpost
Satori Xopic2 Suspension, 31.6 mm
Motor & Battery
Motor
Pinion E1.9 MGU
Remote
FIT Remote Basic e-Shift
Charger
FIT Fast Charger 5A 48V
Fit data

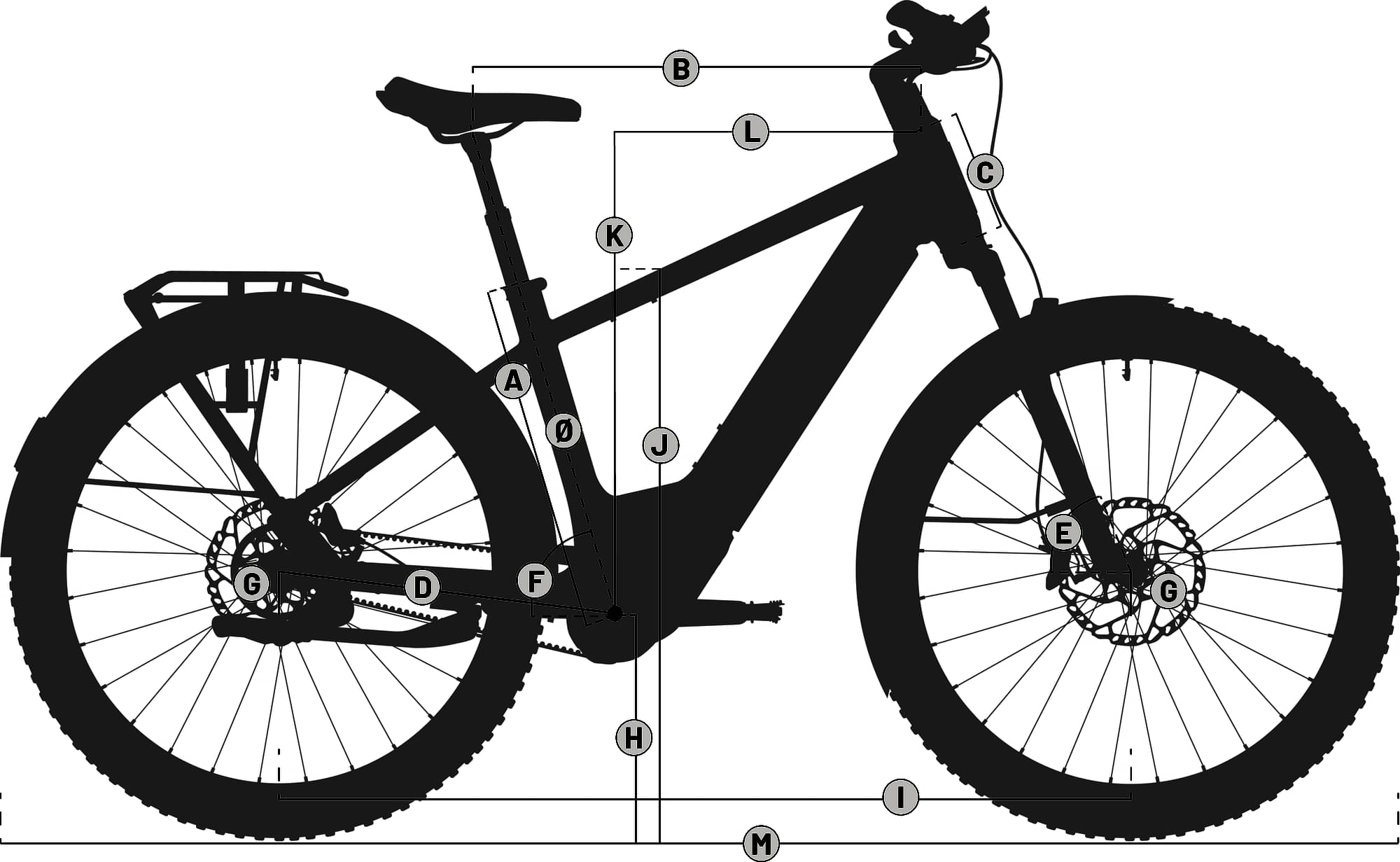

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG |
|---|---|---|
| Stack Reach Ratio | 1.615 mm | 1.568 mm |
| Bottom Bracket Height | 310 mm | 310 mm |
| Front Center | 731 mm | 753 mm |
| Rake | 50 mm | 46 mm |
| Trail | 97 mm | 102 mm |
| Stack | 683 mm | 696 mm |
| Reach | 423 mm | 444 mm |
| Top Tube Length | 630 mm | 650 |
| Seat Tube Angle | 73.5 ° | 73.5 ° |
| Seat Tube Length | 480 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° |
| Head Tube Length | 170 mm | 185 mm |
| Chainstay Length | 480 mm | 480 mm |
| Wheelbase | 1205 mm | 1227 mm |
| Bottom Bracket Drop | 60 mm | 60 mm |
| Wheels | 29" | 29" |
| Rider Min Height | 165 cm | 174 cm |
| Rider Max Height | 176 cm | 185 cm |
