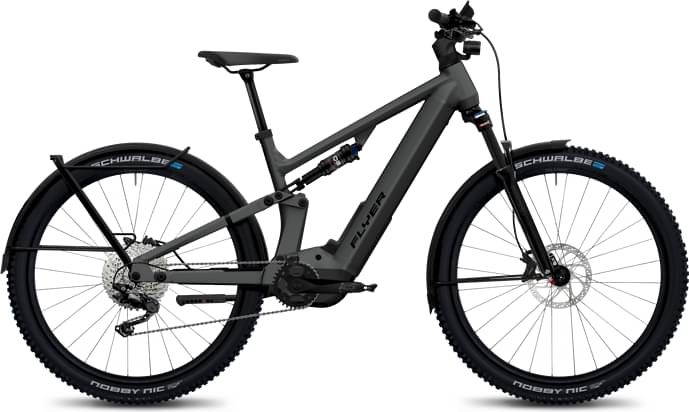

flyer G1 Goroc X 2.10 Gents 2024
2024 E-bike
Estimate price |
6,630$
Weight | 32 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork Suntour Zeron
-
Suspension Full -
Motor Panasonic mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
SR Zeron 35, 140 mm, 15 x 110 mm
Rear Shock
XFusion O2 Pro RLX, 210 x 55 mm
Drivetrain
Pedals
VP 527
Wheels
Front Hub
Formula DC-711, 32h
Rear Hub
Formula EHL-148S, 32h
Rims
Alexrims MD30 27.5"
Tires
Nobby Nic E-50, 27.5 x 2.40, 62-584
Brakes
Brakes
Shimano BR-MT420, 4 piston // Tektro HD-M535, 4 piston
Cockpit
Stem
FLYER ONE CI Stem, 35 × 60 mm, 8°
Handlebar
FLYER Alloy, 7°, 25 mm, 740 mm
Seat
Saddle
Selle Royal Essenza+
Seatpost
Satori Comet, 34.9 x 300 mm
Motor & Battery
Motor
Panasonic GX Ultimate Pro FIT
Remote
FIT Remote Basic
Charger
FIT Fast Charger 6A 36V
Fit data

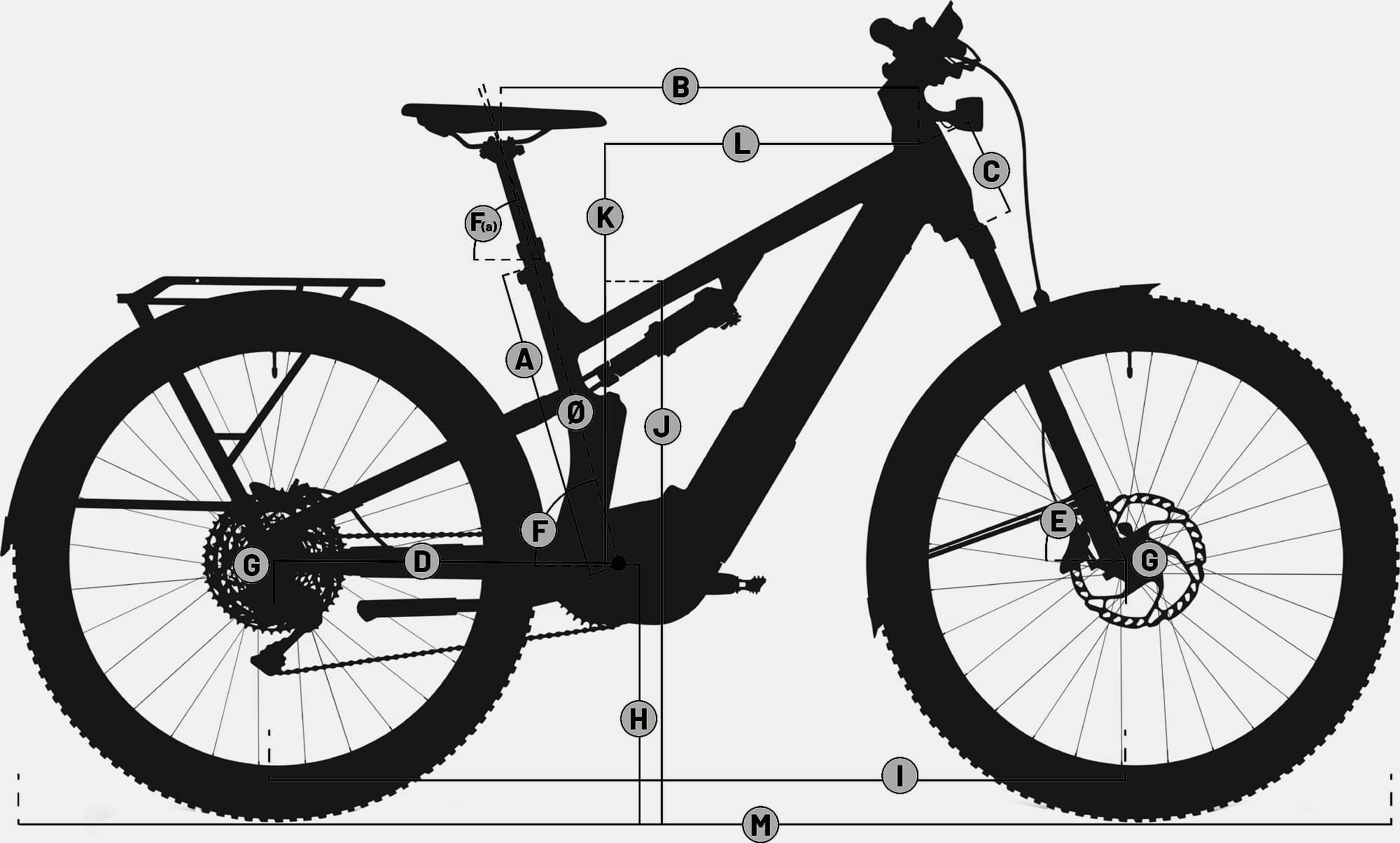

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.398 mm | 1.416 mm | 1.352 mm | 1.302 mm |
| Bottom Bracket Height | 358 mm | 358 mm | 358 mm | 358 mm |
| Front Center | 757 mm | 766 mm | 807 mm | 836 mm |
| Rake | 44 mm | 32 mm | 44 mm | 44 mm |
| Trail | 117 mm | 127 mm | 114 mm | 114 mm |
| Stack | 601 mm | 637 mm | 642 mm | 651 mm |
| Reach | 430 mm | 450 mm | 475 mm | 500 mm |
| Top Tube Length | 580 mm | 609 mm | 635 mm | 662 mm |
| Seat Tube Angle | 76 ° | 76 ° | 75.9 ° | 75.8 ° |
| Seat Tube Length | 409 mm | 440 mm | 470 mm | 510 mm |
| Head Tube Angle | 65 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 140 mm | 135 mm | 140 mm | 150 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1232 mm | 1240 mm | 1281 mm | 1310 mm |
| Bottom Bracket Drop | 3 mm | 21 mm | 21 mm | 21 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 195 cm |
