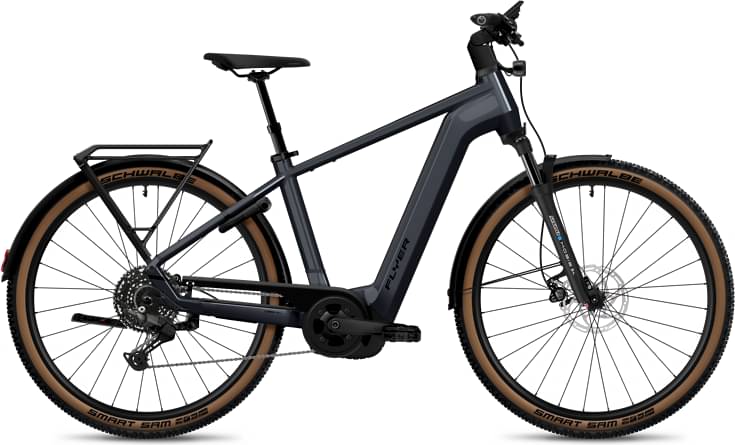

flyer G1 Gotour 5.12 CX Gents 2024
2024 E-bike
Estimate price |
5,234$
Weight | 32 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Fork Suntour MOBIE -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 176cm
LG
174cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
SR Suntour Mobie34 Air, 80 mm, 15 x 100 mm
Drivetrain
Pedals
FLYER Wellgo
Wheels
Front Hub
Shimano Deore HB-M6010BX CL, 32h
Rear Hub
Shimano Deore FH-M6000 CL, 32h
Rims
Mach1 Trucky 30, 30 mm
Tires
Schwalbe Smart Sam, 29 x 2.35, 57-622
Brakes
Brakes
Tektro HD-T280, 2 piston
Cockpit
Stem
FLYER ONE CI Stem, 31.8 x 95 mm
Handlebar
Ergotec Ergo XXL, 16°, 30 mm, 700 mm
Seat
Saddle
Selle Royal Essenza+ Moderate
Seatpost
FLYER Alloy, 30.9 mm
Motor & Battery
Motor
Bosch Smart System Performance Line CX
Remote
Bosch LED Remote
Charger
Bosch Standard Charger 4A
Fit data

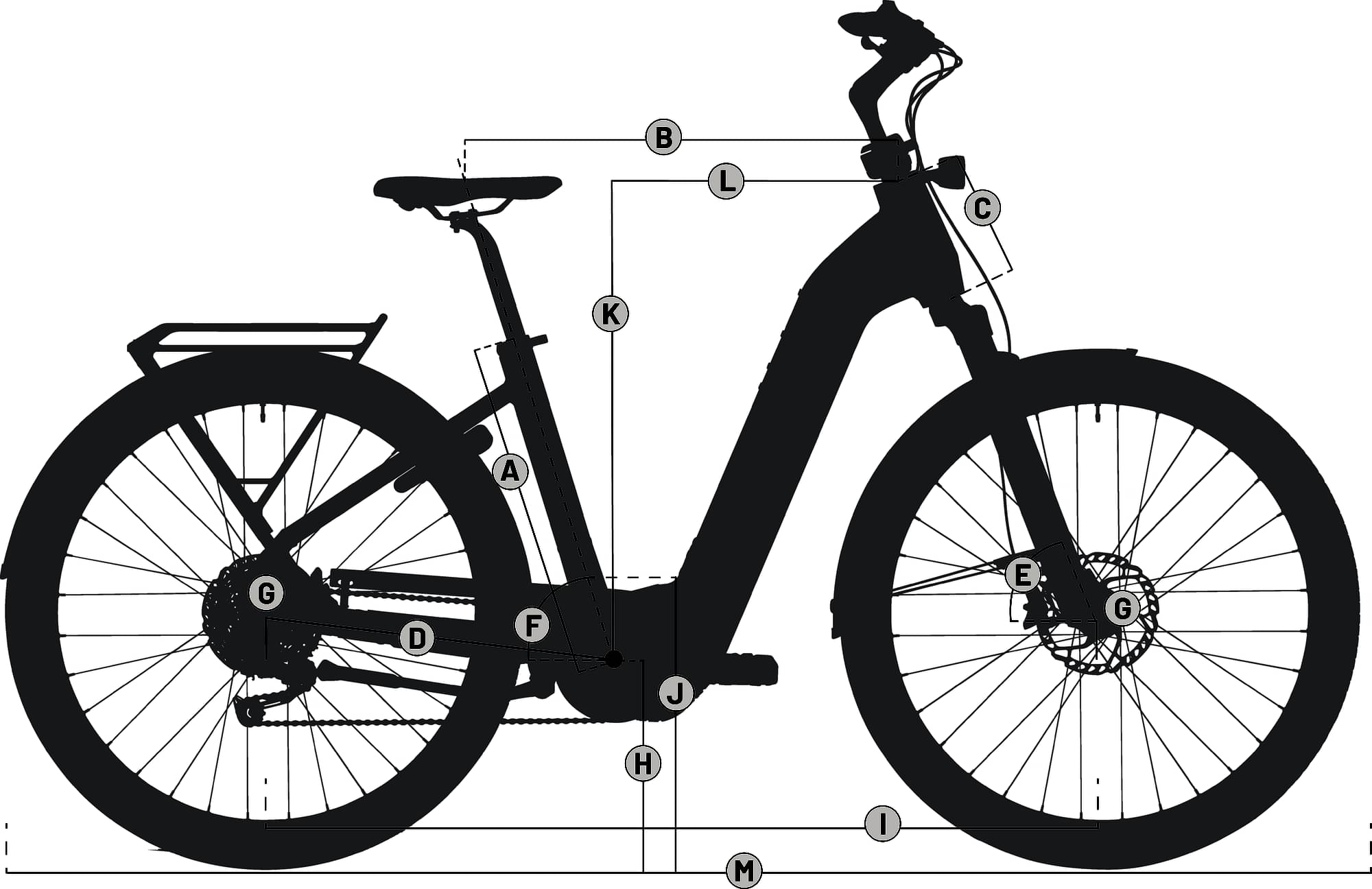

Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.629 mm | 1.593 mm | 1.564 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm |
| Front Center | 696 mm | 716 mm | 743 mm |
| Rake | 44 mm | 44 mm | 43 mm |
| Trail | 88 mm | 85 mm | 86 mm |
| Stack | 668 mm | 685 mm | 704 mm |
| Reach | 410 mm | 430 mm | 450 mm |
| Top Tube Length | 614 mm | 639 mm | 665 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 480 mm | 530 mm | 600 mm |
| Head Tube Angle | 68.5 ° | 69 ° | 69 ° |
| Head Tube Length | 165 mm | 180 mm | 200 mm |
| Chainstay Length | 502 mm | 502 mm | 502 mm |
| Wheelbase | 1190 mm | 1210 mm | 1237 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 174 cm | 184 cm |
| Rider Max Height | 176 cm | 186 cm | 195 cm |
