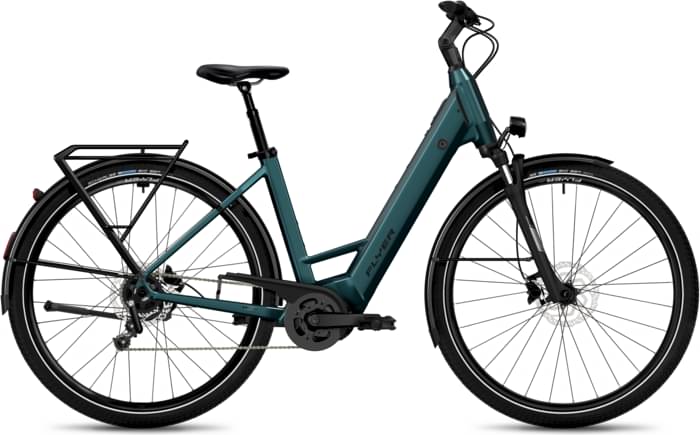

flyer G1 Gotour EL 3.40 Comfort 2024
2024 E-bike
Estimate price |
4,885$
Weight | 29 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour NEX -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
SR Suntour NEX-E25, 63 mm, 15 x 100 mm
Drivetrain
Pedals
VP VPE-891
Wheels
Front Hub
Shimano Deore HB-TC500, 32h
Rear Hub
Shimano Nexus SG-C7000-5D, 32h
Rims
Mach1 650, 23 mm
Tires
Schwalbe Big Ben, 28 x 2.15, 55-622
Brakes
Brakes
Shimano BR-MT200, 2 piston
Cockpit
Stem
Satori Up2+, 31.8 x 90 mm, adjustable angle
Handlebar
Satori Roxetta, 20°, 680 mm
Seat
Saddle
Selle Royal Nuvola
Seatpost
Satori Xopic2 Suspension, 31.6 mm
Motor & Battery
Motor
Bosch Smart System Performance Line
Remote
Bosch System Controller & Mini Remote
Charger
Bosch Standard Charger 4A
Fit data

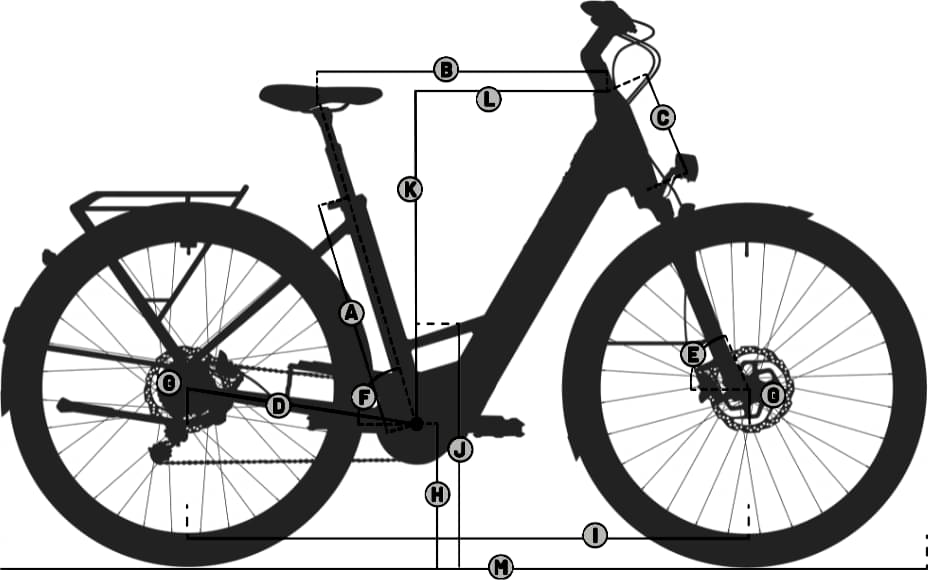

Geometry
Numbers for sizing and ride feel.
| Size | XS | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.808 mm | 1.764 mm | 1.724 mm |
| Bottom Bracket Height | 298 mm | 298 mm | 298 mm |
| Front Center | 669 mm | 696 mm | 724 mm |
| Rake | 51 mm | 50 mm | 50 mm |
| Trail | 81 mm | 82 mm | 82 mm |
| Stack | 669 mm | 688 mm | 707 mm |
| Reach | 370 mm | 390 mm | 410 mm |
| Top Tube Length | 562 mm | 587 mm | 613 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 400 mm | 480 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 200 mm | 220 mm | 240 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1140 mm | 1167 mm | 1195 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 174 cm |
| Rider Max Height | 166 cm | 176 cm | 185 cm |
