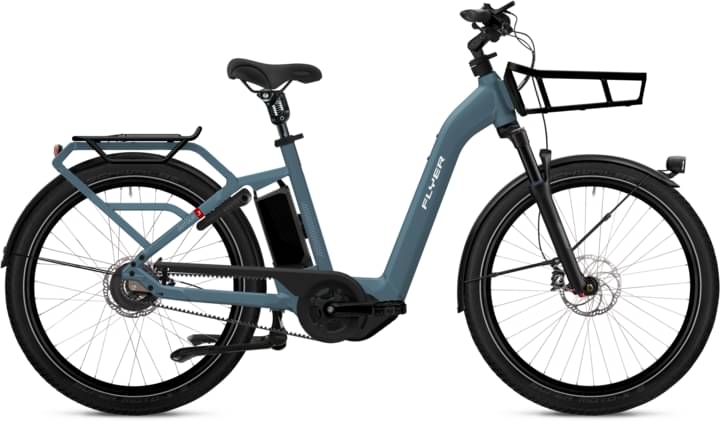

flyer G1 Gotour3 7.43 Comfort 2024
2024 E-bike
Estimate price |
4,885$
Weight | 33 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour MOBIE -
Suspension Hardtail -
Motor Panasonic mid-drive -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM/MD
165cm - 176cm
XL
174cm - 185cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
SR Suntour Mobie45 Air, 60 mm travel, 15 x 100 mm boost
Drivetrain
Pedals
FLYER Wellgo
Wheels
Front Hub
Shimano Deore HB-M6010, 32h
Rear Hub
Shimano Nexus SG-C7000-5D, 32h
Rims
Mach1 Kargo Disc
Tires
Schwalbe Super Moto-X, 26 x 2.40, 62-559
Brakes
Brakes
Magura MT5
Cockpit
Stem
Satori All Up 1,5", 35 × 95 mm, adjustable height 90 mm, adjustable angle
Handlebar
FLYER Cruise, 42°, 55 mm, 640 mm
Seat
Saddle
Selle Royal Viaggio
Seatpost
bySchulz G.2 ST, 30.9 x 350 mm
Motor & Battery
Motor
Panasonic GX Power Plus
Remote
FIT RC0
Charger
FLYER Fast Charger 6A 36V
Fit data

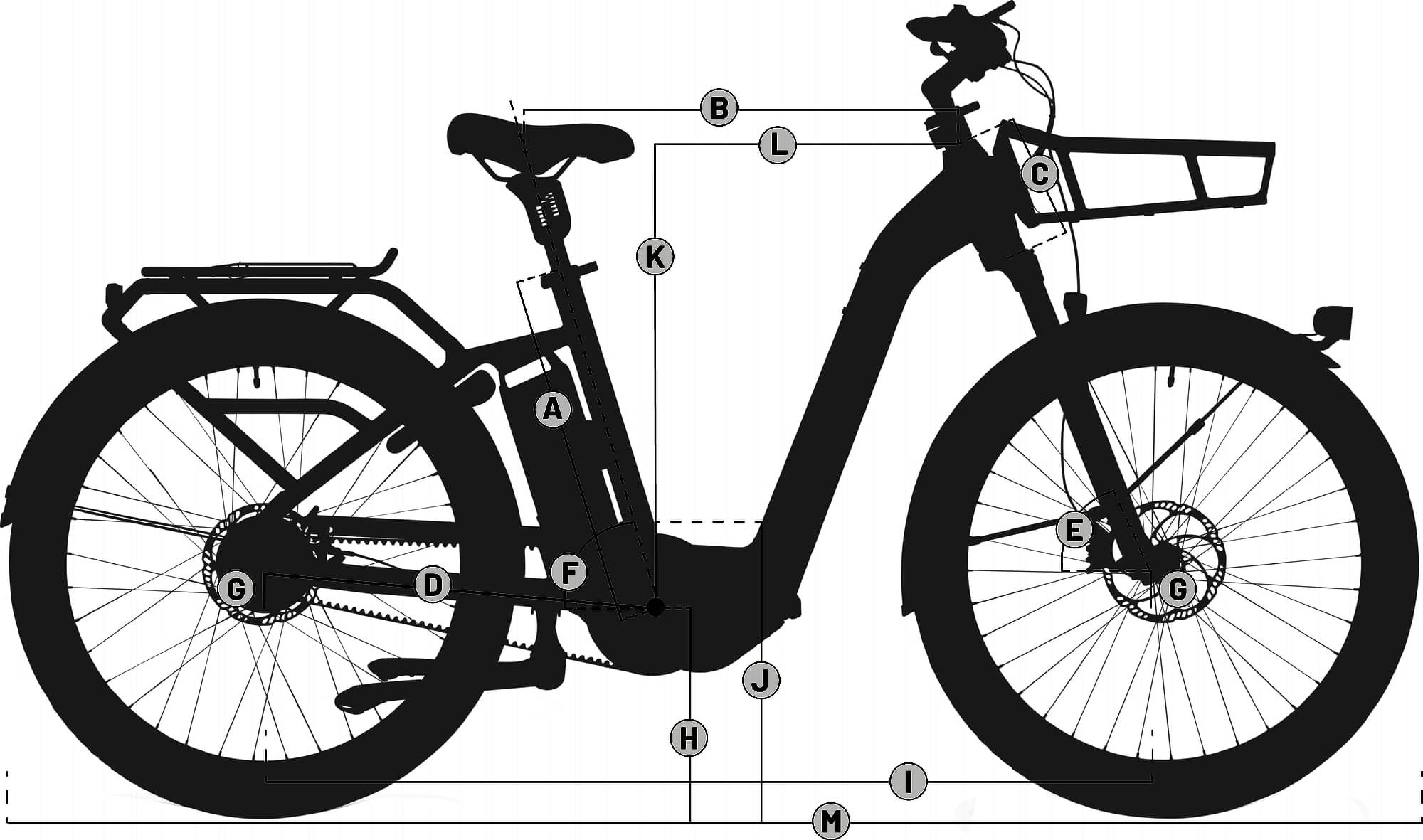

Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | XL |
|---|---|---|
| Stack Reach Ratio | 1.495 mm | 1.515 mm |
| Bottom Bracket Height | 280 mm | 280 mm |
| Front Center | 688 mm | 722 mm |
| Rake | 43 mm | 43 mm |
| Trail | 77 mm | 77 mm |
| Stack | 619 mm | 656 mm |
| Reach | 414 mm | 433 mm |
| Top Tube Length | 580 mm | 610 mm |
| Seat Tube Angle | 74.7 ° | 74.7 ° |
| Seat Tube Length | 470 mm | 570 mm |
| Head Tube Angle | 68 ° | 68 ° |
| Head Tube Length | 140 mm | 180 mm |
| Chainstay Length | 521 mm | 521 mm |
| Wheelbase | 1203 mm | 1237 mm |
| Bottom Bracket Drop | 62 mm | 62 mm |
| Wheels | 26" | 26" |
| Rider Min Height | 165 cm | 174 cm |
| Rider Max Height | 176 cm | 185 cm |
