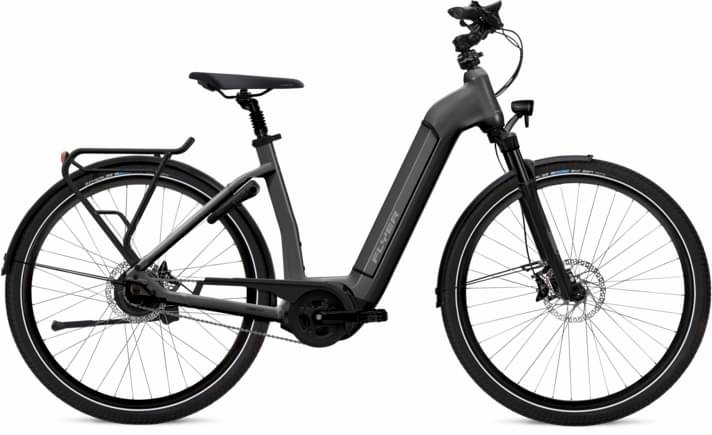

flyer G1 Gotour6 5.20 Comfort 2024
2024 E-bike
Estimate price |
4,071$
Weight | 30 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour MOBIE -
Suspension Hardtail -
Motor Bosch 600W 63Nm mid-drive -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
SR Suntour Mobie A32 Coil, 75 mm travel, 15 x 100 mm boost
Drivetrain
Pedals
FLYER Wellgo
Wheels
Front Hub
Shimano Alivio HB-MT400, 32h
Rear Hub
Enviolo Trekking CVP, 32h
Rims
FLYER Disc
Tires
Schwalbe Marathon Plus, 28 x 2.00, 50-622
Brakes
Brakes
Shimano MT402
Cockpit
Stem
Speedlifter Twist, 31,8 × 95 mm, adjustable height 80 mm, adjustable angle
Handlebar
FLYER Cruise, 44°, 55 mm, 620 mm
Seat
Saddle
Selle Royal Lookin
Seatpost
FLYER Cushy Suspension, 27.2 x 250 mm
Motor & Battery
Motor
Bosch Performance Line
Charger
Bosch Standard Charger 4A
Fit data

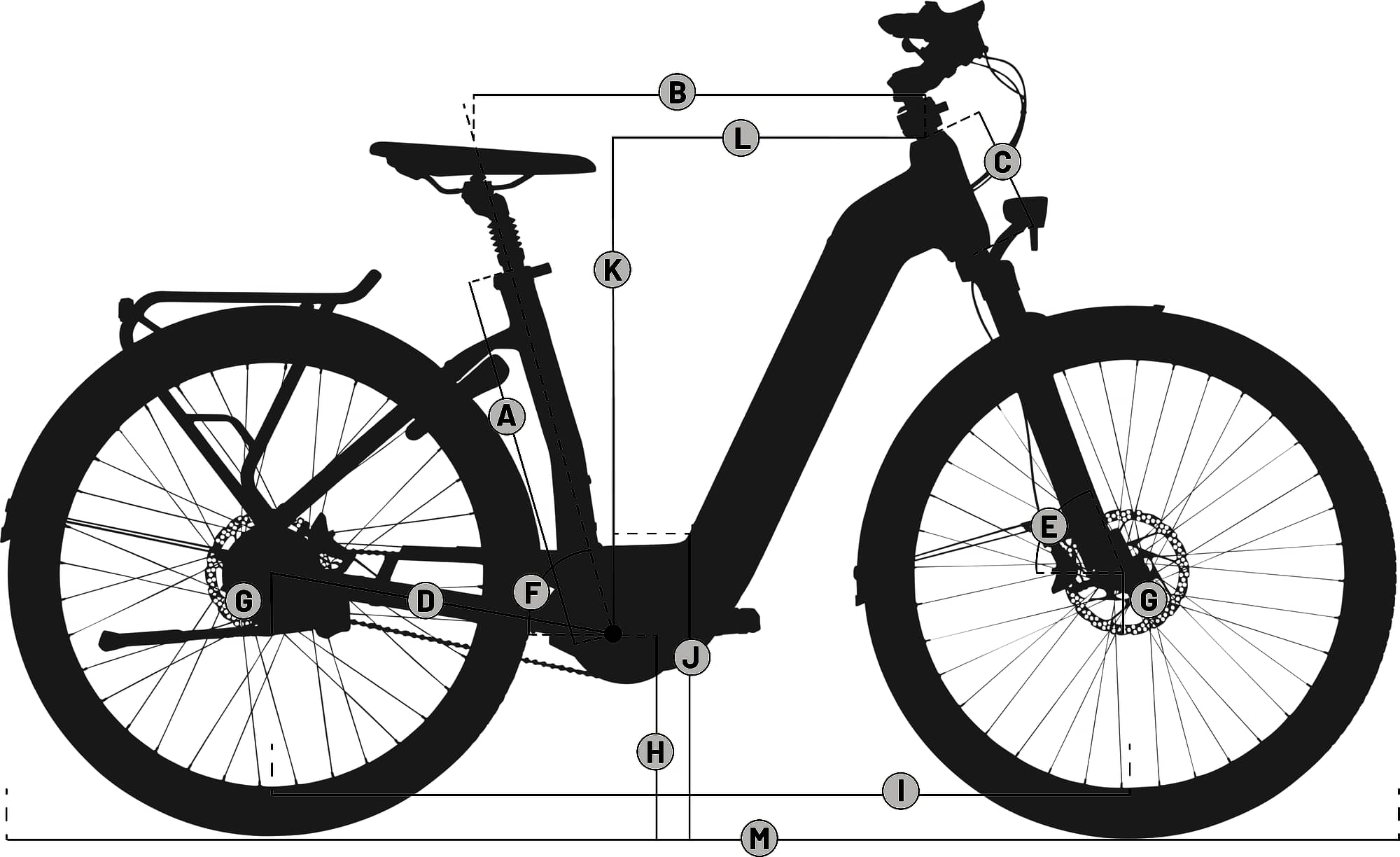

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.628 mm | 1.599 mm | 1.569 mm | 1.518 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 662 mm | 671 mm | 691 mm | 711 mm |
| Rake | 46 mm | 46 mm | 49 mm | 46 mm |
| Trail | 80 mm | 73 mm | 70 mm | 73 mm |
| Stack | 635 mm | 649 mm | 659 mm | 668 mm |
| Reach | 390 mm | 406 mm | 420 mm | 440 mm |
| Top Tube Length | 585 mm | 605 mm | 625 mm | 645 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 490 mm | 530 mm | 570 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 150 mm | 160 mm | 170 mm | 180 mm |
| Chainstay Length | 480 mm | 480 mm | 480 mm | 480 mm |
| Wheelbase | 1134 mm | 1143 mm | 1164 mm | 1184 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 195 cm |
