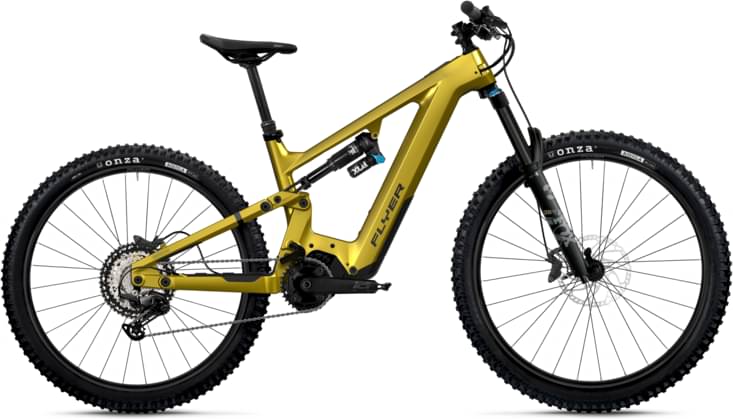

flyer G1 Uproc EVO:X 6.10 Gents 2024
2024 E-bike
Estimate price |
9,538$
Weight | 26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 170mm -
Fork Fox Float 38
-
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon
Suspension Fork
Fox 38 Float Rhythm E-Optimized, 170 mm, 15 x 110 mm
Rear Shock
Fox Float X Performance, 230 x 65 mm
Drivetrain
Pedals
VP 532
Wheels
Front Hub
Formula DC-711, 32h
Rear Hub
Formula EHL-148M, 32h
Rims
Alexrims MD30, 30 mm
Tires
Onza Aquila GRC, 29 x 2.50, 63-622
Brakes
Brakes
Shimano BR-MT520, 4 piston
Cockpit
Stem
Satori Ursa, 35 × 35 mm, 0°
Handlebar
FSA Comet 35 Riser, 8°, 15 mm, 800 mm
Seat
Saddle
Fizik Aidon
Seatpost
KS LEV Integra, 125 mm, 34.9 mm
Motor & Battery
Motor
Bosch Smart System Performance Line CX
Remote
Bosch Mini Remote
Charger
Bosch Standard Charger 4A
Fit data

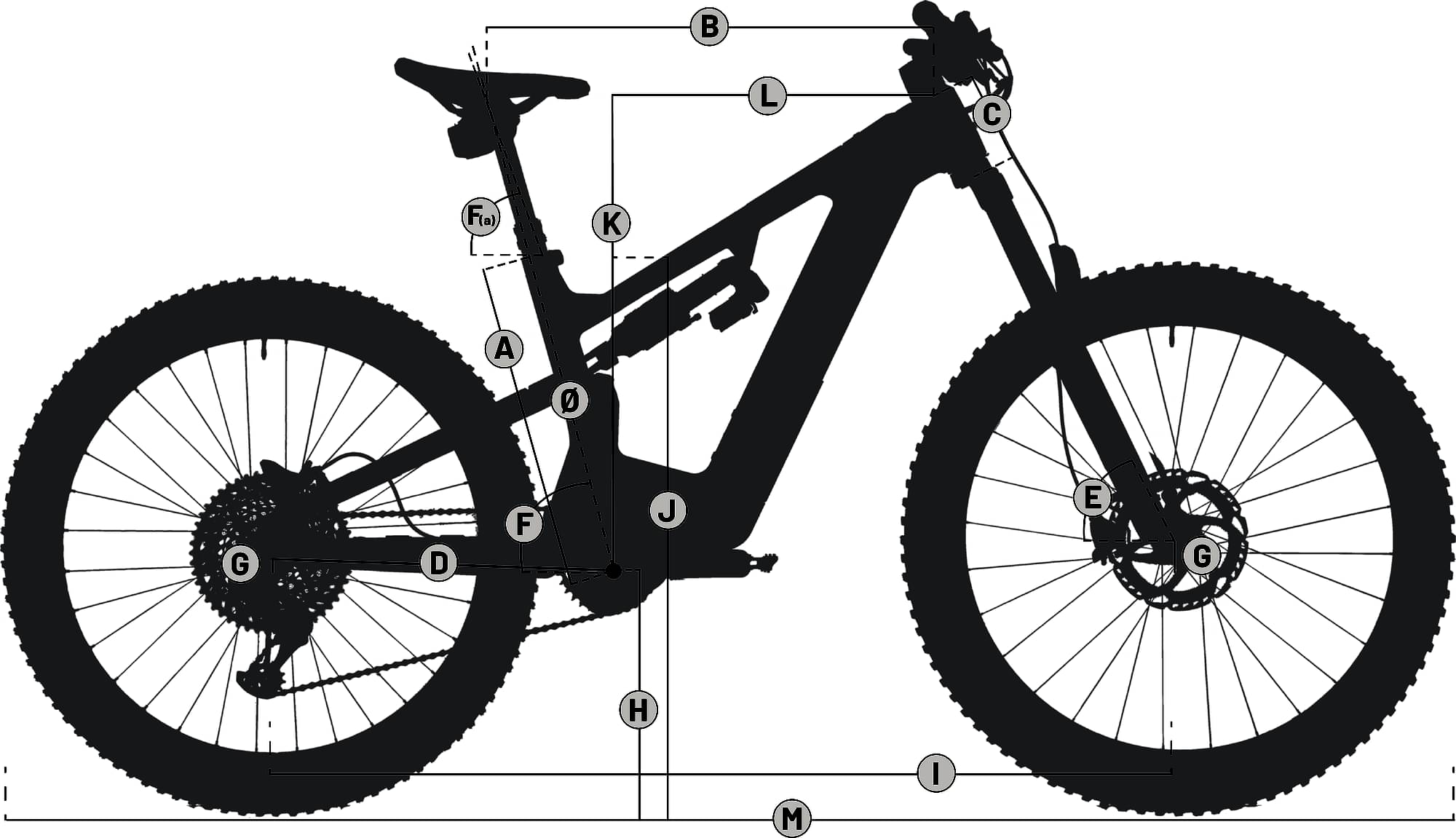

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.449 mm | 1.369 mm | 1.317 mm | 1.269 mm |
| Bottom Bracket Height | 352 mm | 352 mm | 352 mm | 352 mm |
| Front Center | 771 mm | 796 mm | 826 mm | 855 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 133 mm | 133 mm | 133 mm | 133 mm |
| Stack | 623 mm | 623 mm | 632 mm | 641 mm |
| Reach | 430 mm | 455 mm | 480 mm | 505 mm |
| Top Tube Length | 582 mm | 607 mm | 634 mm | 661 mm |
| Seat Tube Angle | 76.5 ° | 76.3 ° | 76.2 ° | 76.1 ° |
| Seat Tube Length | 395 mm | 415 mm | 450 mm | 485 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1215 mm | 1240 mm | 1270 mm | 1299 mm |
| Bottom Bracket Drop | 26 mm | 26 mm | 26 mm | 26 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 195 cm |
