flyer G1 Uproc SL:X 6.50 Gents 2024
2024 E-bike
Estimate price |
8,142$
Weight | 19 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 130mm -
Fork Fox Rhythm Float 34
-
Suspension Full -
Motor Bosch 600W 55Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon
Suspension Fork
Fox 34 Float Rhythm, 130 mm, 15 x 110 mm
Rear Shock
Fox Float Performance, 210 x 47 mm
Drivetrain
Pedals
VP 532
Wheels
Rims
29"
Tires
Schwalbe Wicked Will EVO Super Ground, 29 x 2.40, 62-622
Brakes
Brakes
Shimano BR-MT520, 4 piston
Cockpit
Stem
Satori Ursa, 35 x 35 mm, 0°
Handlebar
FLYER Alloy, 9°, 25 mm, 780 mm
Seat
Saddle
Fizik Ridon
Seatpost
FLYER Dropper Post MT171, 125 mm, 31.6 mm
Motor & Battery
Motor
Bosch Smart System Performance Line SX
Remote
Bosch Mini Remote
Charger
Bosch Standard Charger 4A
Fit data

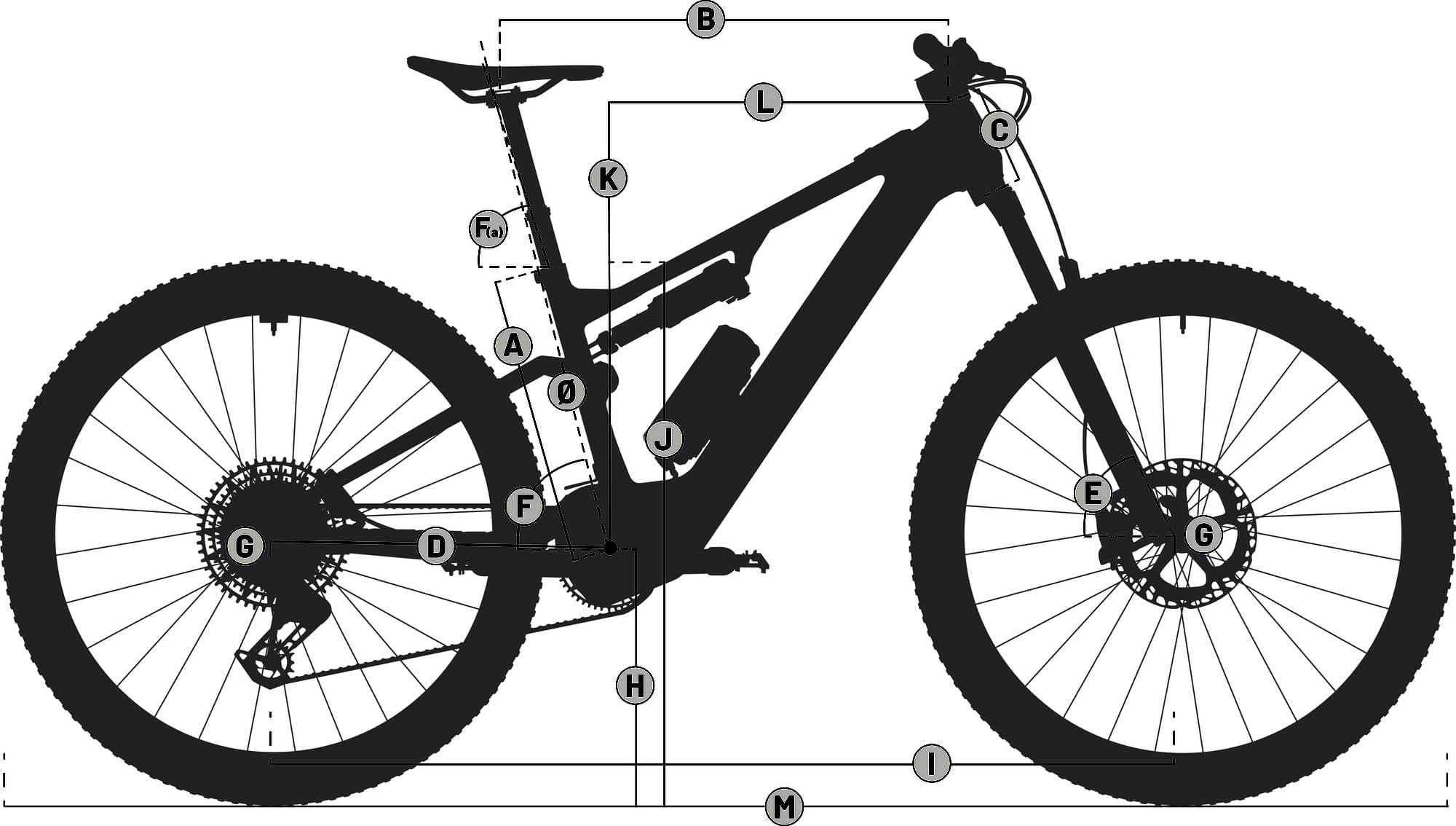

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.362 mm | 1.32 mm | 1.285 mm | 1.236 mm |
| Bottom Bracket Height | 343.5 mm | 335.5 mm | 335.5 mm | 335.5 mm |
| Front Center | 747 mm | 783 mm | 807 mm | 843 mm |
| Rake | 43 mm | 44 mm | 44 mm | 44 mm |
| Trail | 123 mm | 126 mm | 126 mm | 126 mm |
| Stack | 600 mm | 614 mm | 623 mm | 636.5 mm |
| Reach | 440.5 mm | 465 mm | 485 mm | 515 mm |
| Top Tube Length | 571 mm | 605 mm | 629 mm | 664.5 mm |
| Seat Tube Angle | 77.9 ° | 77 ° | 77 ° | 76.8 ° |
| Seat Tube Length | 380 mm | 400 mm | 440 mm | 480 mm |
| Head Tube Angle | 65.6 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 100 mm | 110 mm | 120 mm | 135 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1198 mm | 1233 mm | 1258 mm | 1294 mm |
| Bottom Bracket Drop | 30 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 195 cm |
