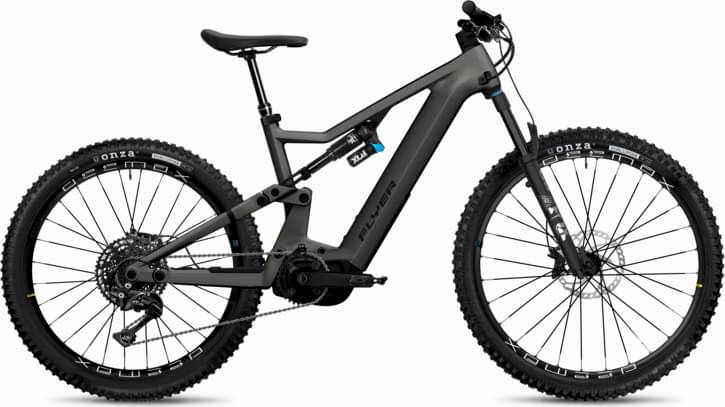

flyer G1 Uproc X 8.70 Gents 2024
2024 E-bike
Estimate price |
9,306$
Weight | 26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Fork Fox Performance Float 36
-
Suspension Full -
Motor Panasonic mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon
Suspension Fork
Fox 36 Float Performance E-Optimized, 150 mm, 15 x 110 mm
Rear Shock
Fox Float X Performance, 230 x 60 mm
Drivetrain
Pedals
VP 532
Wheels
Rims
29" / 27,5"
Tires
Onza Porcupine TRC, 29 x 2.40, 61-622
Brakes
Brakes
Shimano XT BR-M8120, 4 piston
Cockpit
Stem
Satori Ursa, 35 × 35 mm, 0°
Handlebar
Hayes ProTaper Carbon, 8°, 25mm, 810 mm
Seat
Saddle
Fizik Aidon
Seatpost
KS LEV Integra, 125 mm, 34.9 mm
Motor & Battery
Motor
Panasonic GX Ultimate Pro FIT
Remote
FIT Remote Basic
Charger
FIT Fast Charger 6A 36V
Fit data

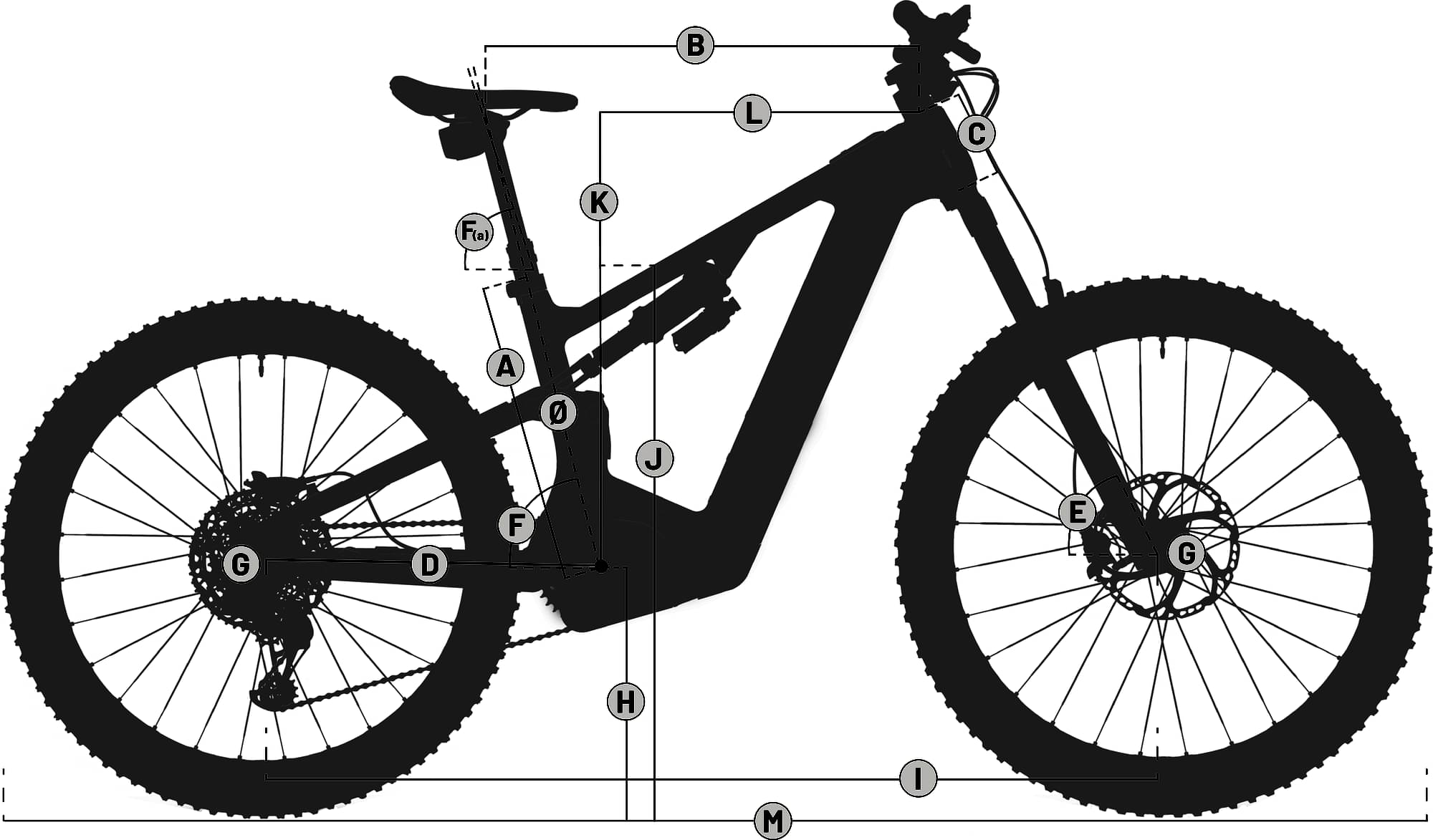

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.407 mm | 1.398 mm | 1.334 mm | 1.313 mm |
| Bottom Bracket Height | 351 mm | 351 mm | 351 mm | 351 mm |
| Front Center | 763 mm | 771 mm | 803 mm | 834 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 129 mm | 125 mm | 125 mm | 125 mm |
| Stack | 612 mm | 622 mm | 631 mm | 650 |
| Reach | 435 mm | 445 mm | 473 mm | 495 mm |
| Top Tube Length | 567 mm | 600 mm | 632 mm | 664 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 400 mm | 415 mm | 450 mm | 485 mm |
| Head Tube Angle | 64.5 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 102 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Wheelbase | 1221 mm | 1229 mm | 1261 mm | 1292 mm |
| Bottom Bracket Drop | 31 mm | 31 mm | 31 mm | 31 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 195 cm |
