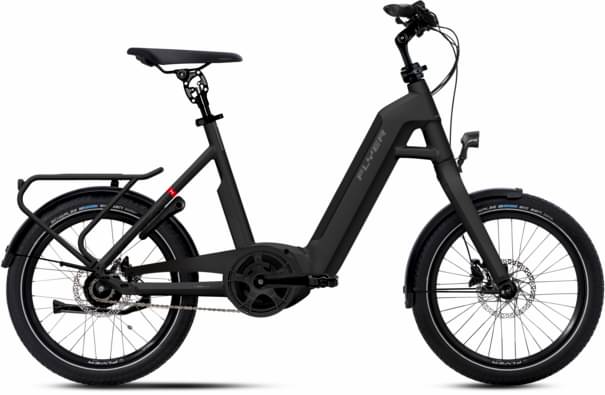

flyer G1 Upstreet1 5.41R Comfort 2024
2024 E-bike
Estimate price |
3,838$
Weight | 26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Suspension Rigid -
Motor Bosch 600W 50Nm mid-drive -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
FLYER Rigid Fork
Drivetrain
Pedals
FLYER Wellgo
Wheels
Front Hub
Formula CL-25, 32h
Rear Hub
Shimano Nexus SG-C7000-5CD, 32h
Rims
FLYER Disc
Tires
Schwalbe Pick up, 20 x 2.15, 55-406
Brakes
Brakes
Shimano Deore BL-T6000
Cockpit
Stem
Speedlifter Twist Pro SDS, 31,8 × 90 mm, adjustable height 150 mm, adjustable angle
Handlebar
FLYER Riser, 11°, 20 mm, 660 mm
Seat
Saddle
Selle Royal Essenza+
Seatpost
SR Suntour SP12 NCX, 50 mm suspension, 27,2 × 400 mm
Motor & Battery
Motor
Bosch Active Line Plus
Charger
Bosch Standard Charger 4A
Fit data

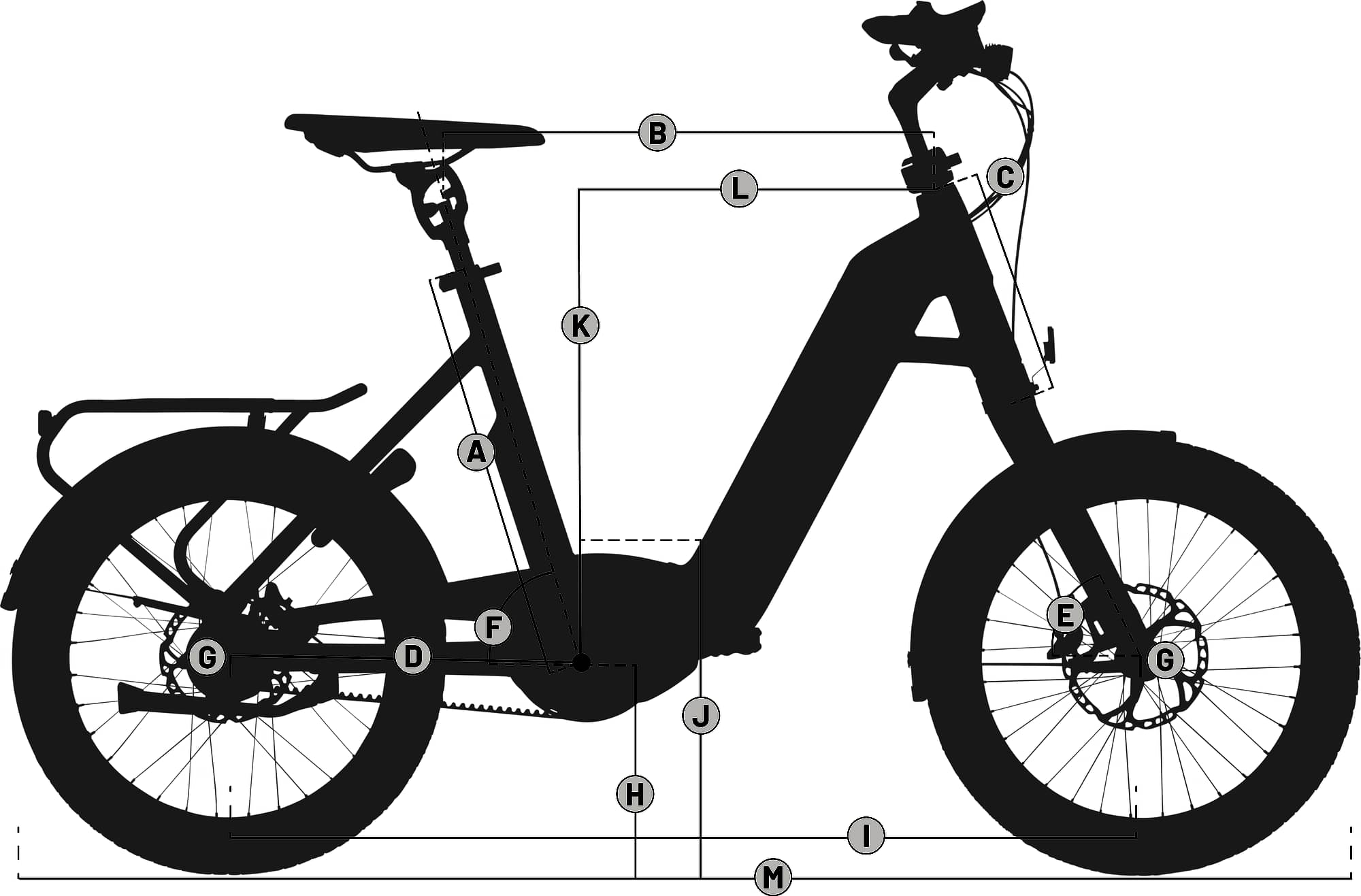

Geometry
Numbers for sizing and ride feel.
| Size | One Size |
|---|---|
| Stack Reach Ratio | 1.272 mm |
| Bottom Bracket Height | 280 mm |
| Front Center | 653 mm |
| Rake | 59 mm |
| Stack | 524 mm |
| Reach | 412 mm |
| Top Tube Length | 580 mm |
| Seat Tube Angle | 72 ° |
| Seat Tube Length | 440 mm |
| Head Tube Angle | 70.5 ° |
| Head Tube Length | 220 mm |
| Chainstay Length | 420 mm |
| Wheelbase | 1072 mm |
| Bottom Bracket Drop | 22 mm |
| Wheels | 20" |
| Rider Min Height | 120 cm |
