flyer G2 Goroc X 2.10 Mixed 2024
2024 E-bike
Estimate price |
6,979$
Weight | 32 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 140mm -
Fork Suntour AION
-
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 165cm
MD
165cm - 175cm
LG
175cm - 185cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
SR Suntour Aion35 EVO, 140 mm, 15 x 110 mm
Rear Shock
SR Suntour Edge X, 190 x 45 mm
Drivetrain
Pedals
VP 527
Wheels
Front Hub
Formula DC-511, 32h
Rear Hub
Formula EHL-148S, 32h
Rims
DT Swiss U 663, 30 mm
Tires
Schwalbe Johnny Watts, 27.5 x 2.35, 60-584
Brakes
Brakes
Shimano BR-MT420, 4 piston
Cockpit
Stem
Ergotec Integra Performance BK-A, 31.8 x 85 mm
Handlebar
Ergotec Riser Bar 30 Comfort, 16°, 30 mm, 780 mm
Seat
Saddle
Selle Royal ON Plus moderate
Seatpost
X-Fusion Manic LC Dropper Post, 100 mm, 34.9 mm
Motor & Battery
Motor
New Bosch Smart System Performance Line CX
Remote
Bosch System Controller & Mini Remote
Charger
Bosch Standard Charger 4A
Fit data

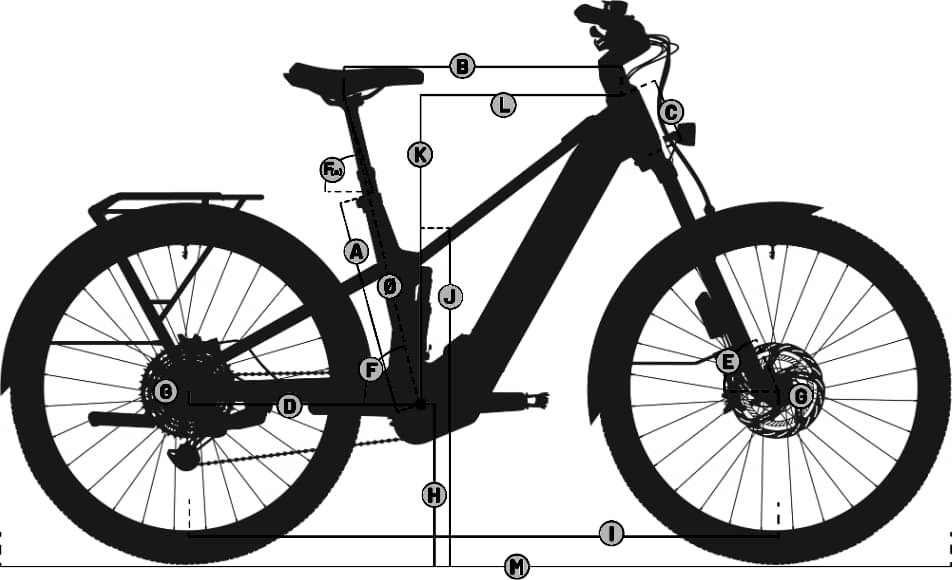

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.611 mm | 1.551 mm | 1.541 mm | 1.467 mm | 1.389 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 719 mm | 734 mm | 746 mm | 773 mm | 798 mm |
| Rake | 44 mm | 44 mm | 42 mm | 41 mm | 41 mm |
| Trail | 119 mm | 119 mm | 121 mm | 122 mm | 122 mm |
| Stack | 633 mm | 633 mm | 652 mm | 657 mm | 657 mm |
| Reach | 393 mm | 408 mm | 423 mm | 448 mm | 473 mm |
| Top Tube Length | 539 mm | 554 mm | 574 mm | 600 mm | 625 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° | 77 ° | 77 ° |
| Seat Tube Length | 390 mm | 430 mm | 450 mm | 470 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 140 mm | 140 mm | 140 mm | 145 mm | 145 mm |
| Chainstay Length | 484 mm | 484 mm | 487 mm | 487 mm | 487 mm |
| Wheelbase | 1203 mm | 1218 mm | 1232 mm | 1259 mm | 1284 mm |
| Bottom Bracket Drop | 9 mm | 9 mm | 29 mm | 29 mm | 29 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
