flyer G2 Gotour 7.43 Comfort 2024
2024 E-bike
Estimate price |
6,281$
Weight | 32 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Fork Suntour MOBIE -
Suspension Hardtail -
Motor Bosch 600W 85Nm mid-drive -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 165cm
MD
165cm - 175cm
LG
175cm - 185cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
SR Suntour Mobie34, 80 mm, 15 x 110 mm
Drivetrain
Pedals
FLYER Wellgo
Wheels
Front Hub
Formula CL-811, 32h
Rear Hub
Shimano Nexus SG-C7000-5D, 32h
Rims
DT Swiss U 663, 30 mm
Tires
Schwalbe Marathon Plus Tour, 27.5 x 2.15, 55-584
Brakes
Brakes
Shimano BR-MT410, 2 piston
Cockpit
Stem
Speedlifter Twist Pro, 31.8 x 95 mm, adjustable height 100 mm, adjustable angle
Handlebar
Ergotec Ergo XXL, 16°, 30 mm , 700 mm
Seat
Saddle
Selle Royal ON relaxed
Seatpost
Satori Xopic2 Suspension, 31.6 mm
Motor & Battery
Motor
New Bosch Smart System Performance Line CX
Remote
Bosch System Controller & Mini Remote
Charger
Bosch Standard Charger 4A
Fit data

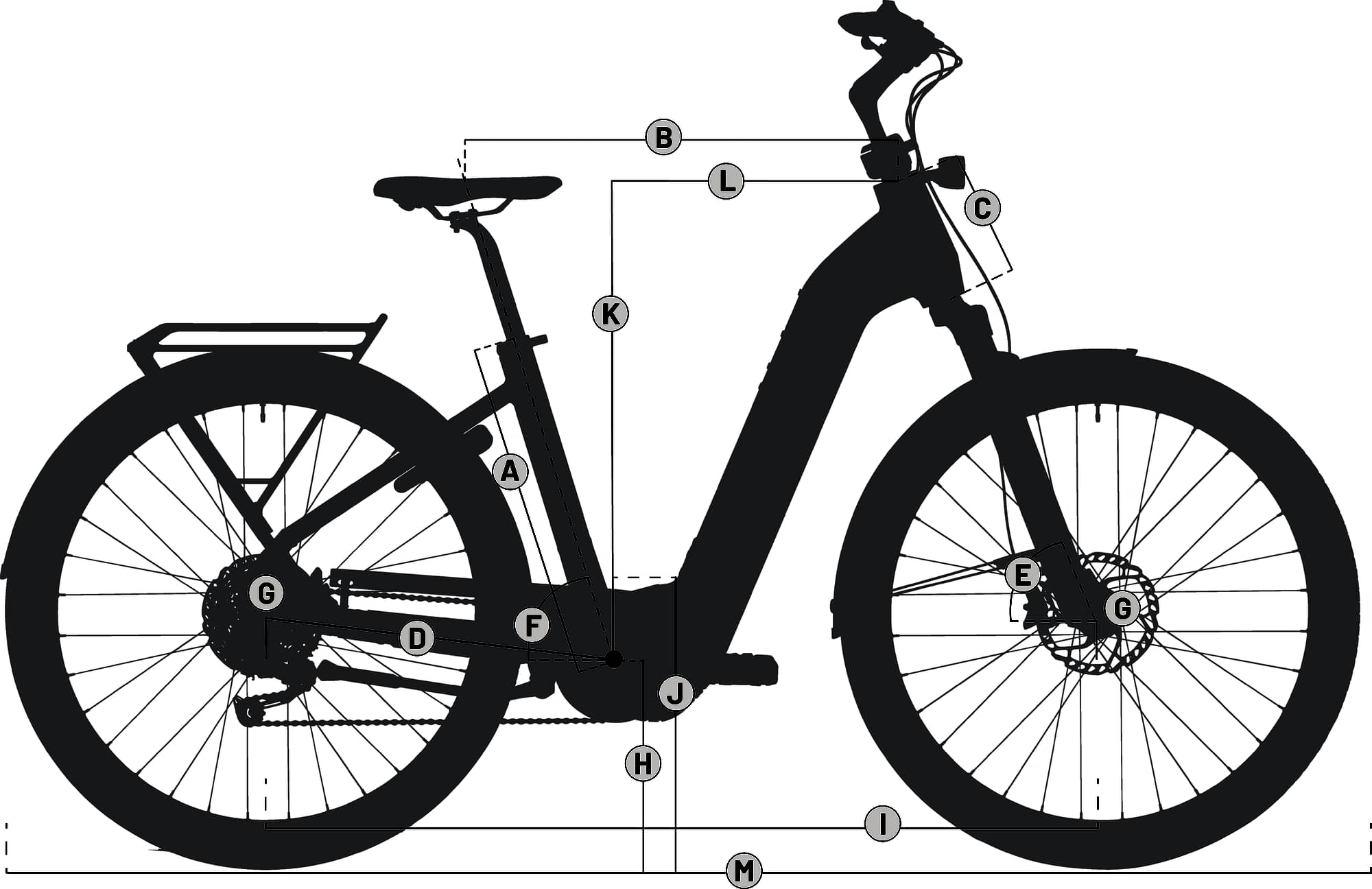

Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.571 mm | 1.607 mm | 1.617 mm | 1.595 mm | 1.556 mm |
| Bottom Bracket Height | 298 mm | 308 mm | 308 mm | 308 mm | 308 mm |
| Front Center | 710 mm | 729 mm | 731 mm | 737 mm | 763 mm |
| Rake | 44 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 84 mm | 76 mm | 76 mm | 73 mm | 73 mm |
| Stack | 652 mm | 675 mm | 679 mm | 686 mm | 700 |
| Reach | 415 mm | 420 mm | 420 mm | 430 mm | 450 mm |
| Top Tube Length | 577 mm | 588 mm | 615 mm | 633 mm | 657 mm |
| Seat Tube Angle | 76 ° | 76 ° | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 390 mm | 430 mm | 480 mm | 530 mm | 590 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 68 ° | 68 ° |
| Head Tube Length | 175 mm | 175 mm | 180 mm | 185 mm | 200 mm |
| Chainstay Length | 502 mm | 502 mm | 502 mm | 502 mm | 502 mm |
| Wheelbase | 1206 mm | 1223 mm | 1225 mm | 1231 mm | 1257 mm |
| Bottom Bracket Drop | 60 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
