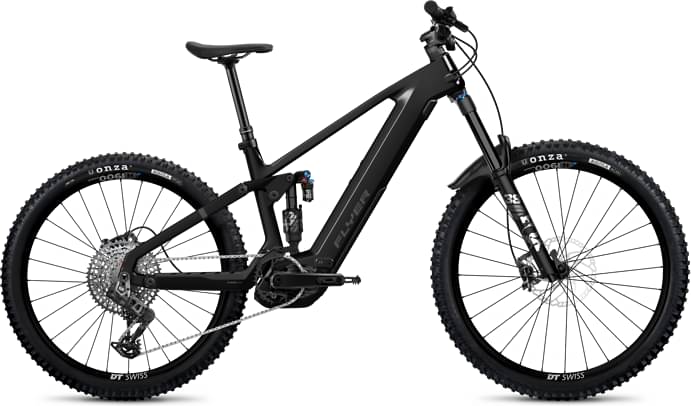

flyer G2 Uproc EVO:X 8.50 Gents 2024
2024 E-bike
Estimate price |
10,321$
Weight | 24 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 180mm -
Fork Fox Performance Float 38
-
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Brakes Shimano XT Hydraulic Disc
Sizing
Recommended size guide.
SM/MD
160cm - 176cm
LG
174cm - 186cm
XL
184cm - 196cm
XXL
194cm - 205cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon
Suspension Fork
Fox 38 Float Performance E-Optimized, 180 mm, 15 x 110 mm
Rear Shock
Fox Float X2 Performance, 205 x 65 mm
Drivetrain
Pedals
OneUp Composite Pedals
Wheels
Rims
29" / 27,5"
Tires
Onza Aquila GRC, 29 x 2.50, 63-622
Brakes
Brakes
Shimano XT BR-M8120, 4 piston
Cockpit
Stem
Satori Ursa, 35 x 35 mm, 0°
Handlebar
FLYER Alloy, 8°, 35 mm, 800 mm
Seat
Saddle
Fizik Aidon
Seatpost
X-Fusion Manic Dropper Post, 150 mm, 34.9 mm
Motor & Battery
Motor
Bosch Smart System Performance Line CX
Remote
Bosch System Controller & Mini Remote
Charger
Bosch Standard Charger 4A
Fit data

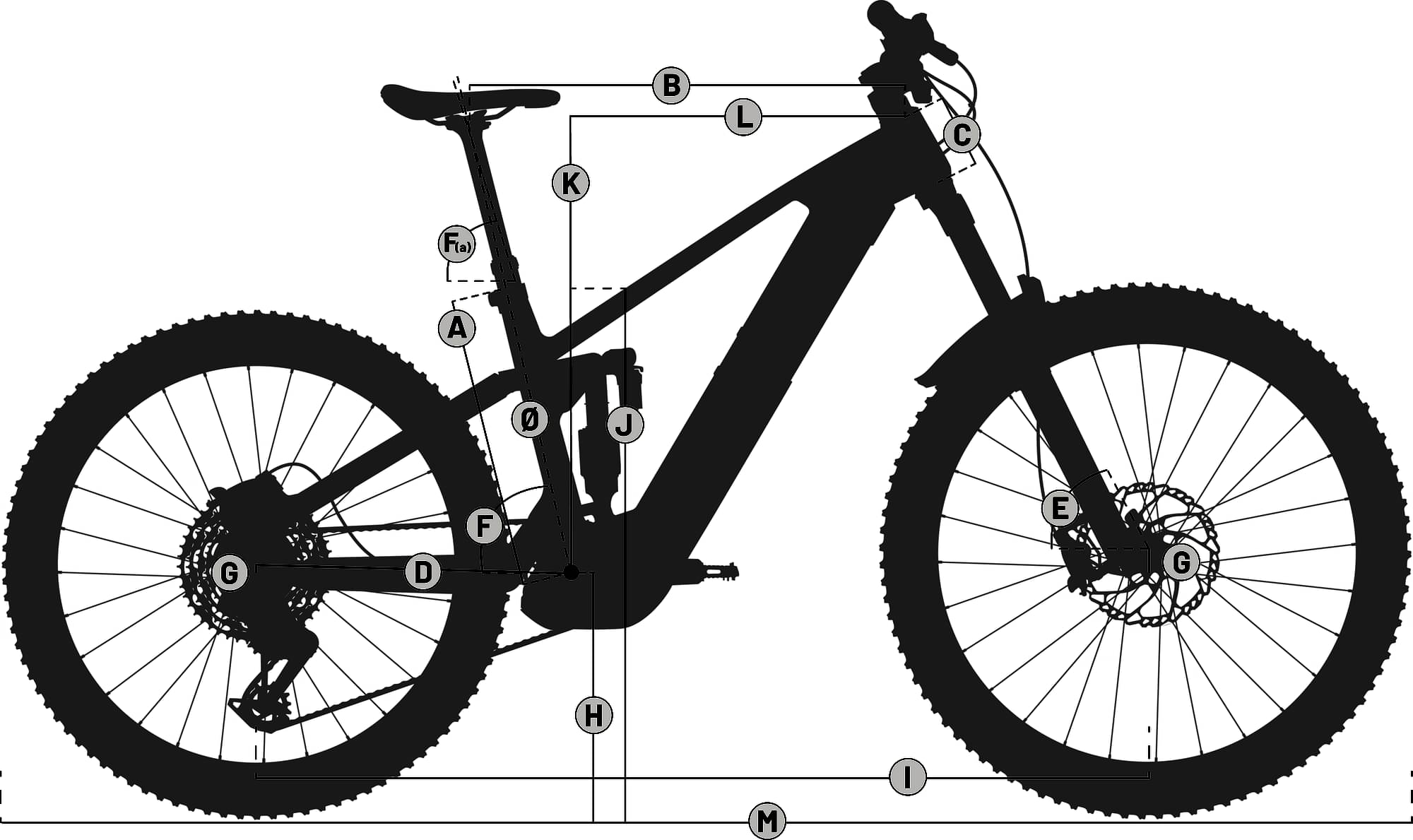

Geometry
Numbers for sizing and ride feel.
| Size | SM/MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.378 mm | 1.327 mm | 1.28 mm | 1.237 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Front Center | 817 mm | 846 mm | 876 mm | 905 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 134 mm | 134 mm | 134 mm | 134 mm |
| Stack | 641 mm | 650 | 659 mm | 668 mm |
| Reach | 465 mm | 490 mm | 515 mm | 540 mm |
| Top Tube Length | 612 mm | 640 mm | 668 mm | 696 mm |
| Seat Tube Angle | 77.1 ° | 77 ° | 76.9 ° | 76.9 ° |
| Seat Tube Length | 410 mm | 440 mm | 470 mm | 490 mm |
| Head Tube Angle | 63.8 ° | 63.8 ° | 63.8 ° | 63.8 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1260 mm | 1289 mm | 1319 mm | 1348 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 160 cm | 174 cm | 184 cm | 194 cm |
| Rider Max Height | 176 cm | 186 cm | 196 cm | 205 cm |
