flyer G2 Uproc X 8.30 SE Gents 2024
2024 E-bike
Estimate price |
9,306$
Weight | 26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Travel Front 150mm -
Fork Fox Factory Float 36
-
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
155cm - 166cm
MD
164cm - 176cm
LG
174cm - 186cm
XL
184cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon
Suspension Fork
Fox 36 Float Factory E-Optimized, 150 mm, 15 x 110 mm
Rear Shock
Fox Float X Performance, 230 x 60 mm
Drivetrain
Pedals
VP 532
Wheels
Rims
29" / 27,5"
Tires
Onza Porcupine TRC, 29 x 2.40, 61-622
Brakes
Brakes
Shimano BR-MT520, 4 piston
Cockpit
Stem
Satori Ursa, 35 x 35 mm, 0°
Handlebar
FLYER Alloy, 9°, 25 mm, 780 mm
Seat
Saddle
Fizik Aidon
Seatpost
X-Fusion Manic Dropper Post, 125 mm, 34.9 mm
Motor & Battery
Motor
Bosch Smart System Performance Line CX
Remote
Bosch Mini Remote
Charger
Bosch Standard Charger 4A
Fit data

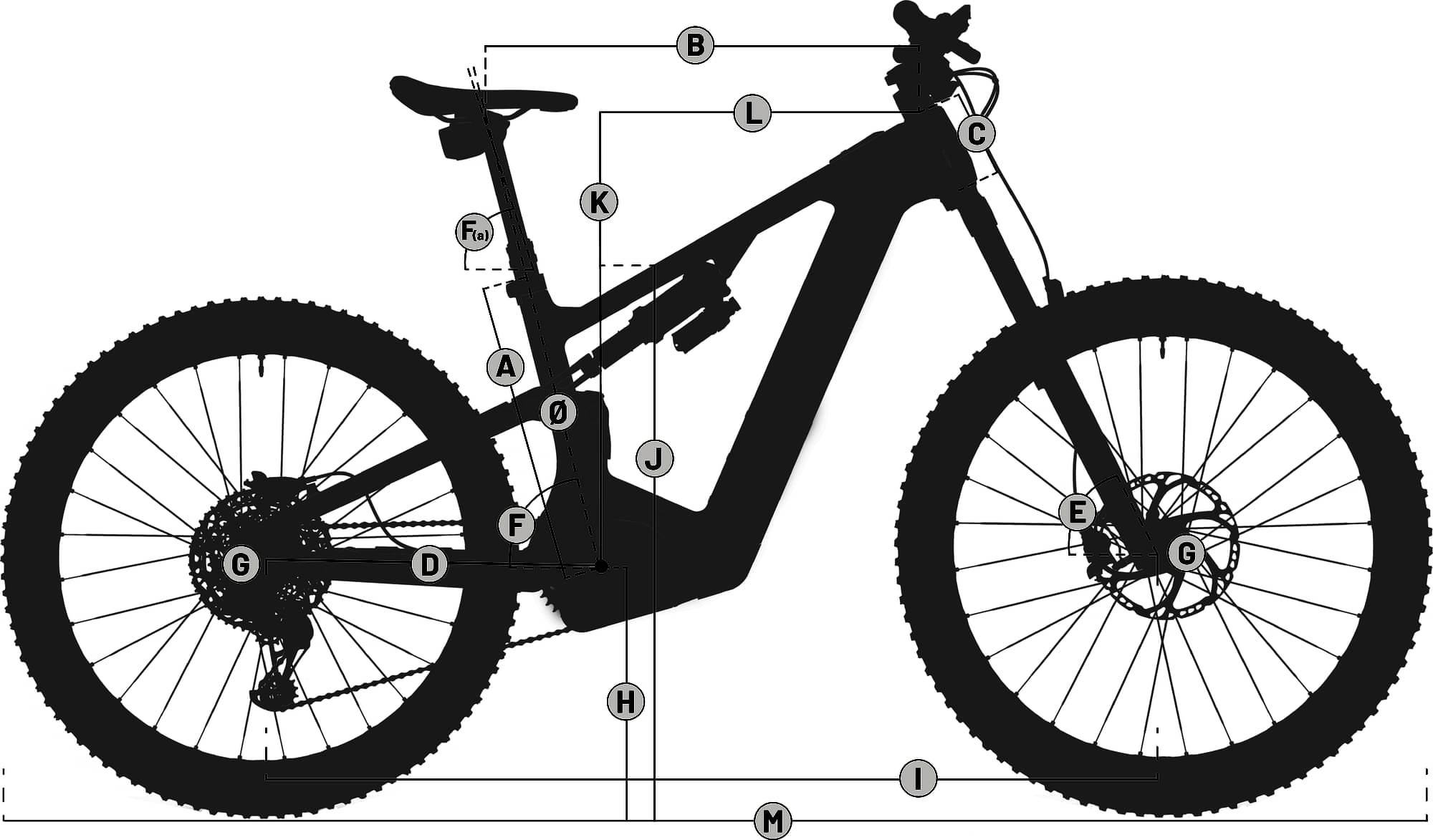

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.405 mm | 1.342 mm | 1.289 mm | 1.242 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 767 mm | 803 mm | 840 mm | 876 mm |
| Rake | 45 mm | 45 mm | 45 mm | 44 mm |
| Trail | 133 mm | 133 mm | 133 mm | 134 mm |
| Stack | 611 mm | 624 mm | 638 mm | 652 mm |
| Reach | 435 mm | 465 mm | 495 mm | 525 mm |
| Top Tube Length | 567 mm | 600 mm | 632 mm | 664 mm |
| Seat Tube Angle | 77.6 ° | 77.6 ° | 77.5 ° | 77.6 ° |
| Seat Tube Length | 388 mm | 408 mm | 438 mm | 483 mm |
| Head Tube Angle | 64 ° | 64 ° | 64 ° | 64 ° |
| Head Tube Length | 95 mm | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1210 mm | 1246 mm | 1283 mm | 1319 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 155 cm | 164 cm | 174 cm | 184 cm |
| Rider Max Height | 166 cm | 176 cm | 186 cm | 195 cm |
