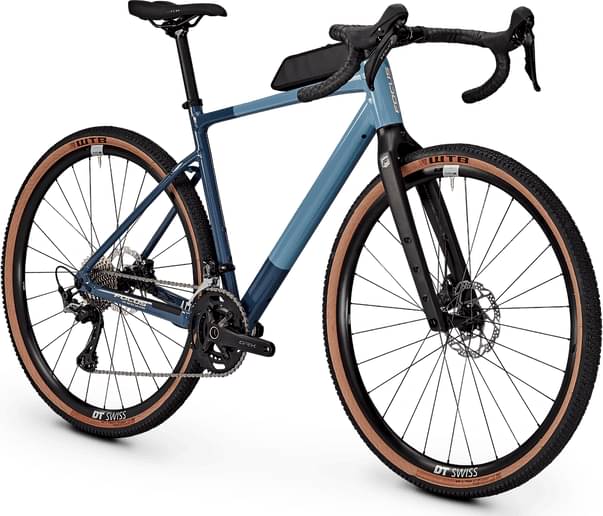

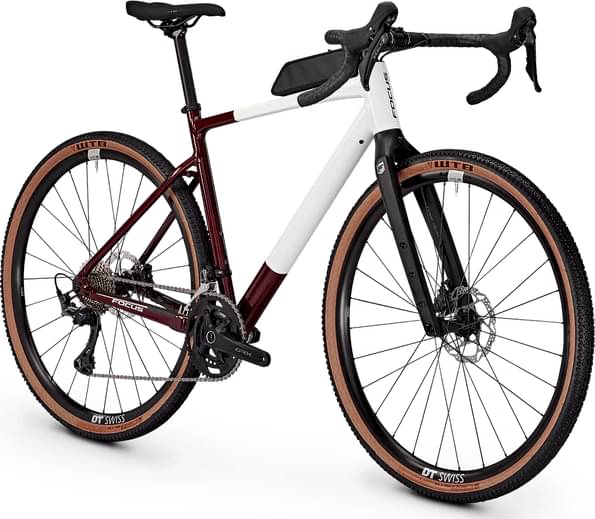

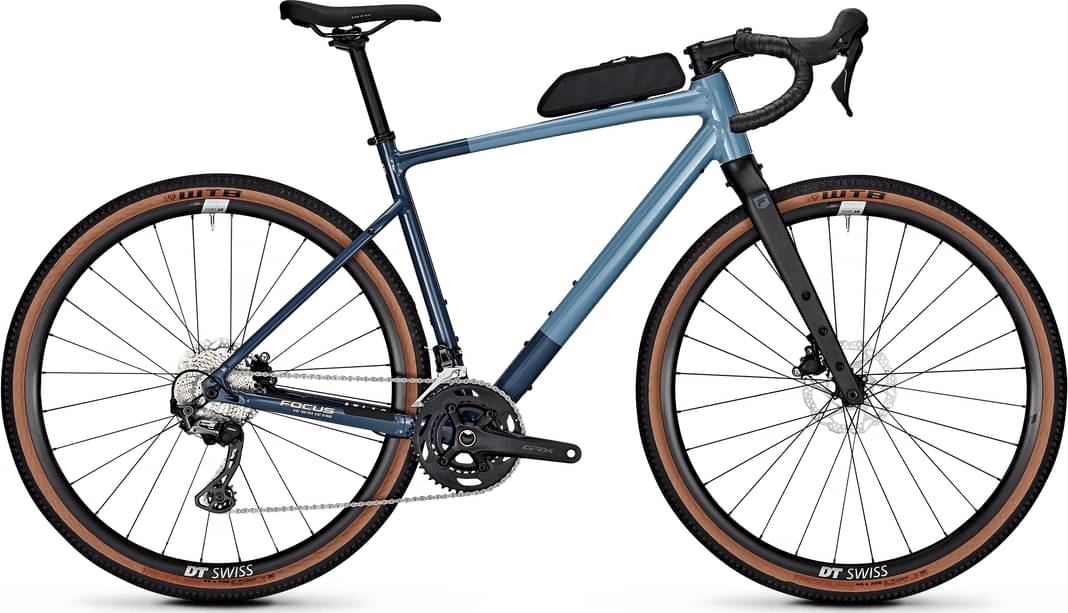

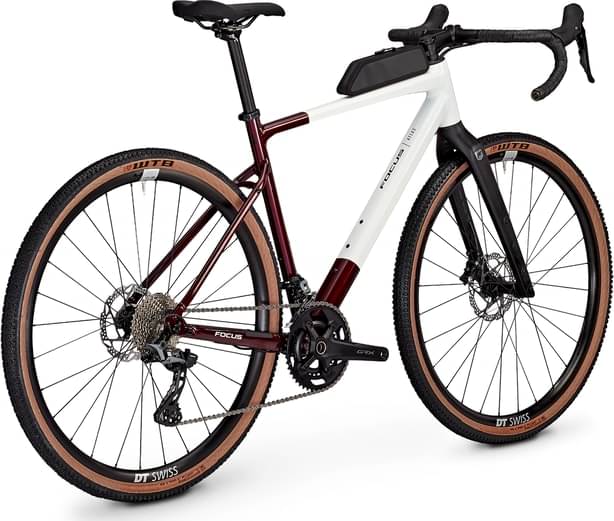

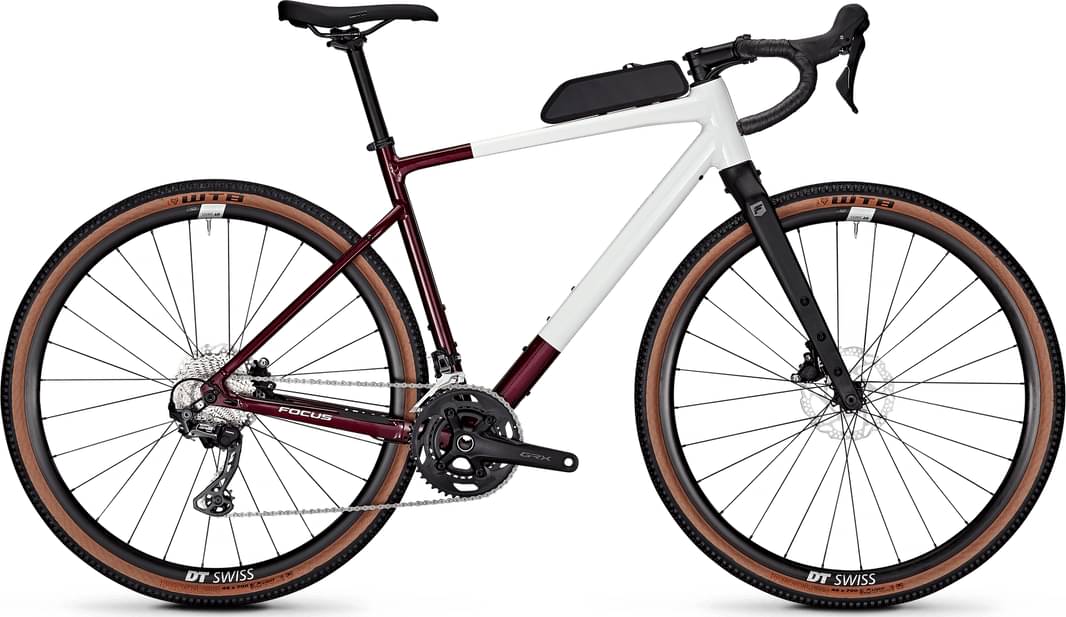

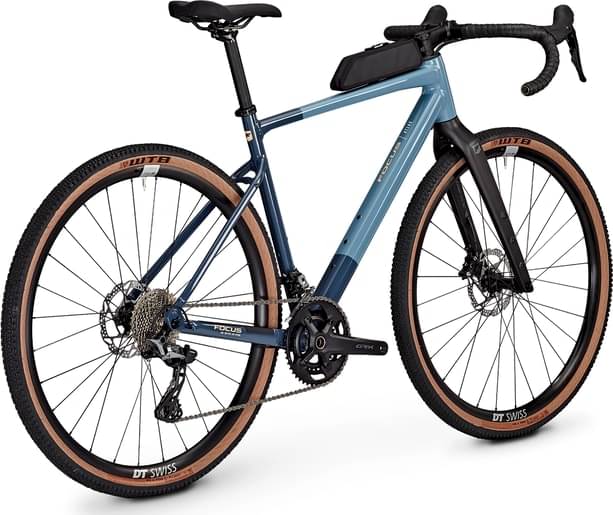

Focus ATLAS 6.8 2024
2024 Road
Estimate price |
2,907$
Weight | 10.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 800, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium, disc, BSA, 148x12 mm thru axle, flat mount 160/160 mm, internal cable routing
Suspension Fork
Carbon, disc, 110x12 mm thru axle, flat mount 160/160 mm, internal brake cable routing, multiple mounting points
Drivetrain
Rear Derailleur
Shimano GRX RD-RX810, 11-speed
Front Derailleur
Shimano GRX FD-RX810
Shift Levers
Shimano GRX ST-RX600, 11-speed
Cassette
Shimano 105 R7000, 11-speed
Crank
Shimano GRX FC-RX600, 11-speed
Bottom Bracket
BSA
Chain
Shimano CN-HG601, 11-speed
Wheels
Rims
DT Swiss G1800, 24-622, 12x110 mm / 12x148 mm, 25 mm height
Tires
WTB Riddler, 700 x 45C
Brakes
Brakes
Disc
Brake Levers
Shimano GRX BL-RX600, 11-speed
Cockpit
Stem
Aluminium, 31,8 mm, 6°
Handlebar
FOCUS JD RA85*, 31,8 mm, drop: 116 mm, reach: 74 mm, flare: 10° FOCUS Magix RHB-A6543*, 31,8 mm, drop: 125 mm, reach: 80 mm, flare: 16°
Headset
ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S.
Seat
Saddle
WTB SL8
Seatpost
Aluminium, 27.2 mm, 0 mm set-back
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.535 mm | 1.532 mm | 1.509 mm | 1.5 mm | 1.531 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 601 mm | 616 mm | 637 mm | 658 mm | 678 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 72 mm | 72 mm | 71 mm | 72 mm | 71 mm |
| Stack | 568 mm | 582 mm | 596 mm | 615 mm | 643 mm |
| Reach | 370 mm | 380 mm | 395 mm | 410 mm | 420 mm |
| Top Tube Length | 532 mm | 552 mm | 571 mm | 592 mm | 610 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 450 mm | 490 mm | 520 mm | 550 mm | 577 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 114 mm | 129 mm | 144 mm | 164 mm | 194 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1015 mm | 1030 mm | 1051 mm | 1072 mm | 1092 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
ATLAS 6.8 is a Focus Atlas model. There are 14 bikes that carry this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2024 for 2646$. Comparing the average cost of a Gravel bike to this one, you will see that ATLAS 6.8 price is 7.47% more expensive.
Average weight for Gravel bikes
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much heavier than average, ATLAS 6.8 has a weight of 10.8 kg (23.81 lbs). In conclusion, the average Gravel bike weighs 32.84% less than ATLAS 6.8.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on ATLAS 6.8 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Focus ATLAS 6.8 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
ATLAS 6.8 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
