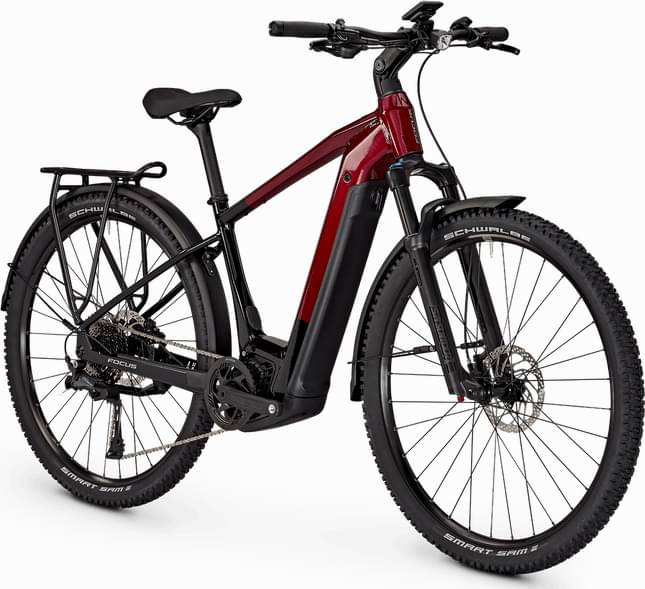

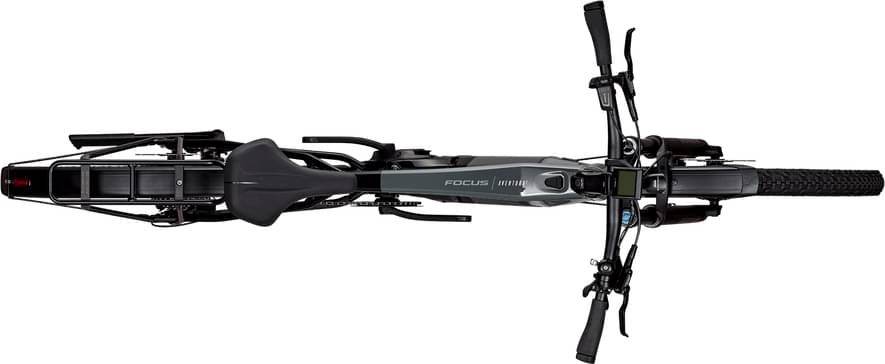

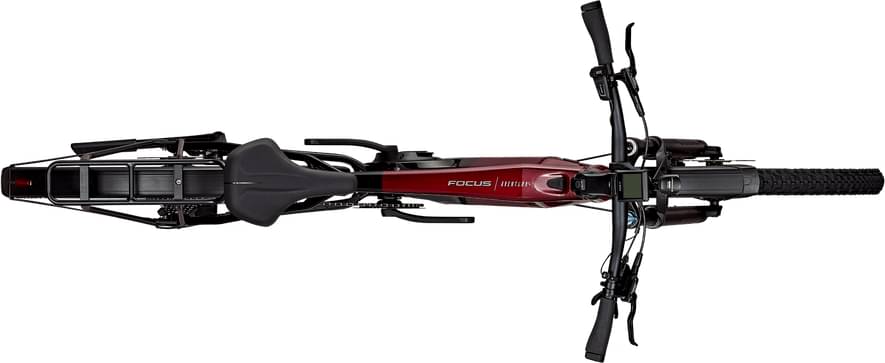

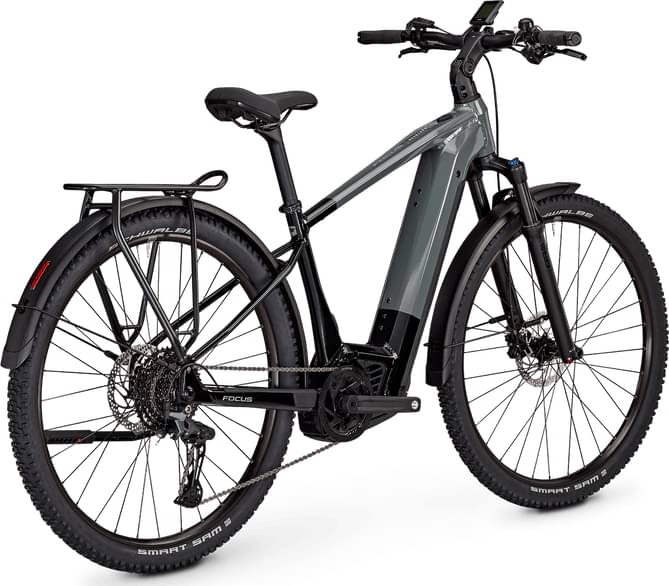

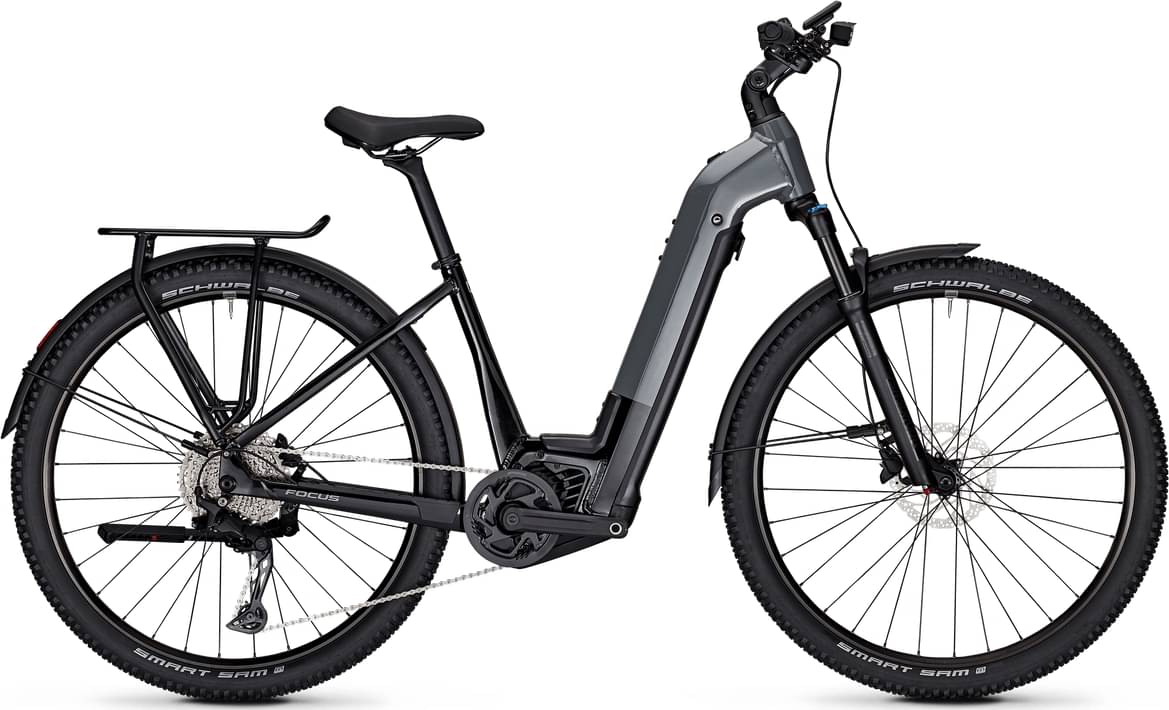

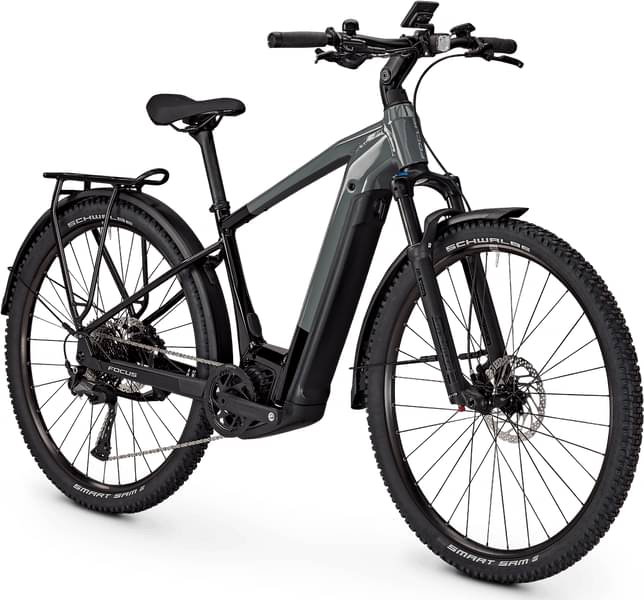

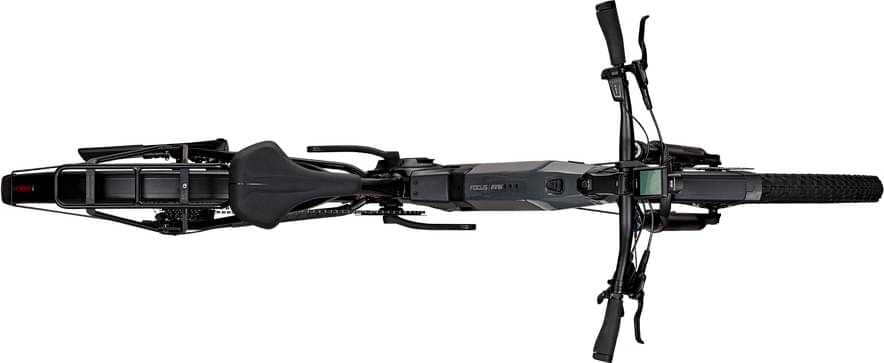

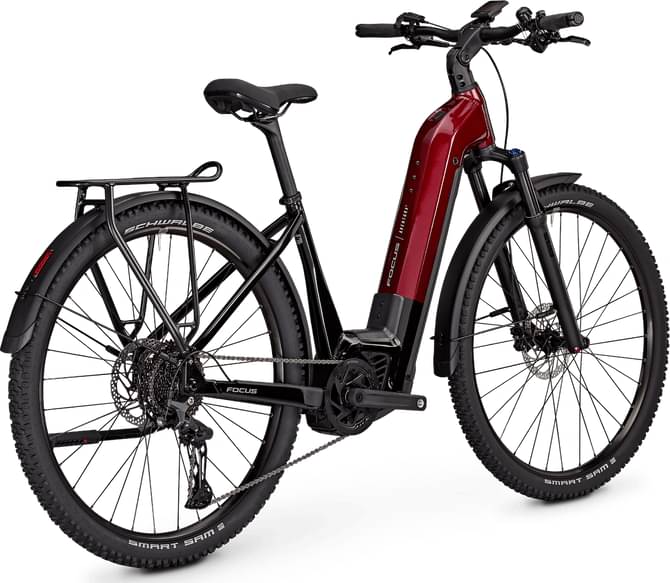

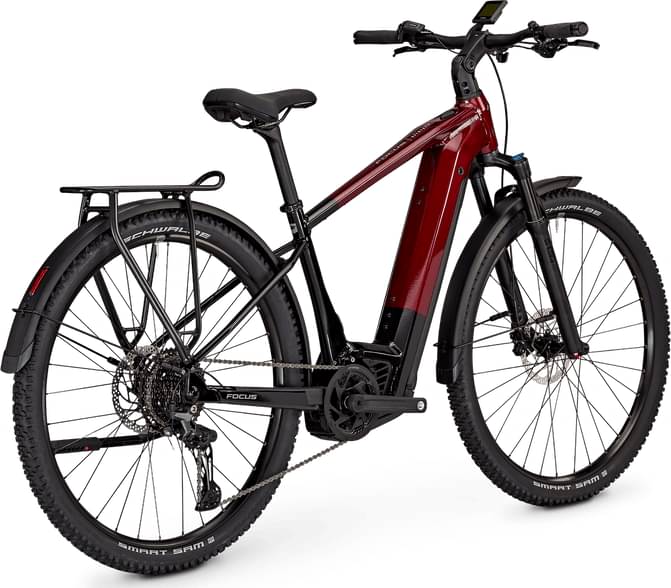

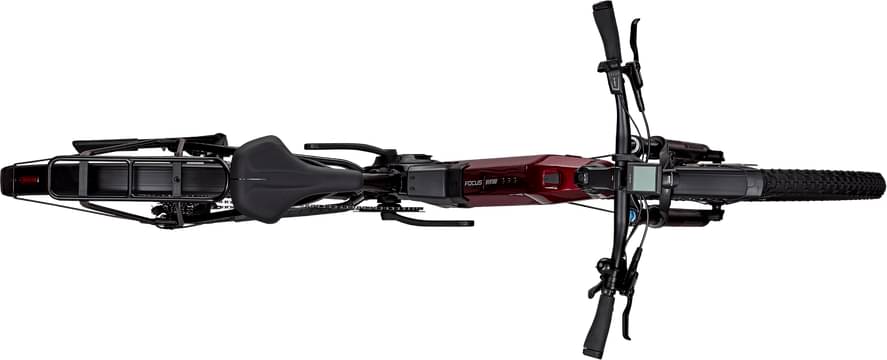

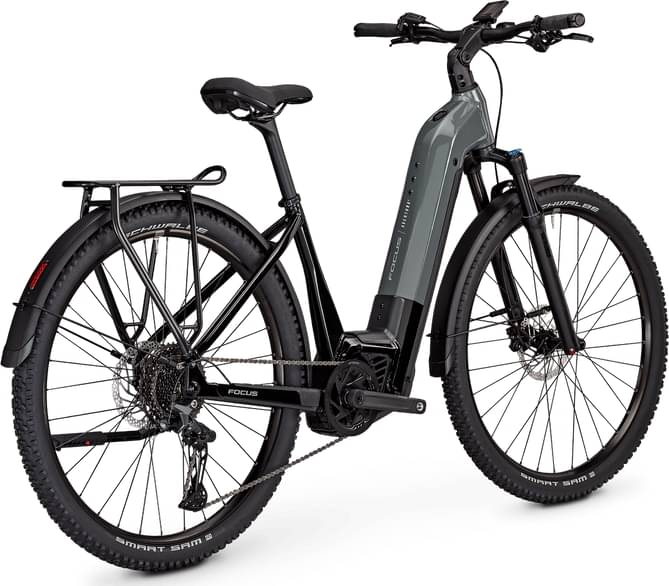

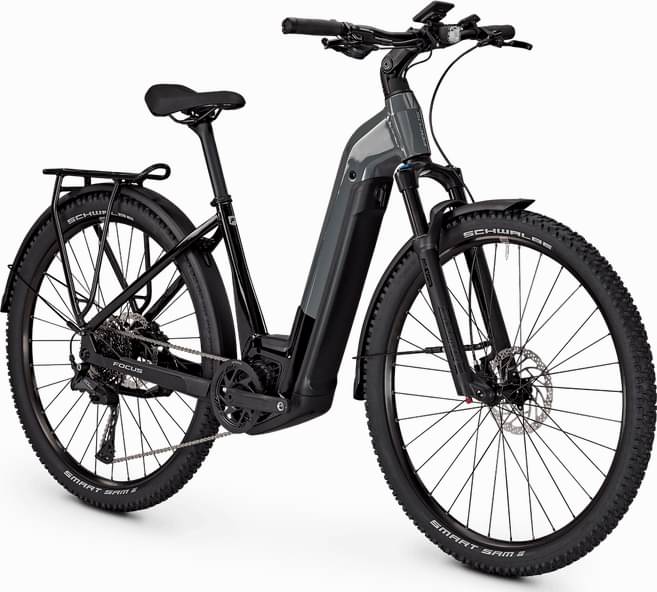

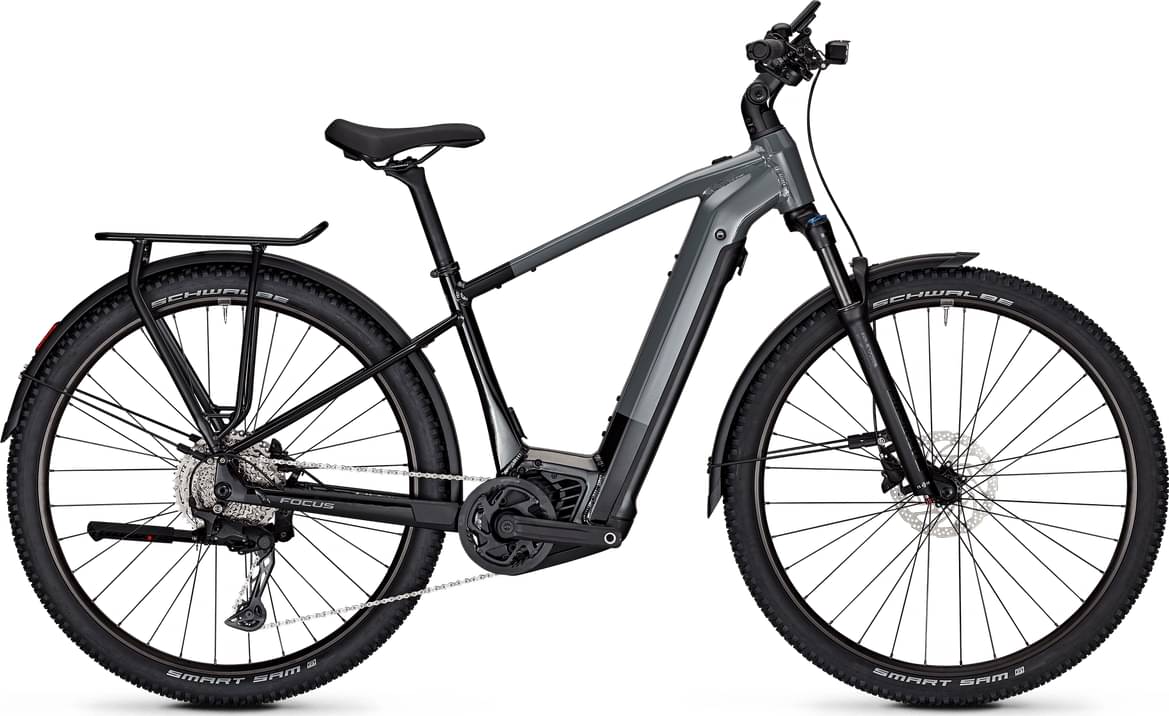

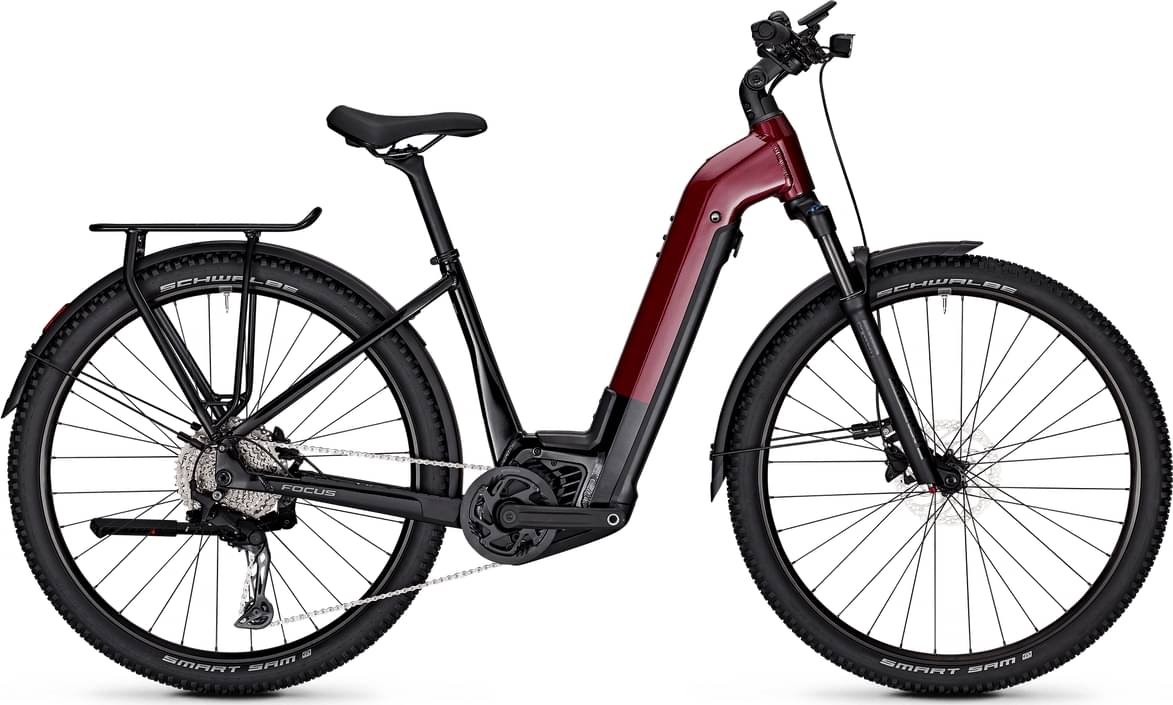

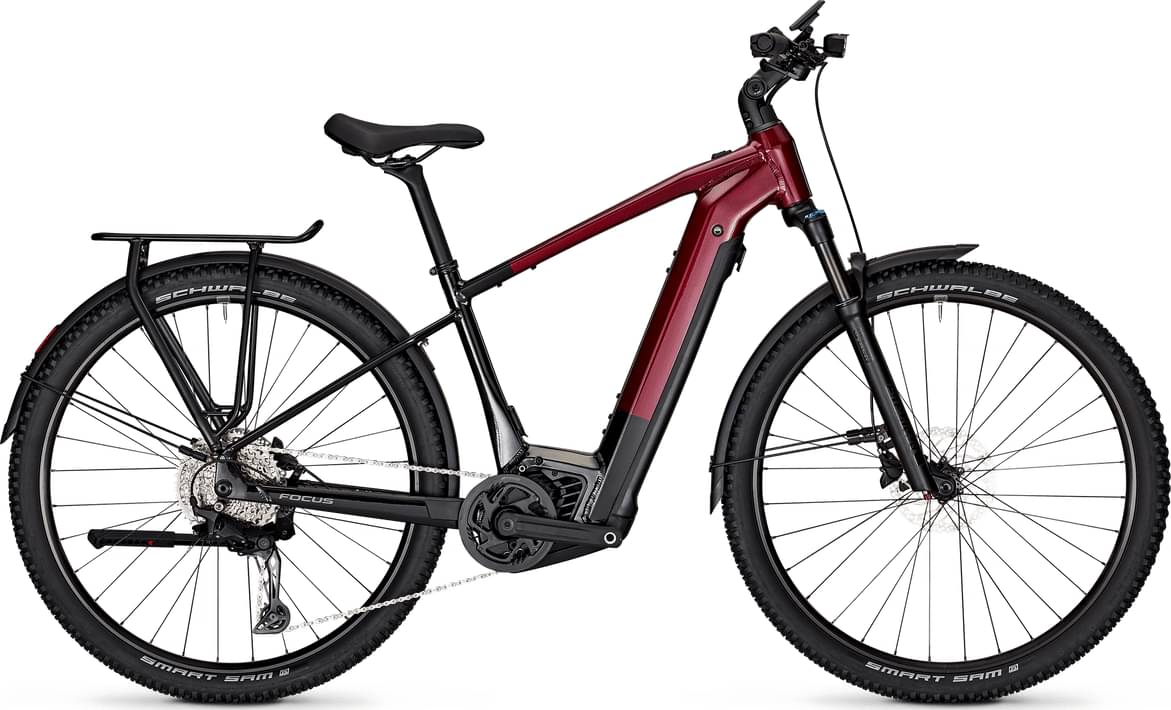

Focus AVENTURA² 6.8 2024
2024 E-bike
Estimate price |
5,118$
Weight | 26.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCR Air
-
Groupset CUES, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery 625 Wh,750 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 hydroformed aluminium, 3D forging, 148x12 mm thru axle, USB-C port, internal cable routing, post mount 180 mm
Suspension Fork
SR Suntour XCR 34 LO Air, 15x110 mm
Drivetrain
Rear Derailleur
Shimano Cues
Shift Levers
Shimano Cues
Cassette
Shimano CS-LG 400, 11-G.
Crank
FSA CK-320, aluminium
Bottom Bracket
Integrated in Drive Unit
Chain
Shimano CN-HG601, 11-speed
Wheels
Front Hub
Shimano TC500, 15x110 mm
Rear Hub
Shimano TC500, 148 x 12 mm
Rims
Rodi TRYP25, 25-622
Tires
Schwalbe Smart Sam 2.25, 57-622
Brakes
Brakes
Disc
Brake Levers
Shimano MT200, 2-piston, hydraulic disc brake
Cockpit
Stem
Aluminium, adjustable, 90 mm
Handlebar
Aluminium, 760 mm, flatbar, backsweep: 9°, 35,0 mm
Headset
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated
Seat
Saddle
Selle Royal Vivo
Seatpost
Aluminium, 31.6 mm
Motor & Battery
Motor
Bosch Performance Line CX Smart System, 36 V / 250 W / 85 Nm
Battery
625 Wh,750 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.625 mm | 1.548 mm | 1.491 mm | 1.467 mm |
| Front Center | 690 mm | 710 mm | 728 mm | 754 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 90 mm | 90 mm | 95 mm | 96 mm |
| Stack | 650 | 650 | 656 mm | 675 mm |
| Reach | 400 mm | 420 mm | 440 mm | 460 mm |
| Top Tube Length | 593 mm | 613 mm | 634 mm | 660 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 400 mm | 440 mm | 480 mm | 520 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 135 mm | 135 mm | 140 mm | 160 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1152 mm | 1172 mm | 1191 mm | 1217 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
