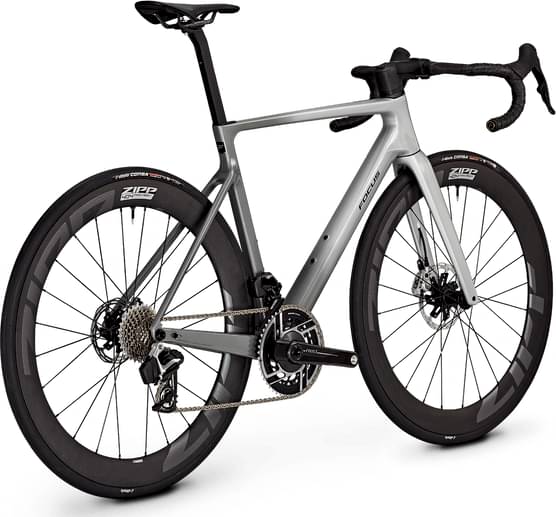

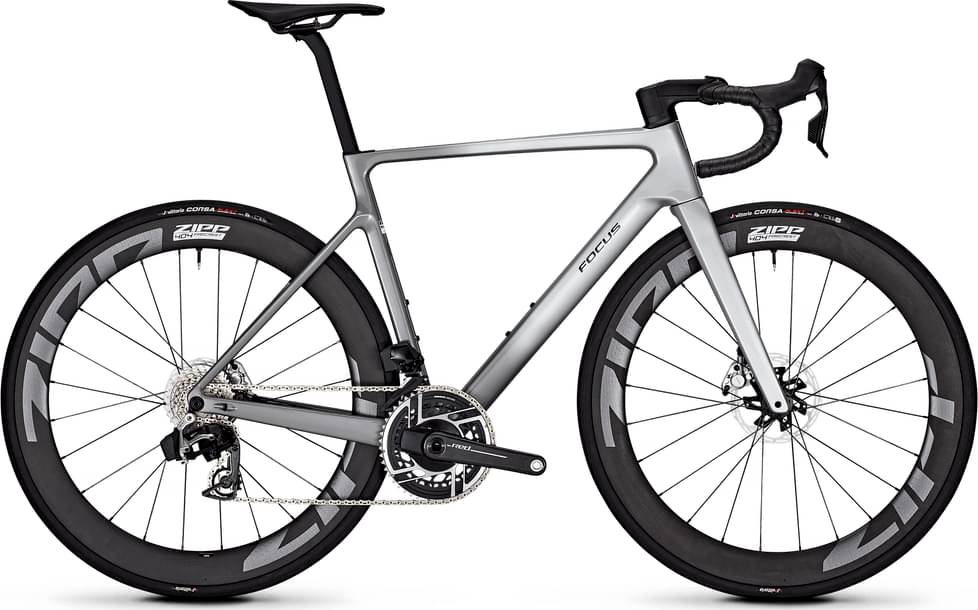

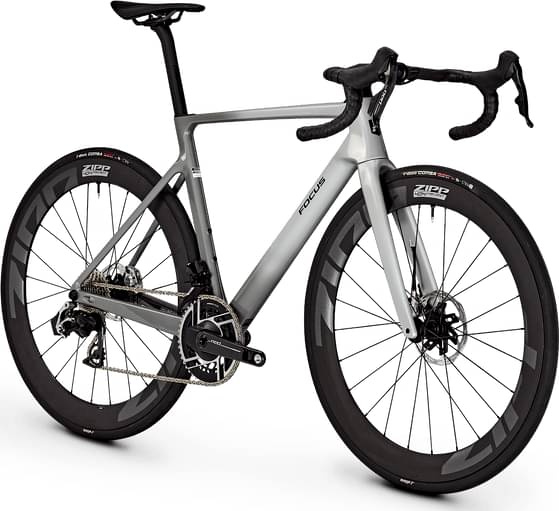

Focus IZALCO MAX 9.0 2024
2024 Road
Estimate price |
11,632$
Weight | 7.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Groupset RED AXS -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MAX technology carbon, disc, 142x12 mm thru axle, flat mount 160/140 mm
Suspension Fork
MAX technology carbon, 100x12 mm thrue axle, flat mount
Drivetrain
Rear Derailleur
SRAM RED AXS, 12-speed
Front Derailleur
SRAM RED AXS
Shift Levers
SRAM RED HRD
Cassette
SRAM RED XG-1290, 10-30T
Crank
SRAM RED, 48/35 T
Bottom Bracket
SRAM DUB86, PF41
Chain
SRAM RED
Wheels
Rims
ZIPP 404 Firecrest, Carbon, 58mm, 23-622
Tires
Vittoria Corsa G2.0, tubeless ready, 28-622 / Vittoria Corsa G2.0, tubeless ready, 28-622
Brakes
Brakes
SRAM RED E1 / SRAM RED E1
Cockpit
Stem
FOCUS C.I.S. 2.0 integrated, 8°
Handlebar
ZIPP 80 SL Race, Carbon, 80 mm, 125 mm
Grips
FOCUS Bartape SL
Headset
ACROS IS 52/286-IS52/40 (ICR), FOCUS integrated C.I.S.
Seat
Saddle
fi'zi:k Vento Antares R1
Seatpost
FOCUS Aero Carbon, D-shape, set-back: 15 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.368 mm | 1.405 mm | 1.453 mm | 1.431 mm | 1.476 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 264 mm | 264 mm |
| Front Center | 577 mm | 576 mm | 580 mm | 605 mm | 609 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 70 mm | 65 mm | 62 mm | 62 mm | 59 mm |
| Stack | 513 mm | 531 mm | 552 mm | 571 mm | 592 mm |
| Reach | 375 mm | 378 mm | 380 mm | 399 mm | 401 mm |
| Top Tube Length | 517 mm | 530 mm | 543 mm | 568 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 500 mm | 520 mm | 540 mm | 560 mm | 580 mm |
| Head Tube Angle | 71 ° | 72 ° | 72.5 ° | 72.5 ° | 73 ° |
| Head Tube Length | 100 mm | 115 mm | 135 mm | 155 mm | 175 mm |
| Chainstay Length | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 976 mm | 975 mm | 979 mm | 1004 mm | 1008 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 72 mm | 72 mm |
| Standover Height | 762 mm | 778 mm | 795 mm | 814 mm | 835 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
