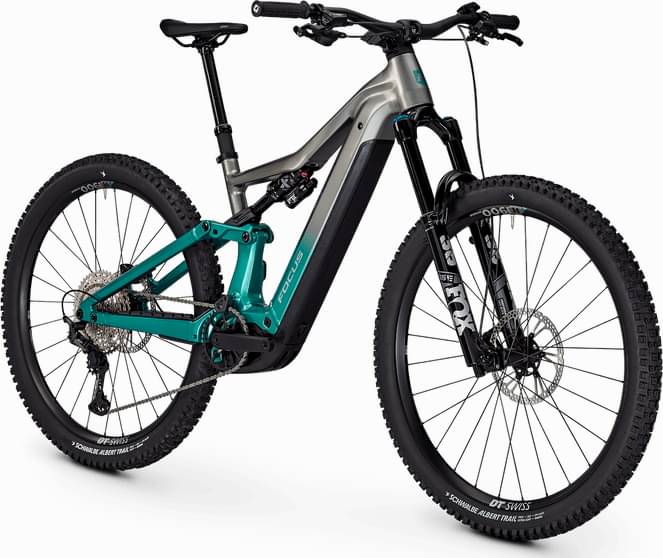

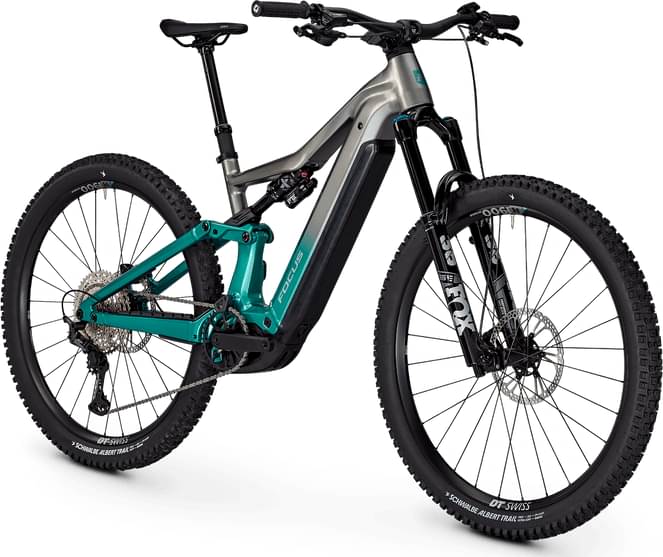

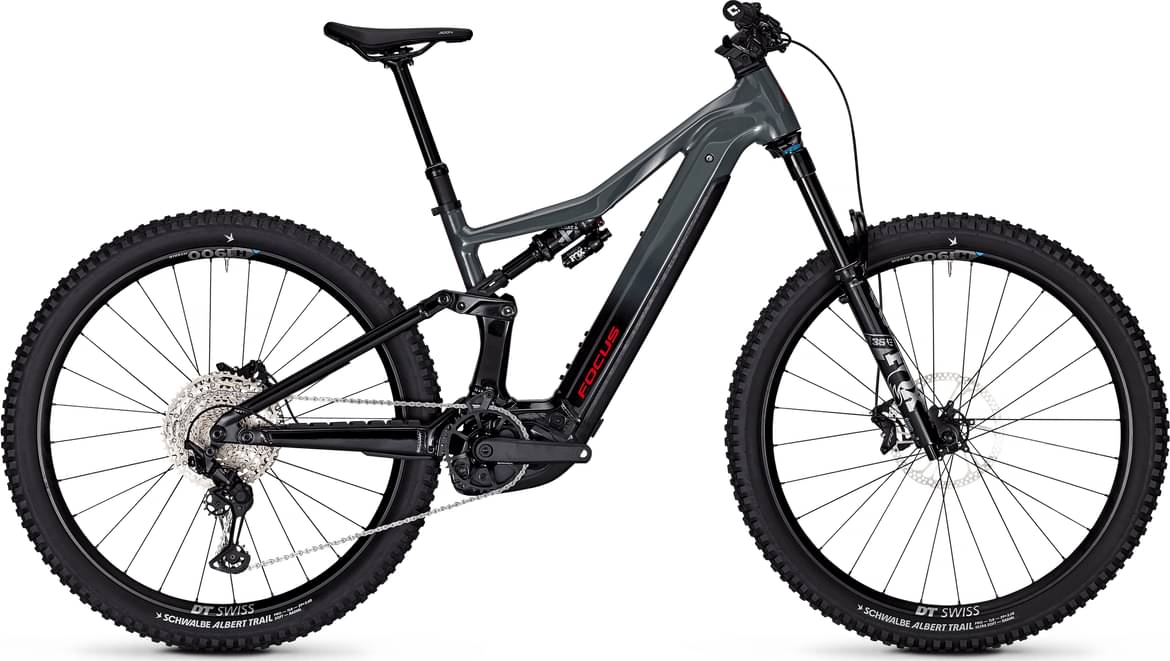

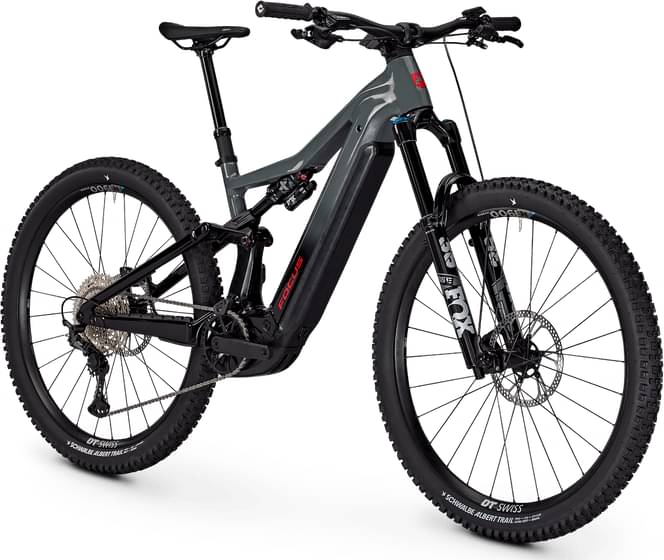

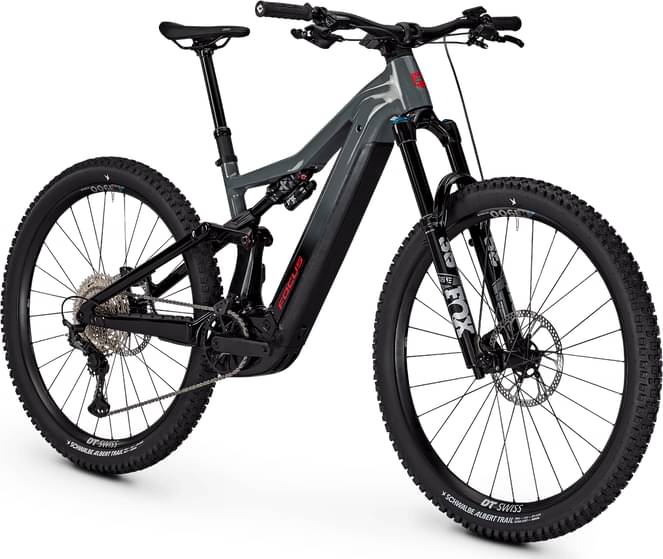

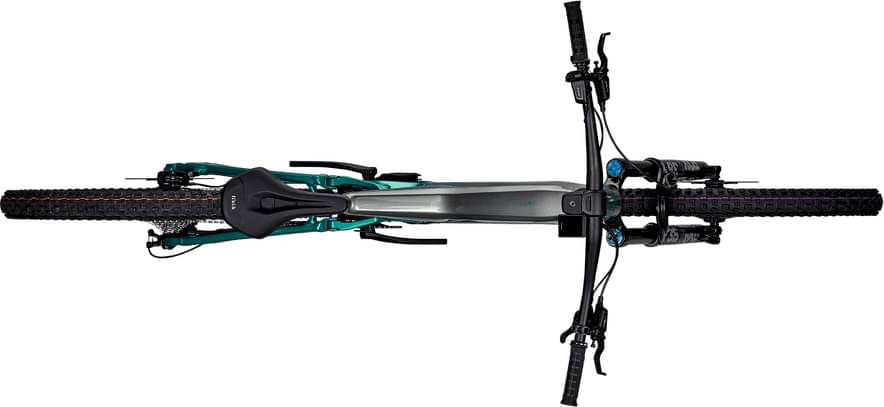

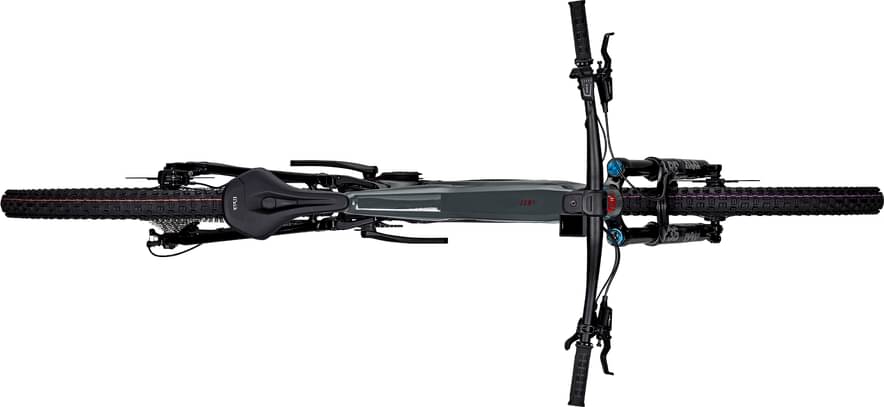

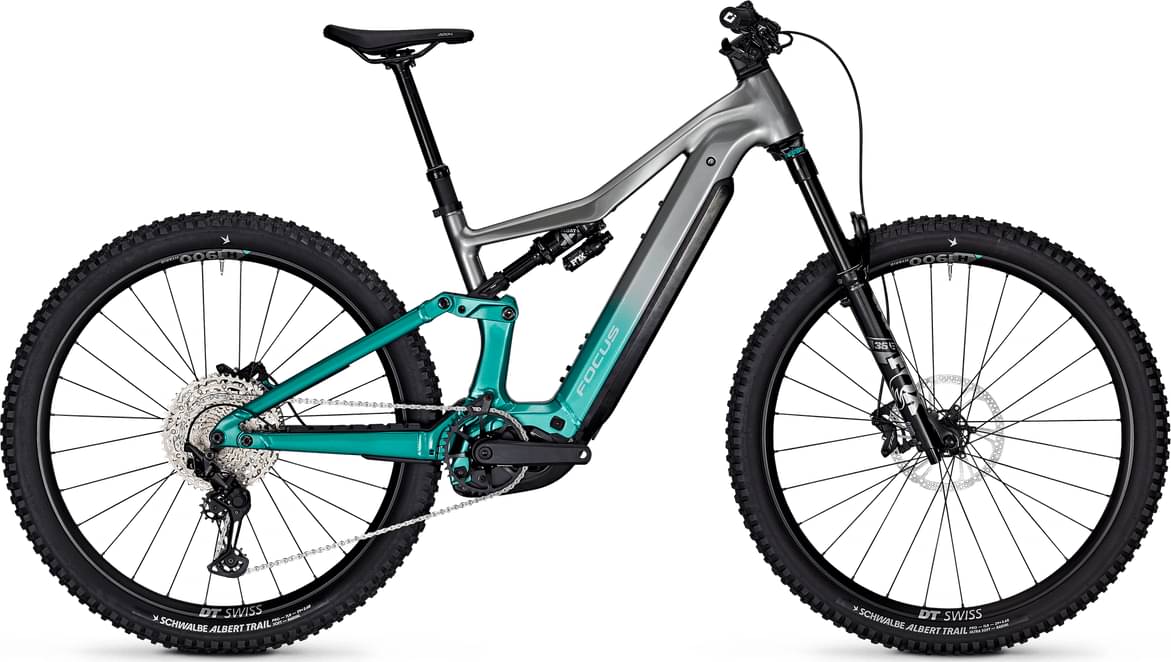

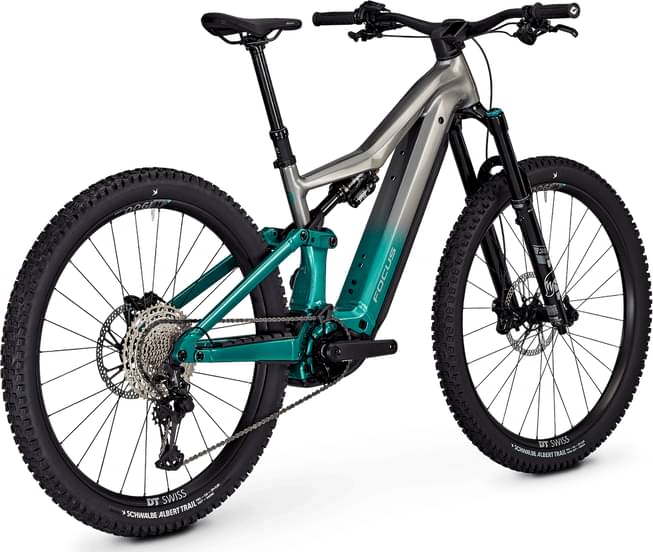

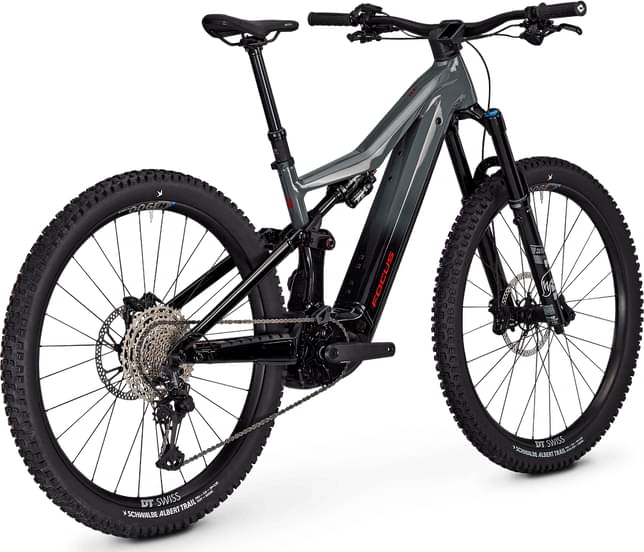

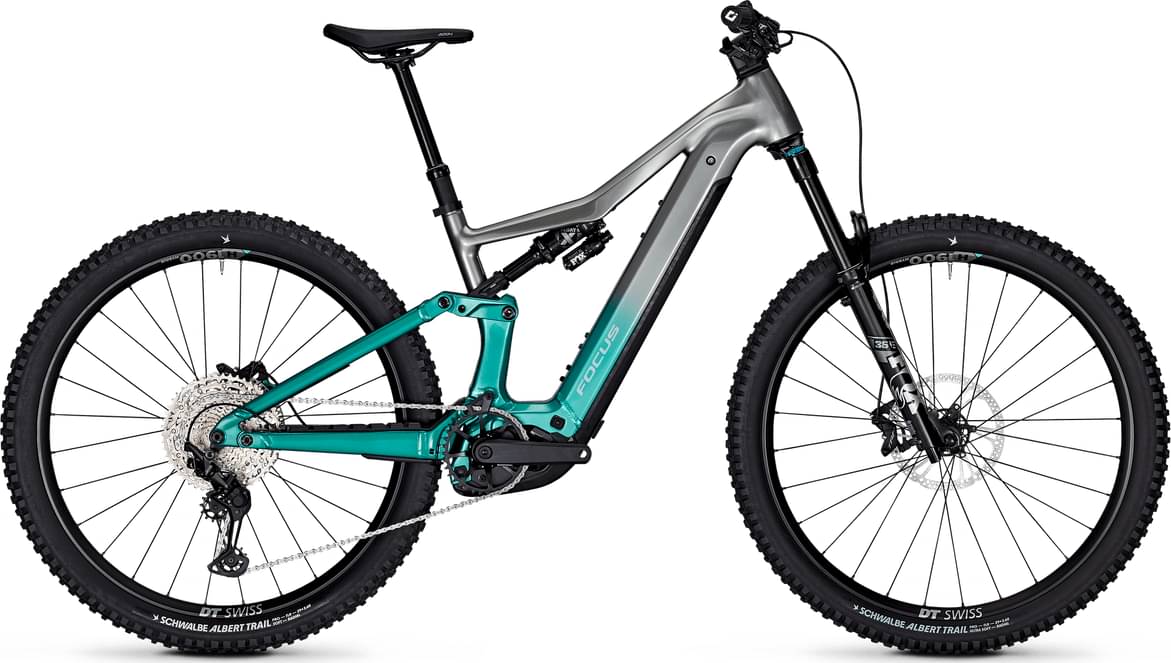

Focus JAM² 6.9 2024
2024 E-bike
Estimate price |
7,677$
Weight | 25.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Elite Float 36
-
Groupset XT, Deore -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube Li-Ion (600 Wh),Bosch PowerTube Li-Ion (800 Wh) -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 hydroformed aluminium, 150 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm
Suspension Fork
Fox 36 Performance Elite, Grip X2, 160 mm
Rear Shock
Fox Float X Performance, 150 mm
Drivetrain
Rear Derailleur
Shimano Deore XT, 12-speed
Shift Levers
Shimano Deore
Crank
Samox, 165 mm
Chain
Shimano CN-M6100
Wheels
Rims
DT Swiss H 1900, alloy, 29"
Tires
Schwalbe Albert, Super Trail, ADDIX Ultra Soft, 29 x 2,6" / Schwalbe Albert, Super Trail, ADDIX Soft, 29 x 2,6"
Brakes
Brakes
TRP DH-R EVO, 4-piston / TRP DH-R EVO, 4-piston
Cockpit
Stem
FOCUS C.I.S. 2.0, 40 mm
Handlebar
Alloy, width: 800 mm, rise: 30 mm
Grips
ODI Elite Pro
Headset
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated
Seat
Saddle
fi'zi:k Aidon X5
Seatpost
Post Moderne DP-212, S / M /L / XL: 125 / 170 / 170 / 200 mm, 34,9 mm
Motor & Battery
Motor
Bosch Performance Line CX, 85 NM
Battery
Bosch PowerTube Li-Ion (600 Wh),Bosch PowerTube Li-Ion (800 Wh)
Remote
Bosch Kiox 300 + LED Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.482 mm | 1.404 mm | 1.35 mm | 1.288 mm |
| Bottom Bracket Height | 349 mm | 349 mm | 349 mm | 349 mm |
| Front Center | 756 mm | 790 mm | 819 mm | 854 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 126 mm | 126 mm | 126 mm | 126 mm |
| Stack | 630 mm | 639 mm | 648 mm | 657 mm |
| Reach | 425 mm | 455 mm | 480 mm | 510 mm |
| Top Tube Length | 576 mm | 608 mm | 636 mm | 668 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 440 mm | 460 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1205 mm | 1239 mm | 1268 mm | 1303 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Standover Height | 783 mm | 783 mm | 783 mm | 783 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
