Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Rhythm Float 32
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Fazua 250W 60Nm mid-drive -
Battery 250 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
F.I.T. Technology Carbon frame, 148x12 mm through axle, internal cable routing, Post Mount 160 mm
Suspension Fork
Fox 32 Rhythm, 2-position remote, 110x15 mm QR, 100 mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT 8000, 11-speed
Shift Levers
Shimano SLX 7000
Wheels
Rims
Rodi Ready 27, 622-27, Novatec, 148x12 mm / 110x15 mm
Tires
Schwalbe Nobby Nic Evo Addix Speedgrip, 2.25
Brakes
Brakes
Shimano SLX BR-M7000, 180 mm / 160 mm
Brake Levers
SHIMANO BRM7000
Cockpit
Stem
BBB Race, aluminium, 31.8 mm
Handlebar
BBB, aluminium, flatbar, 720mm, rise: 0mm, backsweep: 9degree
Seat
Seatpost
BBB FlyPost, carbon, 27,2 mm
Motor & Battery
Motor
FAZUA evation, 60 Nm, 250 W
Battery
250 Wh
Remote
FAZUA evation 1.0 remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.43 mm | 1.43 mm |
| Bottom Bracket Height | 306 mm | 306 mm | 306 mm |
| Front Center | 674 mm | 689 mm | 712 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 91 mm | 91 mm | 91 mm |
| Stack | 623 mm | 626 mm | 647 mm |
| Reach | 423 mm | 438 mm | 453 mm |
| Top Tube Length | 595 mm | 611 mm | 631 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 69.8 ° | 69.8 ° | 69.8 ° |
| Head Tube Length | 104 mm | 107 mm | 130 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1122 mm | 1138 mm | 1161 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

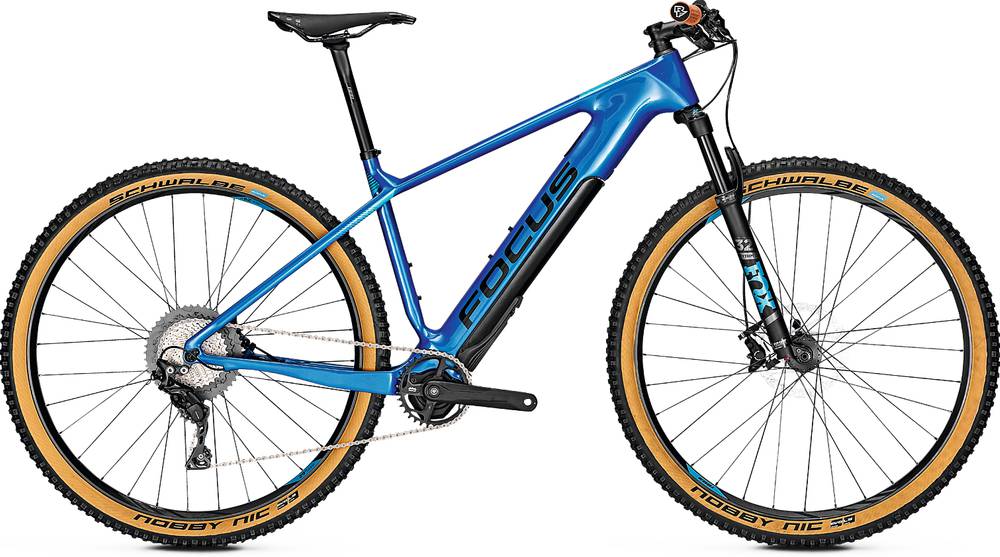

RAVEN² 9.8 completes the Focus E Raven model. There are 9 e-bikes that carry this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry e-bikes average price
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
RAVEN² 9.8 components
Fork
The Fox Rhythm Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When it comes to wheels, the RAVEN² 9.8 e-bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The RAVEN² 9.8 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Focus RAVEN² 9.8 e-bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
