Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Rhythm Float 32
-
Groupset XT, SLX -
Suspension Hardtail -
Motor Fazua 250W 60Nm mid-drive -
Battery 250 Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
F.I.T. Technology Carbon frame, 148x12 mm through axle, internal cable routing, Post Mount 160 mm
Suspension Fork
Fox 32 Rhythm, 2-position remote, 110x15 mm QR, 100 mm travel
Drivetrain
Rear Derailleur
Shimano Deore XT 8000, 11-speed
Shift Levers
Shimano SLX 7000
Crank
FSA Alu
Wheels
Rims
Rodi Ready 27, 622-27, Novatec, 148x12 mm / 110x15 mm
Tires
Schwalbe Nobby Nic Evo Addix Speedgrip, 2.25
Brakes
Brakes
Shimano SLX BR-M7000, 180 mm / 160 mm
Brake Levers
SHIMANO BRM7000
Cockpit
Stem
BBB Race, aluminium, 31.8 mm
Handlebar
BBB, aluminium, flatbar, 720mm, rise: 0mm, backsweep: 9degree
Seat
Seatpost
BBB FlyPost, carbon, 27,2 mm
Motor & Battery
Motor
FAZUA evation, 60 Nm, 250 W
Battery
250 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.43 mm | 1.43 mm |
| Bottom Bracket Height | 306 mm | 306 mm | 306 mm |
| Front Center | 674 mm | 689 mm | 712 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 91 mm | 91 mm | 91 mm |
| Stack | 623 mm | 626 mm | 647 mm |
| Reach | 423 mm | 438 mm | 453 mm |
| Top Tube Length | 595 mm | 611 mm | 631 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm |
| Head Tube Angle | 69.8 ° | 69.8 ° | 69.8 ° |
| Head Tube Length | 104 mm | 107 mm | 130 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1122 mm | 1138 mm | 1161 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

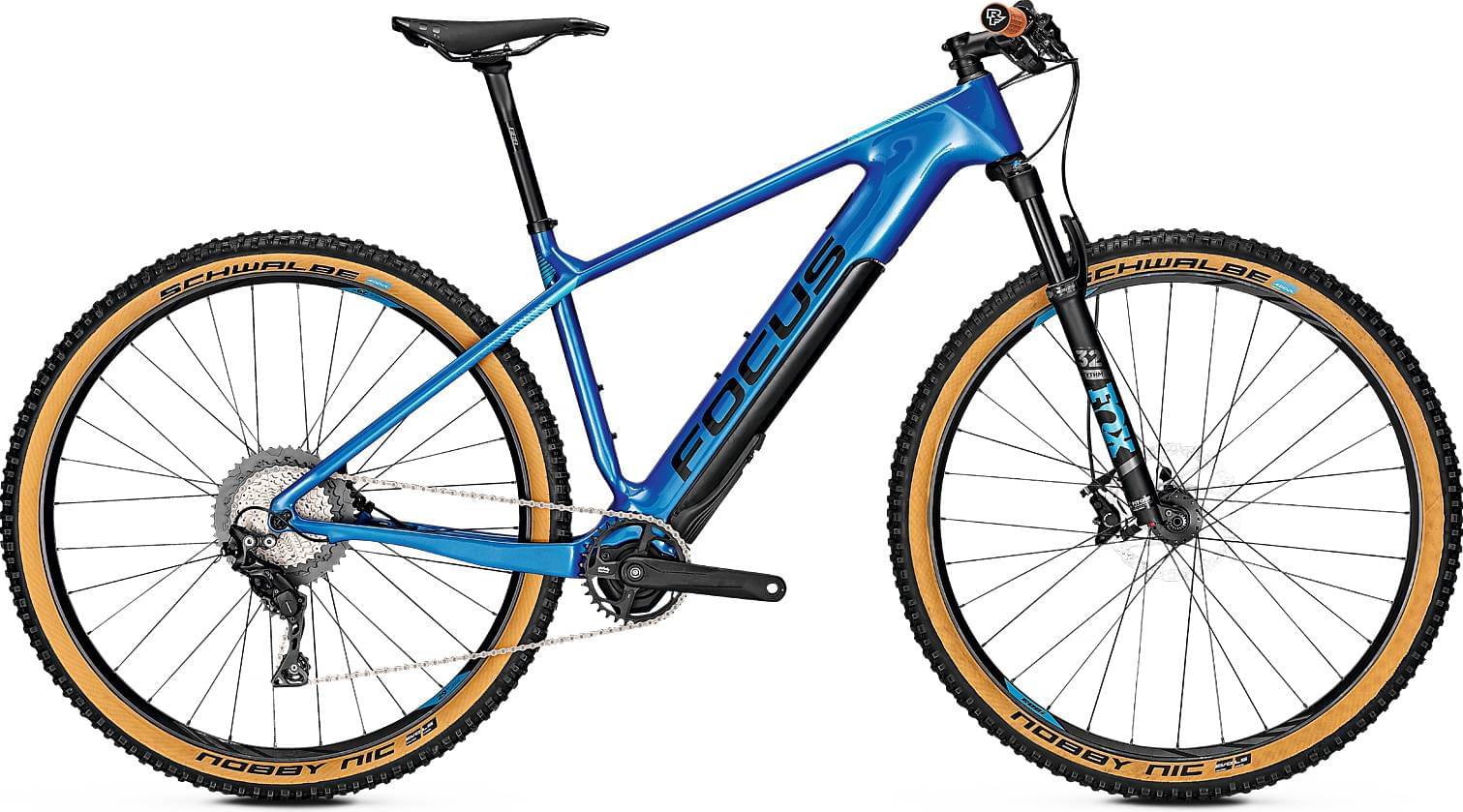

RAVEN² 9.8 completes the Focus E Raven2 model. There are 9 e-bikes that carry this model name.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry e-bikes
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The Fox Rhythm Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The RAVEN² 9.8 2019 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
RAVEN² 9.8 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
