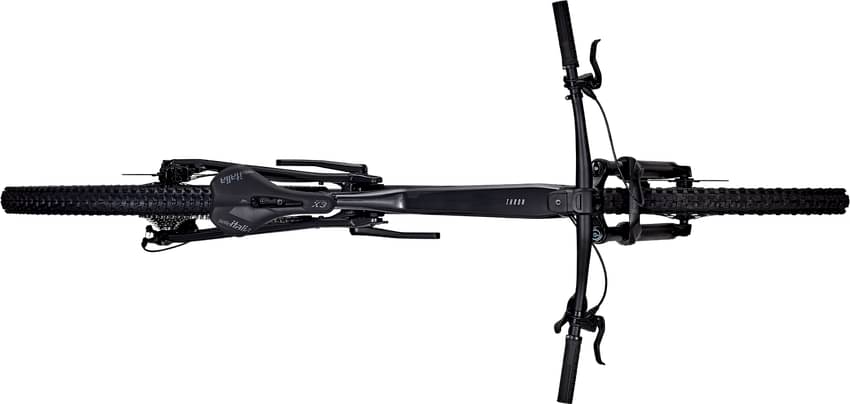

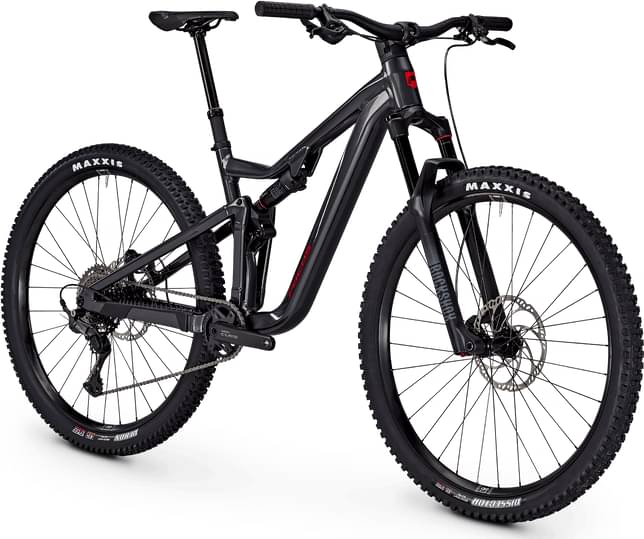

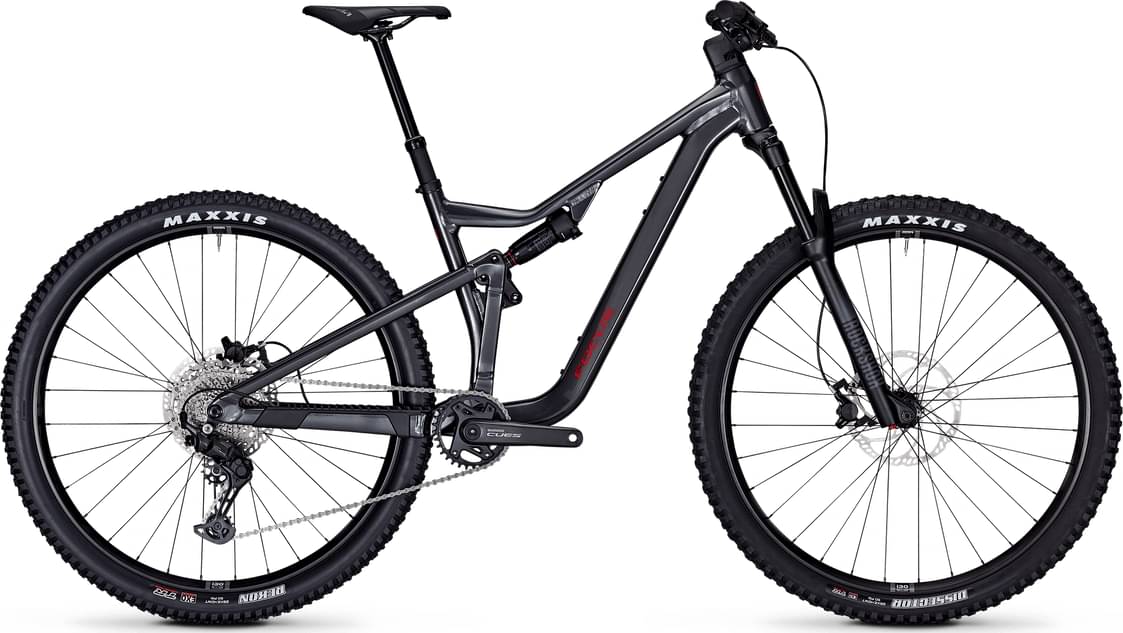

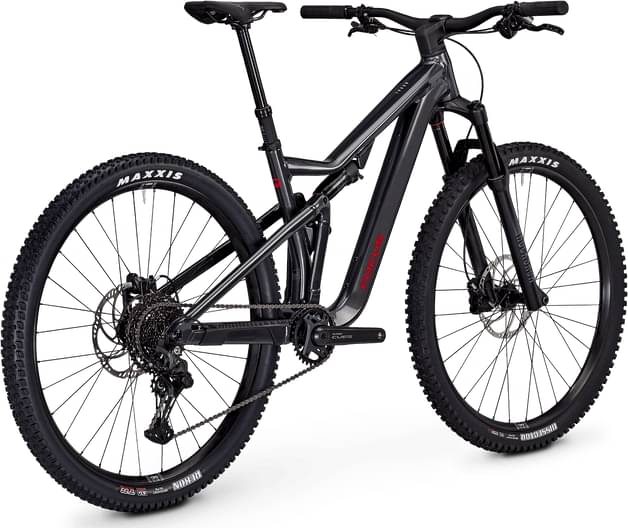

Focus THRON 6.8 2024
2024 Mountain
Estimate price |
2,907$
Weight | 16.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Travel Rear 130mm -
Fork RockShox Recon Gold RL
-
Groupset CUES -
Suspension Full -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 hydroformed aluminium, 130 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm
Suspension Fork
Rock Shox Recon Gold RL, Debon Air, Motion Control, 130 mm
Rear Shock
Rock Shox Deluxe Select R, DebonAir+, 130 mm
Drivetrain
Rear Derailleur
Shimano Cues, 10-speed
Shift Levers
Shimano Cues
Cassette
Shimano CS-LG400, 11-43T
Crank
Shimano Cues, 170 mm
Bottom Bracket
Shimano Cues, BSA68
Chain
Shimano CN-LG500
Wheels
Front Hub
Shimano HB-TC500
Rear Hub
Shimano FH-TC500
Rims
WTB STi30, alloy, 29"
Tires
Maxxis Dissector, EXO, 29 x 2.4" | Maxxis Recon, EXO, 29 x 2.4"
Brakes
Brakes
Magrura MT30, 2-piston | Magrura MT30, 2-piston
Cockpit
Stem
FOCUS C.I.S. 2.0, 40 mm
Handlebar
Alloy, width: 800 mm, rise: 30 mm
Grips
VP Lock-On Grips
Headset
ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated
Seat
Saddle
Selle Italia X3 Boost
Seatpost
Post Moderne DP-212, S / M /L / XL: 125 / 170 / 200 / 200 mm, 31,6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.476 mm | 1.398 mm | 1.347 mm | 1.302 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 706 mm | 740 mm | 778 mm | 820 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 115 mm | 116 mm | 116 mm | 112 mm |
| Stack | 605 mm | 615 mm | 633 mm | 651 mm |
| Reach | 410 mm | 440 mm | 470 mm | 500 mm |
| Top Tube Length | 572 mm | 605 mm | 640 mm | 674 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 470 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 110 mm | 130 mm | 160 mm |
| Chainstay Length | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1139 mm | 1173 mm | 1211 mm | 1253 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Standover Height | 755 mm | 755 mm | 755 mm | 755 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
