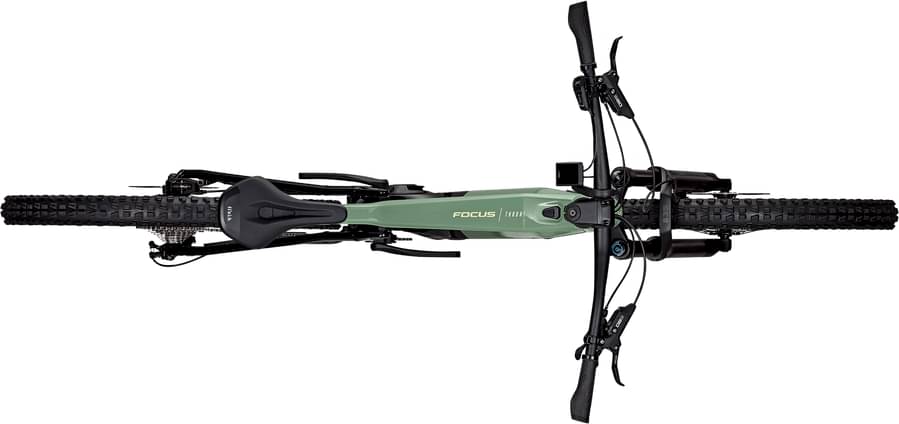

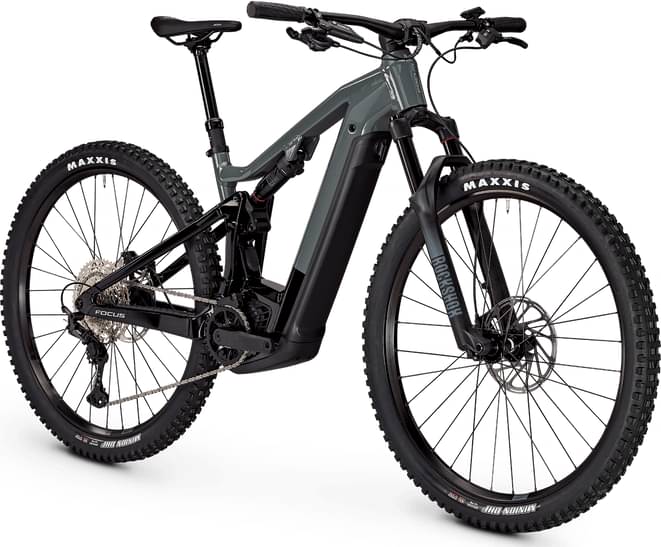

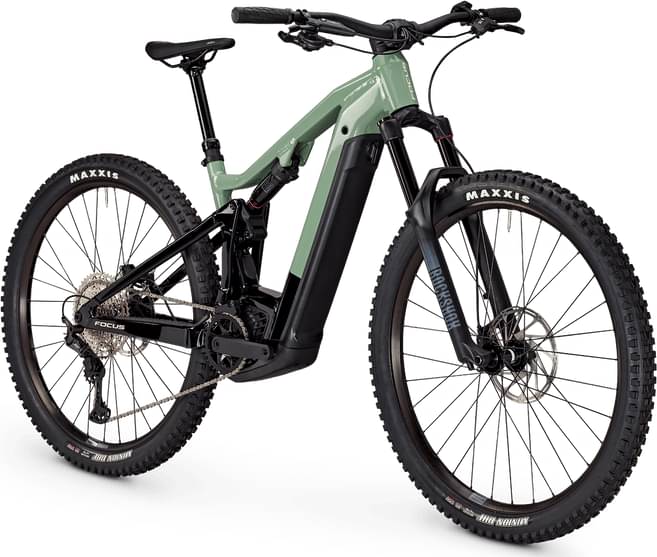

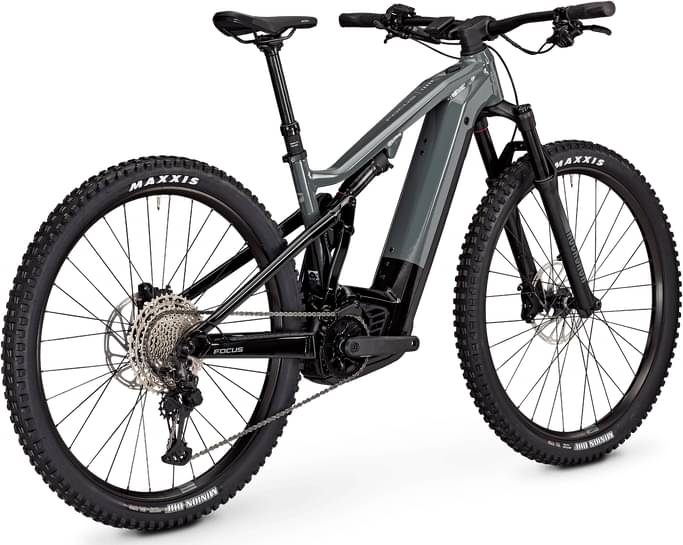

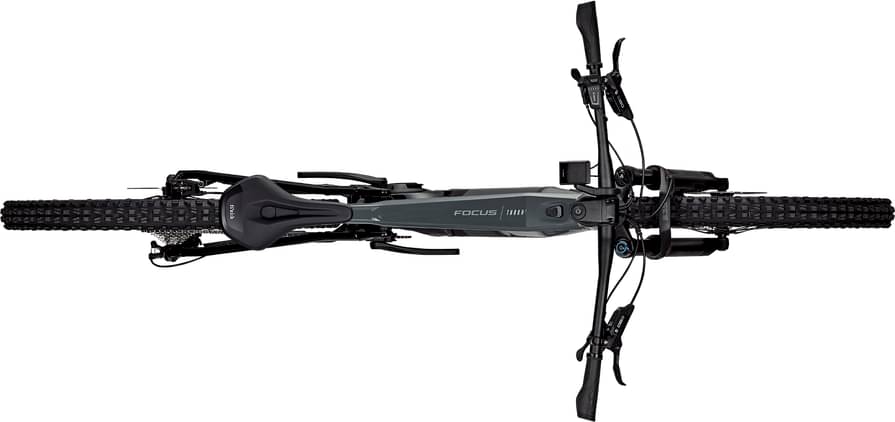

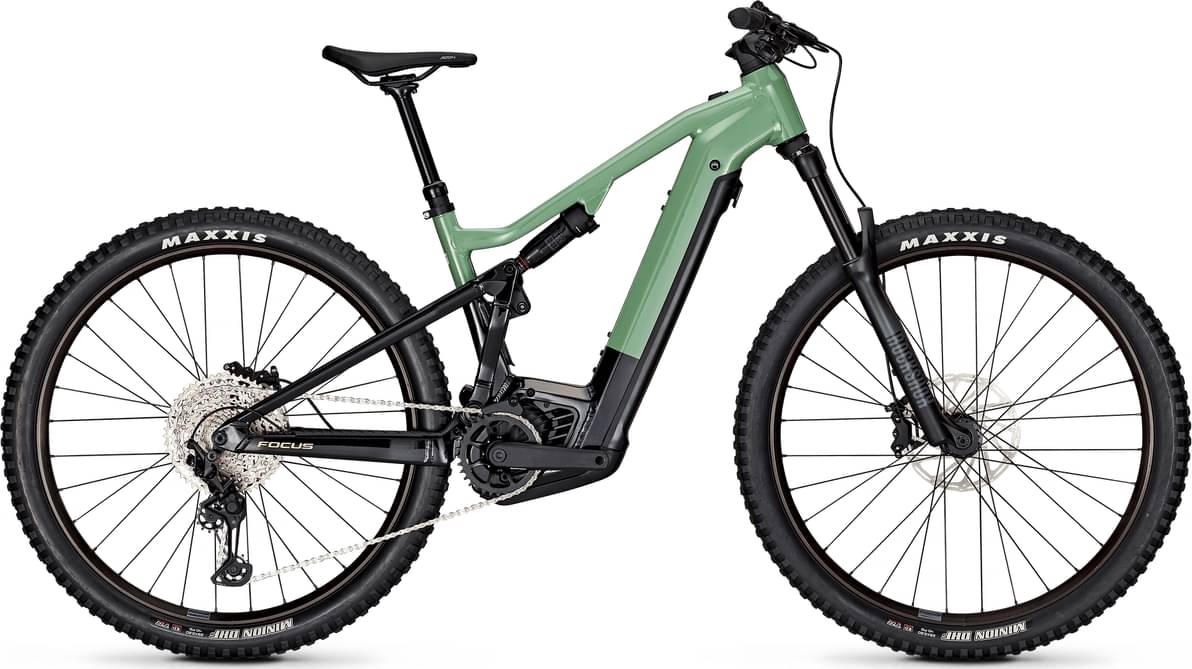

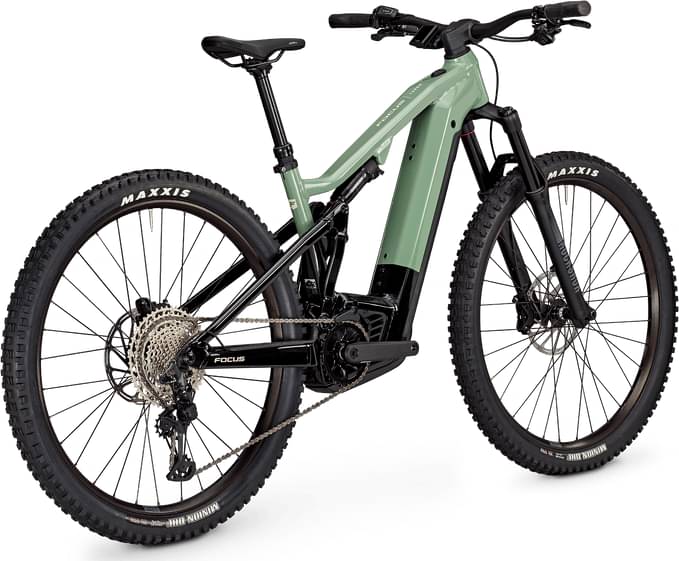

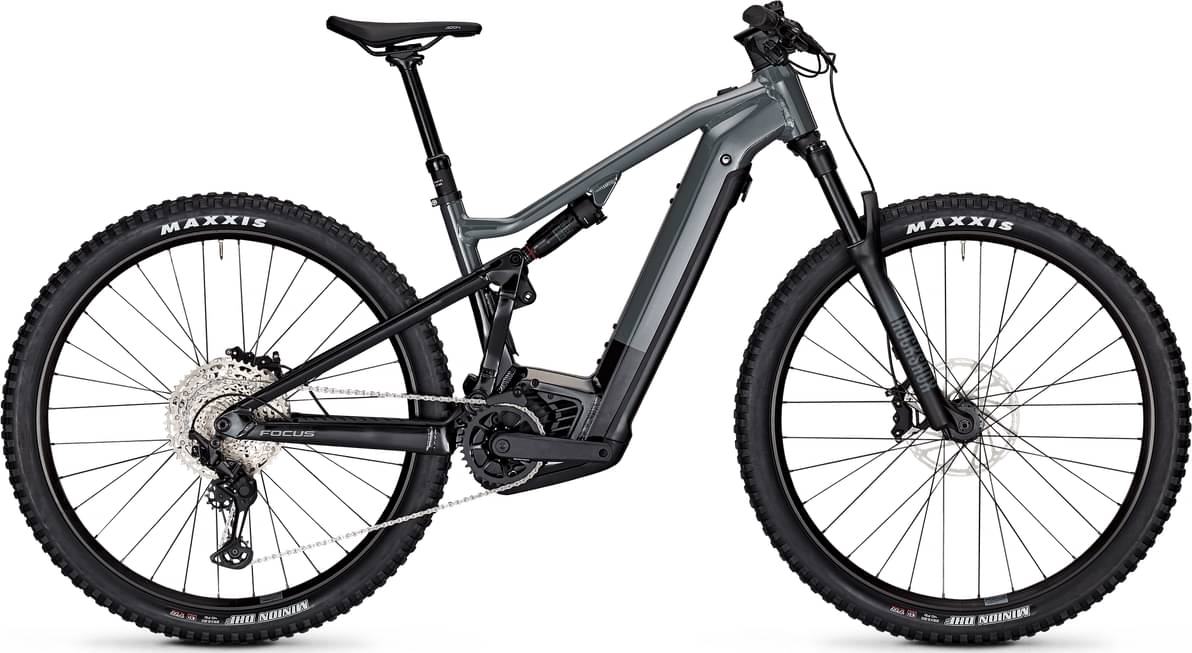

Focus THRON² 6.8 2023
2023 E-bike
Estimate price |
6,514$
Weight | 26.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 130mm -
Travel Rear 130mm -
Fork Suntour AION
-
Groupset XT -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch 625 IntubeWh,Bosch PowerTube Li-Ion 36 V / 20,1 Ah (750 Wh) -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 hydroformed aluminium, 3D forging, 130mm F.O.L.D. kinematics, 148x12 mm thru-axle, USB-C port, post mount 180 mm
Suspension Fork
SR Suntour Aion 35 EVO, RC-PCS 29, 110x15 mm, 44 mm rake
Rear Shock
Rock Shox Deluxe Select, 210/50 mm, hardware: 25,0 x 8,0 mm, no Bushing
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed
Shift Levers
Shimano Deore XT M8100, 12-speed
Cassette
Shimano Deore CS-M6100, 12-speed
Crank
Samox EC40 ISIS
Bottom Bracket
Integrated in Drive Unit
Chain
Shimano CN-LG50
Wheels
Front Hub
Novatec D041, 15x110 mm thru axle
Rear Hub
Novatec D462SB, 12x148 mm
Rims
RODI TRYP30, 30-622
Spokes
Niro, black
Tires
Maxxis Minion DHF, 2.6 Dual EXO TR, 66-622 / Maxxis Minion DHF, EXO, 63-622
Brakes
Brakes
SRAM DB8, 4-piston, hydraulic disc brake / SRAM DB8, 4-piston, hydraulic disc brake
Cockpit
Stem
FOCUS C.I.S. 50 mm, 0°, 35 mm, aluminium
Handlebar
Aluminium, 800 mm, rise: 30 mm, backsweep: 9°
Grips
FOCUS Sport Ergo
Headset
ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated
Seat
Saddle
Proxim X400
Seatpost
Post Moderne dropper post PM-214, 34.9 mm
Motor & Battery
Motor
Bosch Performance CX Smart, 85 Nm, 250 W
Battery
Bosch 625 IntubeWh,Bosch PowerTube Li-Ion 36 V / 20,1 Ah (750 Wh)
Remote
Bosch LED Remote + Kiox 300
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.467 mm | 1.416 mm | 1.355 mm | 1.31 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 722 mm | 753 mm | 789 mm | 828 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 119 mm | 119 mm | 119 mm | 117 mm |
| Stack | 609 mm | 623 mm | 637 mm | 655 mm |
| Reach | 415 mm | 440 mm | 470 mm | 500 mm |
| Top Tube Length | 579 mm | 605 mm | 640 mm | 675 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 390 mm | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 115 mm | 120 mm | 140 mm | 160 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1175 mm | 1206 mm | 1242 mm | 1281 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 807 mm | 807 mm | 807 mm | 807 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
