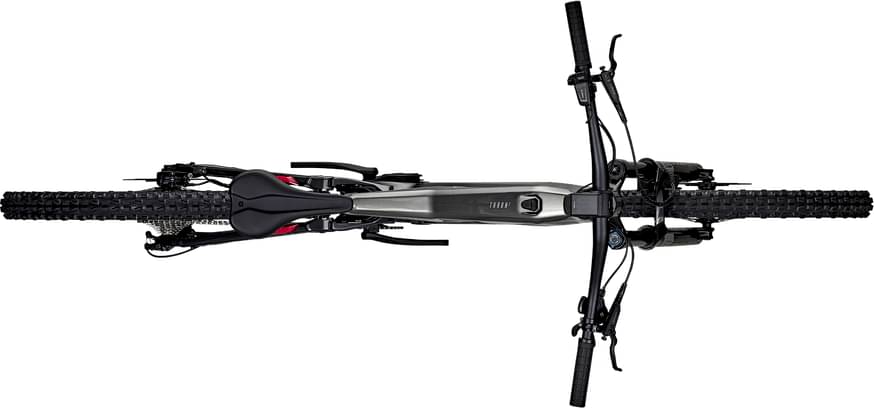

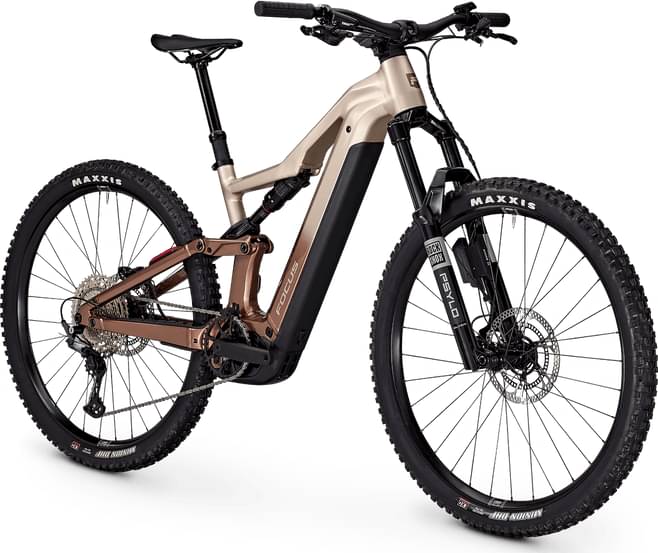

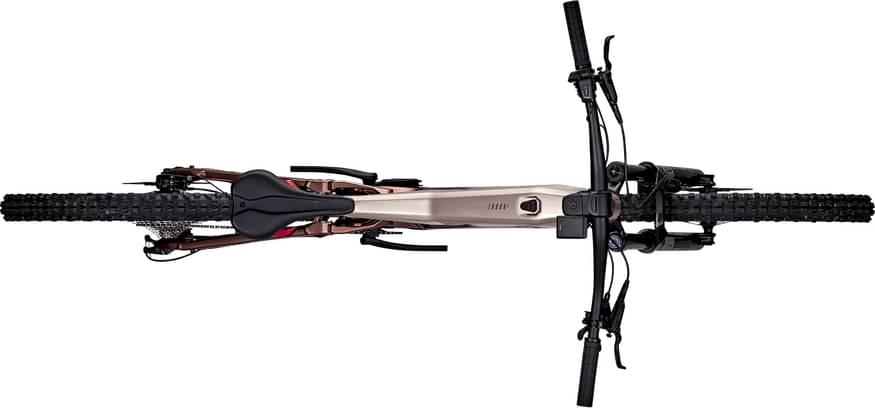

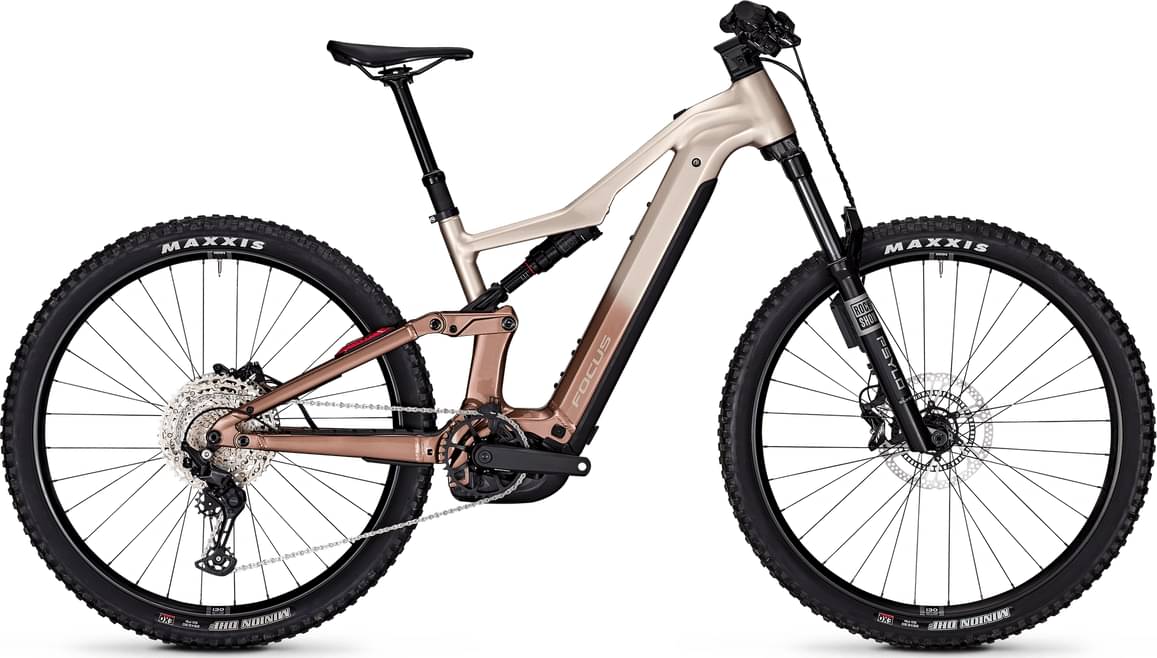

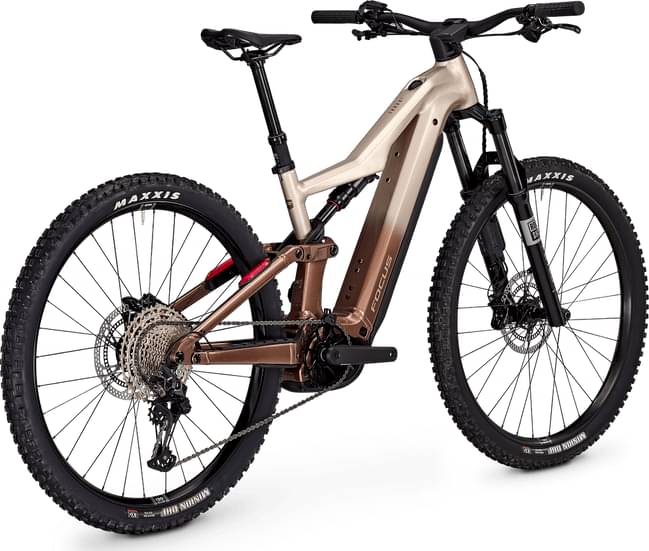

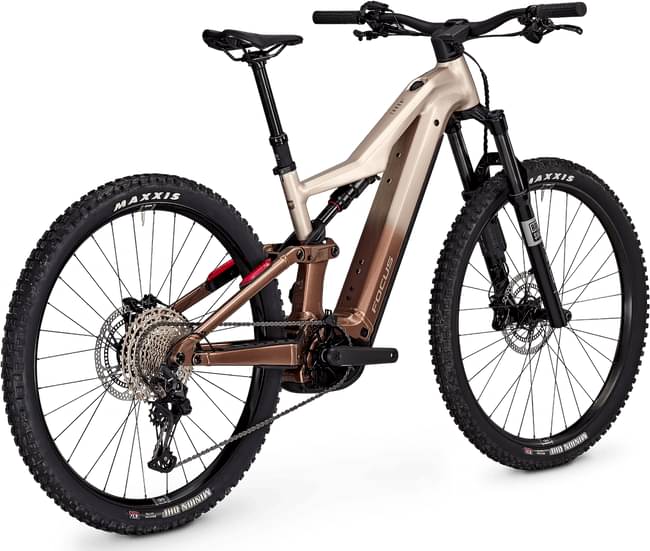

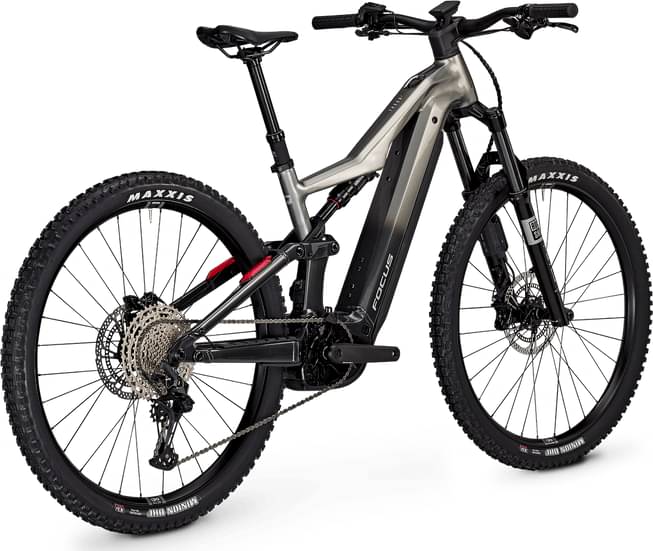

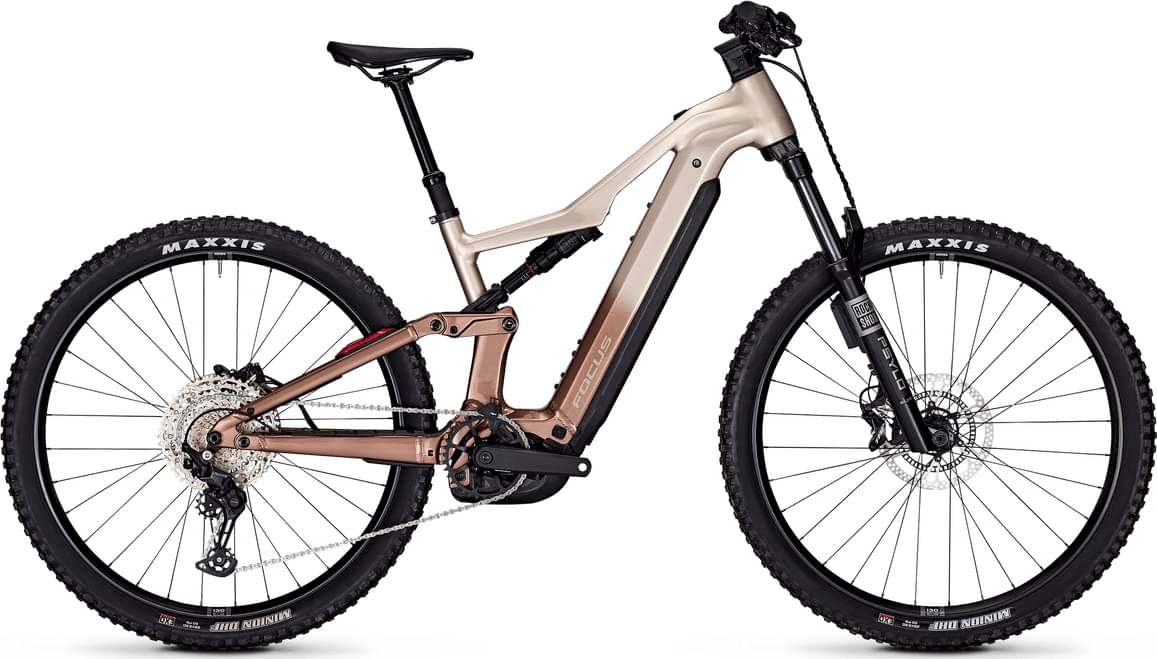

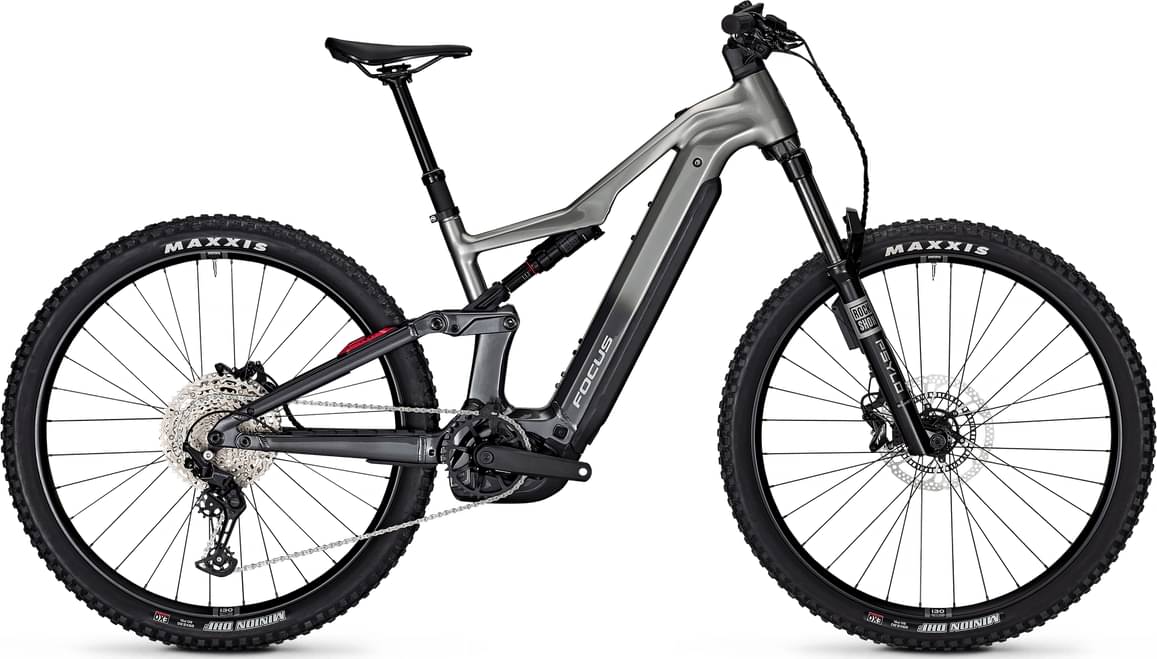

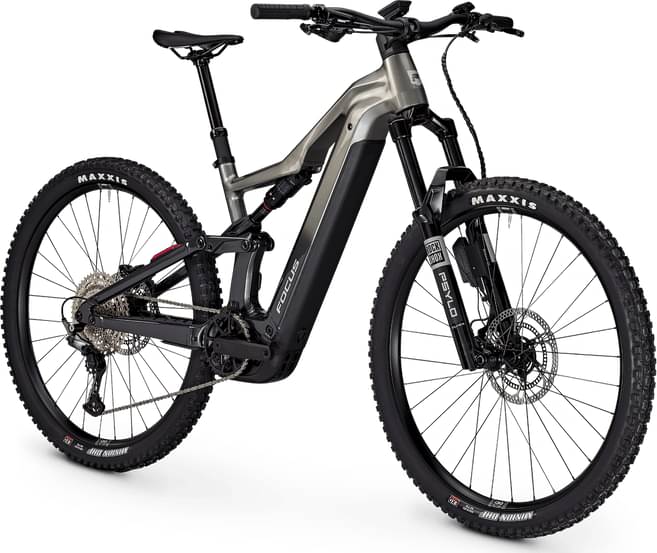

Focus THRON² 6.8 ABS 2024
2024 E-bike
Estimate price |
6,165$
Weight | 26.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 150mm -
Travel Rear 140mm -
Fork RockShox Psylo
-
Groupset Deore -
Suspension Full -
Motor Bosch 600W 85Nm mid-drive -
Battery Bosch PowerTube Li-Ion (600 Wh), Bosch PowerTube Li-Ion (800 Wh) -
Drivetrain 1 × 12 -
Brakes TRP Trail EVO Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
7005 hydroformed aluminium, 140 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm
Suspension Fork
Rock Shox Psylo Silver RC, 150 mm
Rear Shock
Rock Shox Deluxe Select, DebonAir+, 140 mm
Drivetrain
Rear Derailleur
Shimano Deore, 12-speed
Shift Levers
Shimano Deore
Cassette
Shimano CS-M6100, 10-51T
Crank
Samox, 165 mm
Chain
Shimano CN-M6100
Wheels
Front Hub
Shimano HB-TC500
Rear Hub
Shimano FH-TC500
Rims
WTB STi30, alloy, 29"
Tires
Maxxis Minion DHF, TLE, EXO, 29 x 2,5" | Maxxis Minion DHF, TLE, EXO, 29 x 2,5"
Brakes
Brakes
TRP Trail EVO, 4-piston, ABS | TRP Trail EVO, 4-piston, ABS
Cockpit
Stem
FOCUS C.I.S. 2.0, 50 mm
Handlebar
JD Riser, alloy, width: 800 mm, rise: 30 mm
Grips
VP Lock-On Grips
Headset
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated
Seat
Saddle
Selle Italia X3 Boost
Seatpost
Post Moderne DP-212, S / M /L / XL: 125 / 150 / 170 / 200 mm, 34,9 mm, Post Moderne DP-212, S / M /L / XL: 125 / 170 / 170 / 200 mm, 34,9 mm
Motor & Battery
Motor
Bosch Performance Line CX, 85 NM, 100 NM update via Flow App available summer
Battery
Bosch PowerTube Li-Ion (600 Wh), Bosch PowerTube Li-Ion (800 Wh)
Remote
Bosch Kiox 300 + LED Remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.535 mm | 1.452 mm | 1.394 mm | 1.328 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm | 344 mm |
| Front Center | 734 mm | 768 mm | 797 mm | 832 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 119 mm | 119 mm | 119 mm | 117 mm |
| Stack | 637 mm | 646 mm | 655 mm | 664 mm |
| Reach | 415 mm | 445 mm | 470 mm | 500 mm |
| Top Tube Length | 580 mm | 612 mm | 649 mm | 672 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 440 mm | 460 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm | 140 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1187 mm | 1221 mm | 1250 mm | 1285 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 785 mm | 785 mm | 785 mm | 785 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
