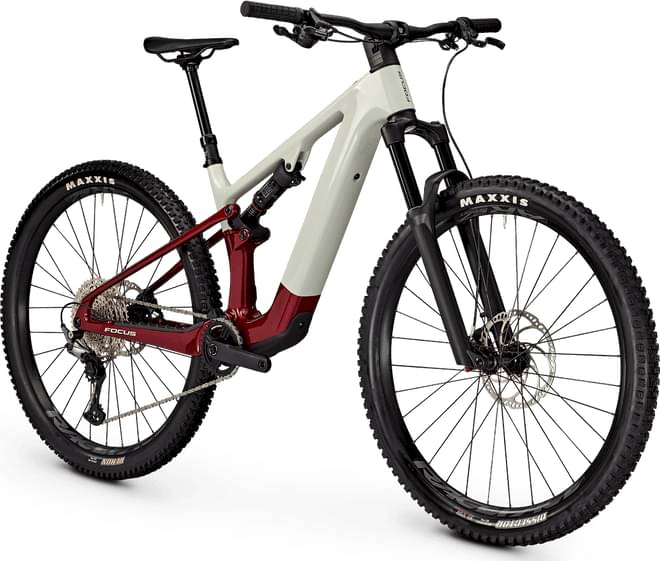

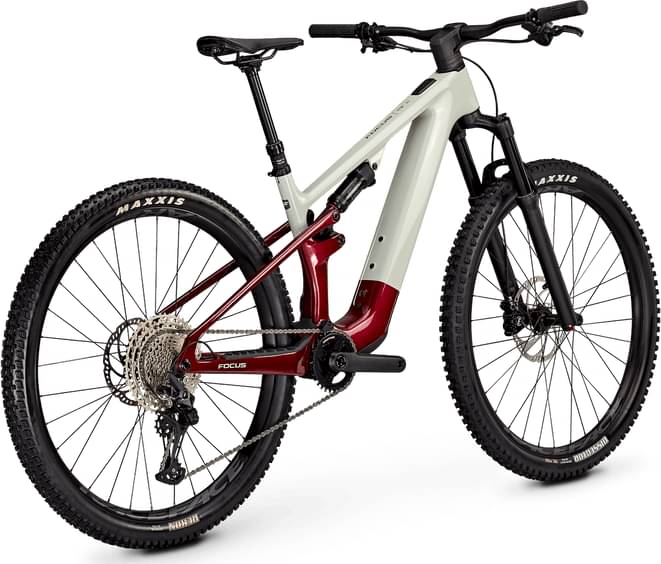

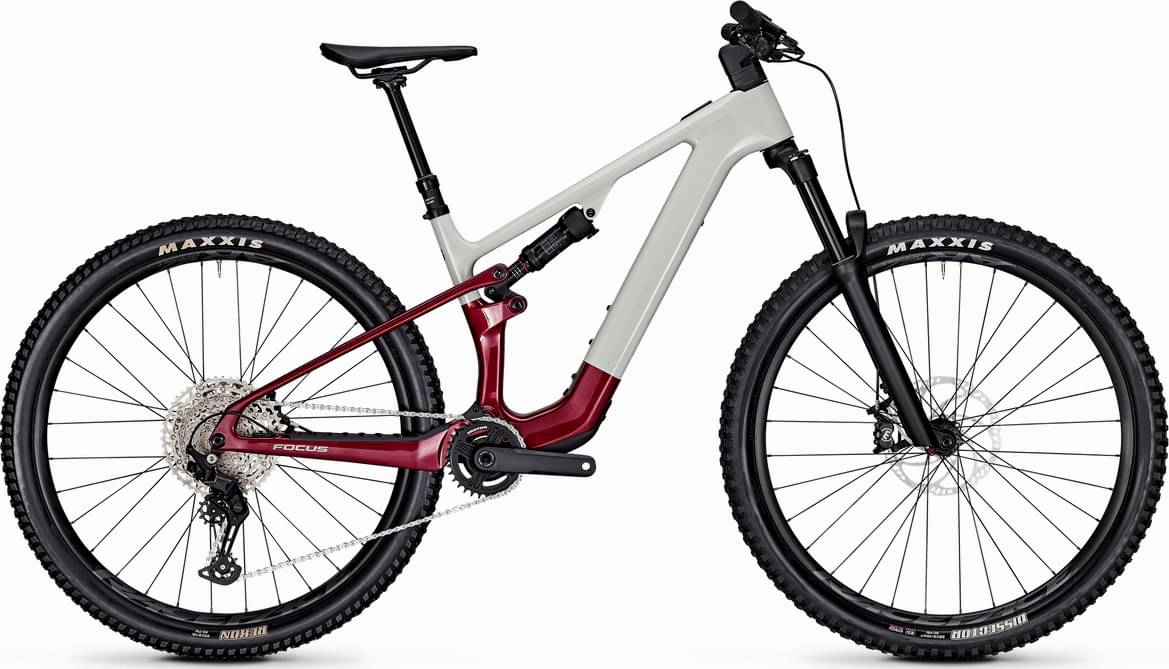

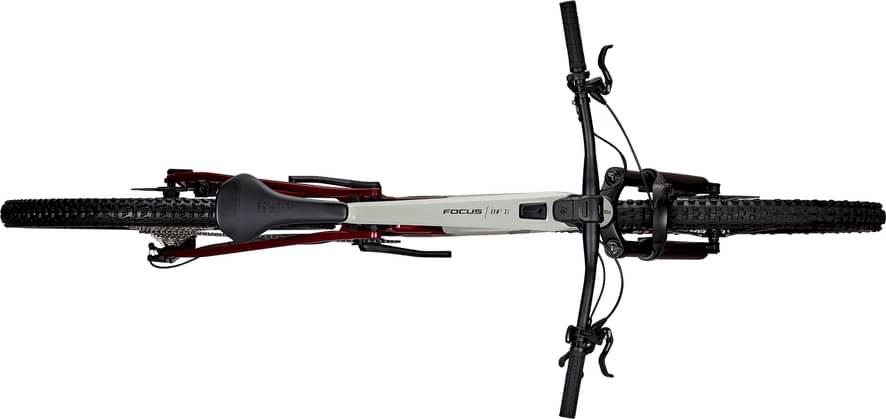

Focus VAM² SL 8.7 2024
2024 E-bike
Estimate price |
6,746$
Weight | 19.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 130mm -
Travel Rear 125mm -
Fork Suntour RAIDON
-
Groupset Deore -
Suspension Full -
Motor Fazua 450W 60Nm mid-drive -
Battery 430 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon technology frame, 125mm F.O.L.D. GEN3 kinematics, 148x12 thru axle, internal cable routing, Post Mount 180 mm
Suspension Fork
SR Suntour Raidon 34, 110x15 mm, 44 mm rake
Rear Shock
Rock Shox Deluxe Select+, 210/50 mm, hardware: 25.0 x 8.0 mm, no Bushing
Drivetrain
Rear Derailleur
Shimano Deore M6100, 12-speed
Shift Levers
Shimano Deore M6100, 12-speed
Cassette
Shimano Deore CS-M6100, 12-speed
Crank
Samox EC38 ISIS
Bottom Bracket
Integrated in Drive Unit
Chain
Shimano Deore CN-M6100, 12-speed
Wheels
Front Hub
Shimano MT410, 15x110 mm
Rear Hub
Shimano MT410, 12x148 mm
Rims
RaceFace AR27, 622-27, 32H
Tires
Maxxis Dissector, 2.4 Exo, 61-622
Brakes
Brakes
Disc
Brake Levers
Magura MT Trail
Cockpit
Stem
FOCUS C.I.S. 2.0 MTB, 35 mm, aluminium
Handlebar
Aluminium, 800 mm, rise: 12,5 mm, backsweep: 9°
Headset
ACROS ZS56/ZS56 (ICR), FOCUS C.I.S. Integrated, 1.5/1.5" angle headset
Seat
Saddle
fi'zi:k Taiga
Seatpost
Post Moderne dropper post PM-MT171, 31.6 mm
Motor & Battery
Motor
Fazua Ride 60, 60 Nm, 450 W max.
Battery
430 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.433 mm | 1.338 mm | 1.305 mm | 1.265 mm |
| Bottom Bracket Height | 339 mm | 339 mm | 339 mm | 339 mm |
| Front Center | 723 mm | 753 mm | 786 mm | 824 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 127 mm | 127 mm | 127 mm | 128 mm |
| Stack | 602 mm | 602 mm | 620 mm | 639 mm |
| Reach | 420 mm | 450 mm | 475 mm | 505 mm |
| Top Tube Length | 576 mm | 606 mm | 635 mm | 670 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 390 mm | 420 mm | 440 mm | 460 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 100 mm | 100 mm | 120 mm | 140 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1161 mm | 1191 mm | 1224 mm | 1262 mm |
| Bottom Bracket Drop | 35 mm | 35 mm | 35 mm | 35 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
