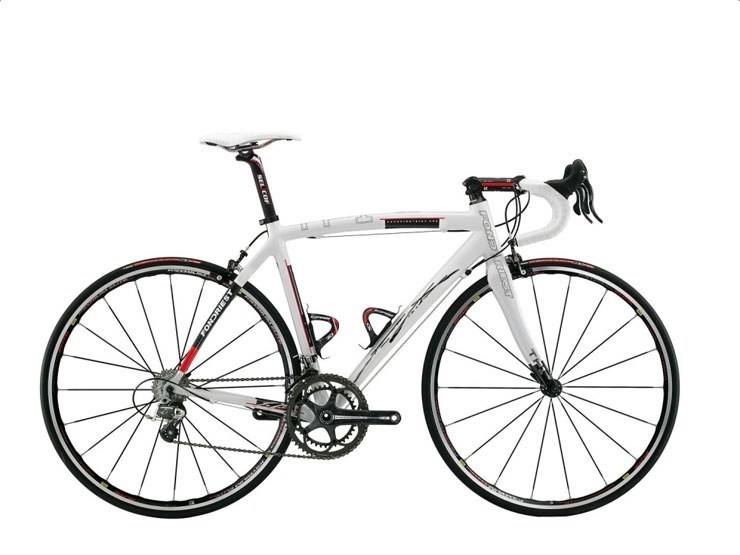

Fondriest TF1 Frameset 2020
2020 Road
Estimate price |
4,900$
Weight | 0.97 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
Category -
Frame Carbon -
Wheels 700c -
Suspension Rigid
Sizing
Recommended size guide.
XXS
157cm - 167cm
XS
165cm - 173cm
SM
171cm - 179cm
MD
177cm - 185cm
LG
183cm - 191cm
XL
188cm - 197cm
XXL
194cm - 204cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
3K 2x2 Twill Bonded Carbon
Suspension Fork
Fondriest 3K Carbon
Drivetrain
Front Derailleur
35.0mm Clamp-On
Bottom Bracket
68mm / English
Cockpit
Headset
1 1/8" Required
Seat
Seatpost
31.6mm Required
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|---|---|
| Top Tube Length | 507 mm | 517 mm | 527 mm | 542 mm | 557 mm | 567 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 490 mm | 510 mm | 530 mm | 550 mm | 570 mm | 590 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm | 165 mm | 185 mm | 200 mm |
| Chainstay Length | 395 mm | 395 mm | 397 mm | 398 mm | 399 mm | 400 mm | 402 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 157 cm | 165 cm | 171 cm | 177 cm | 183 cm | 188 cm | 194 cm |
| Rider Max Height | 167 cm | 173 cm | 179 cm | 185 cm | 191 cm | 197 cm | 204 cm |
About this model
TF1 Frameset is part of the Fondriest Tf1 model. 4 frames variations carry this model name so far.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
General Road frames average price
Our math shows that the average cost of a dependable General Road frame is 2445$. However, even if your budget is less than the average, you might still be able to get a top-quality General Road frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
This frame was released in 2020 and its price was 4900$. In conclusion, this frame price is 100.41% higher than the price of the average General Road frame.
General Road frames average weight
The average weight for General Road frames is 1.38 kg (3.04 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 0.97 kg (2.14 lbs), the TF1 Frameset model is much lighter than average. To sum up, it’s 42.27% lighter than the average weight of General Road frames.
TF1 Frameset components
Fork material
The fork on this frame is made out of carbon, so, it’s a great addition to the frame’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 157 cm – 204 cm (5.15 ft – 6.69 ft). In conclusion, it won’t take much to find one that’s right for you.
