Forbidden Dreadnought V2 Framekit 2024
2024 Mountain
Estimate price |
5,118$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Travel Rear 160mm -
Suspension Full
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

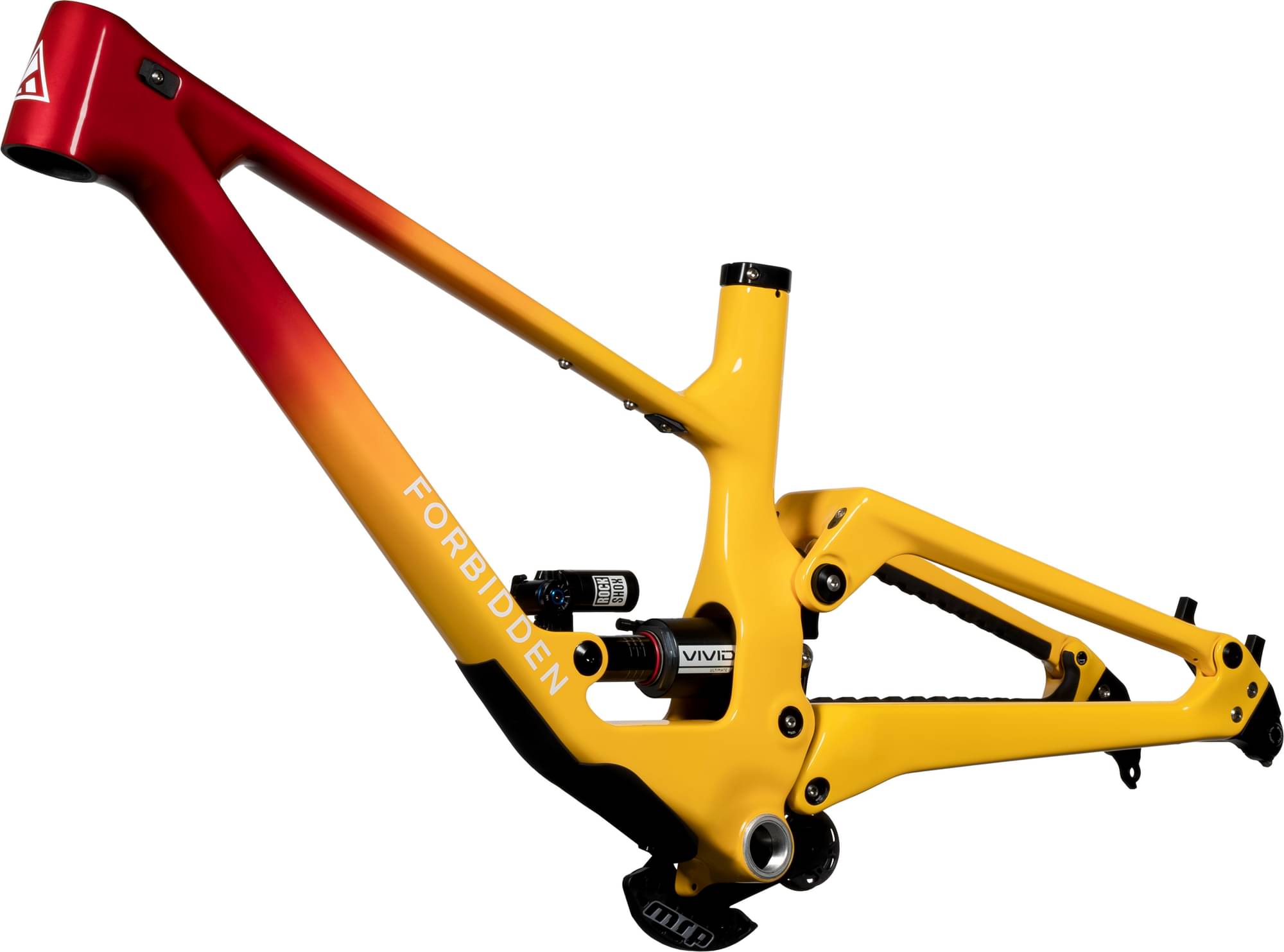

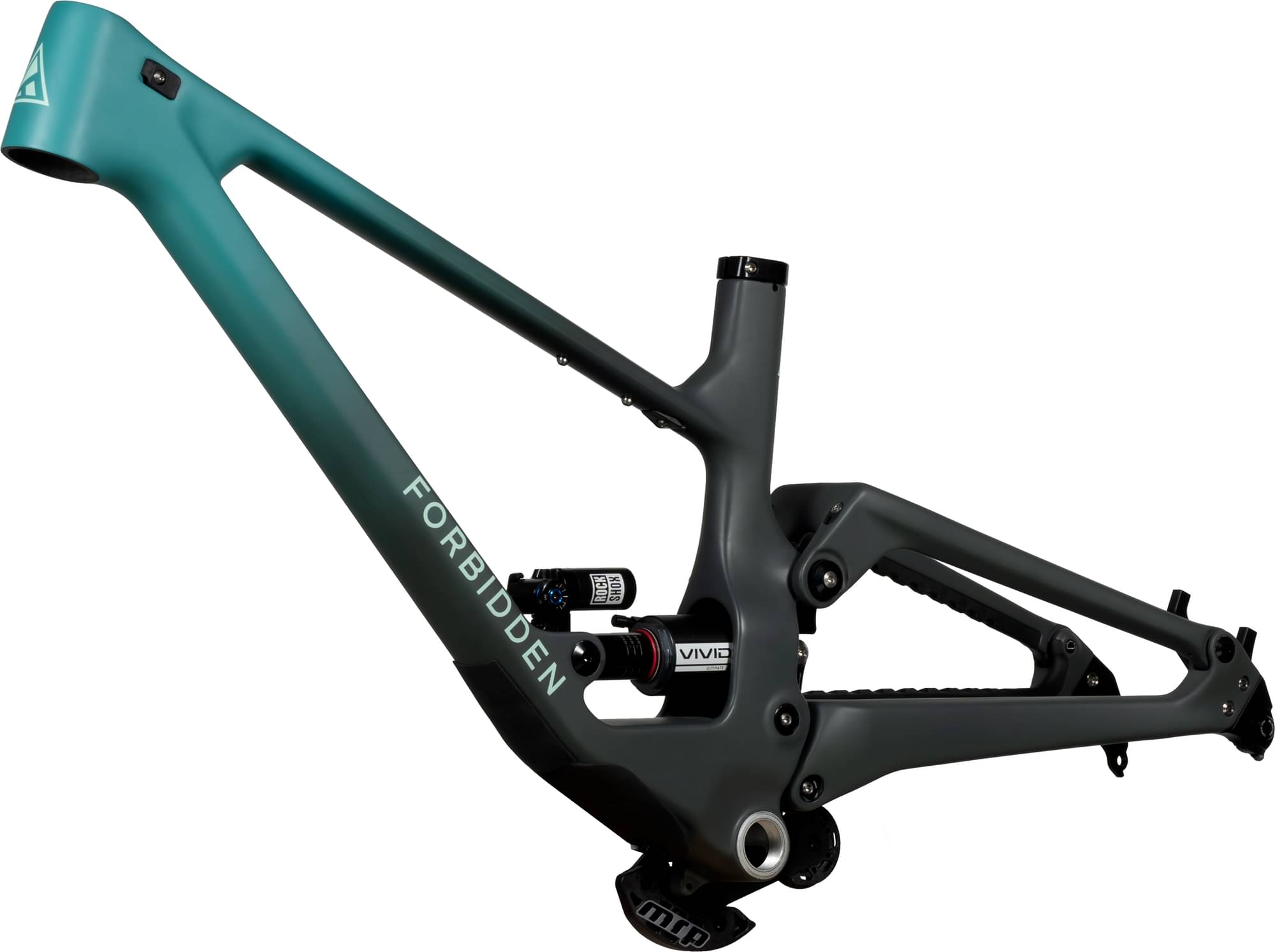

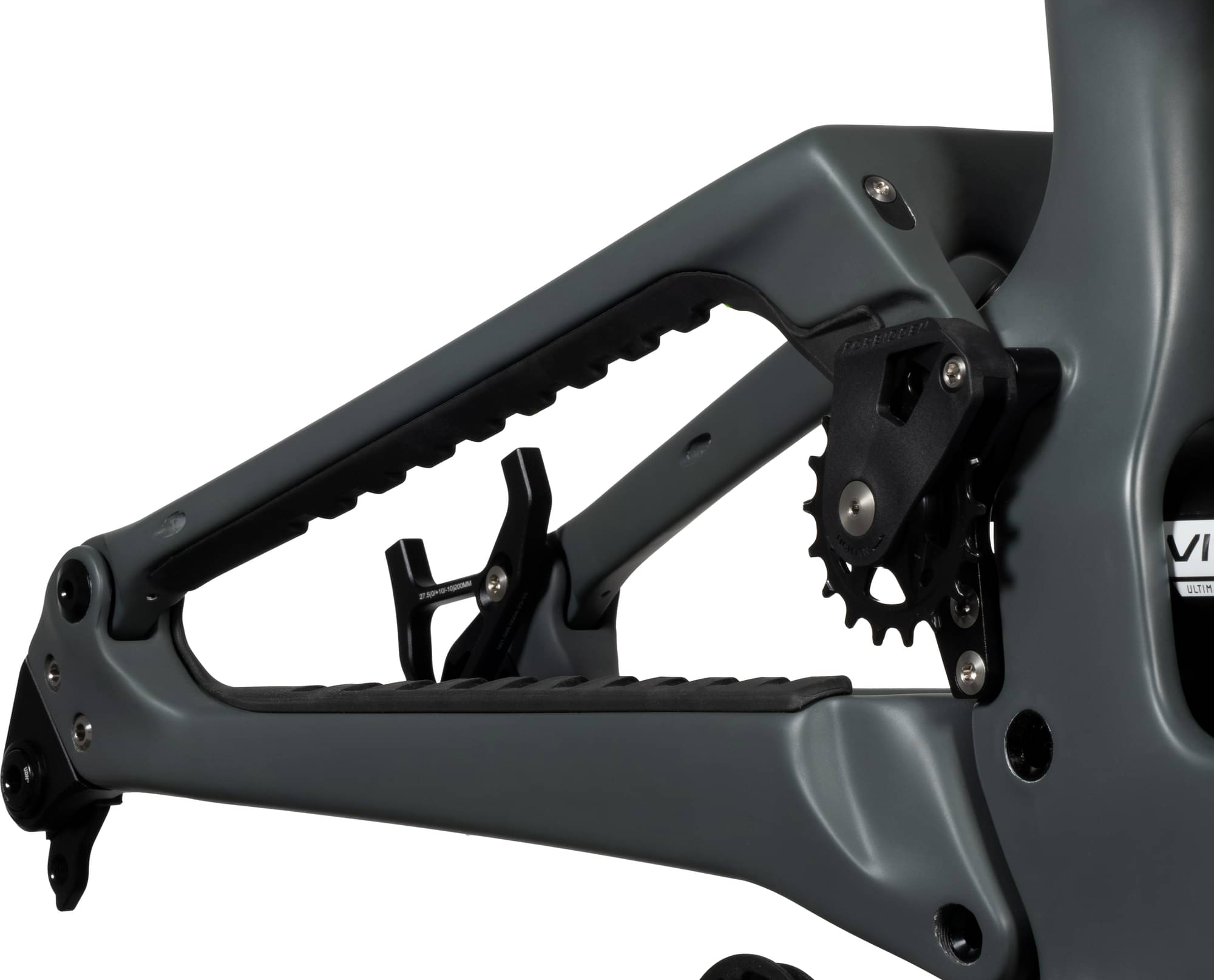

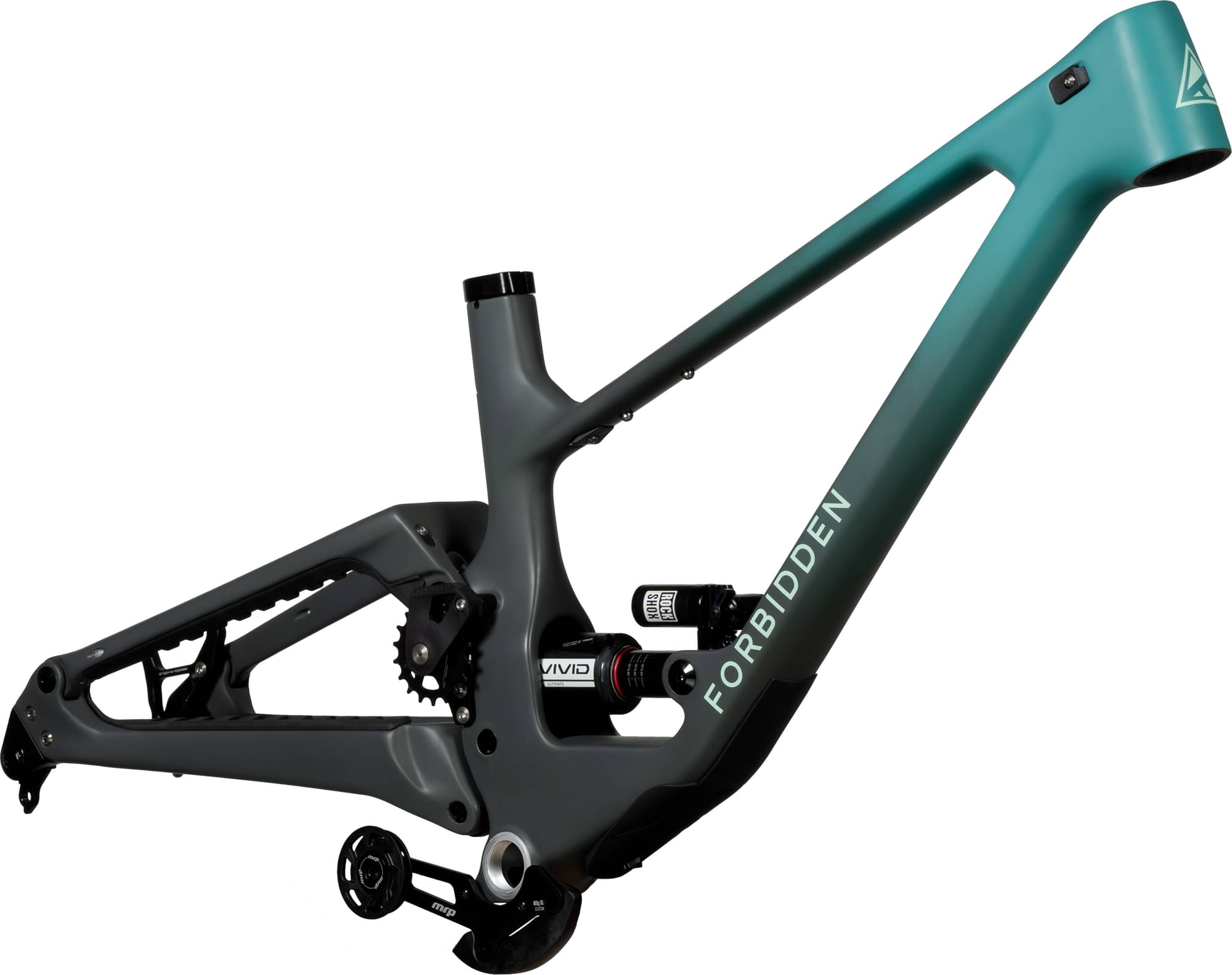

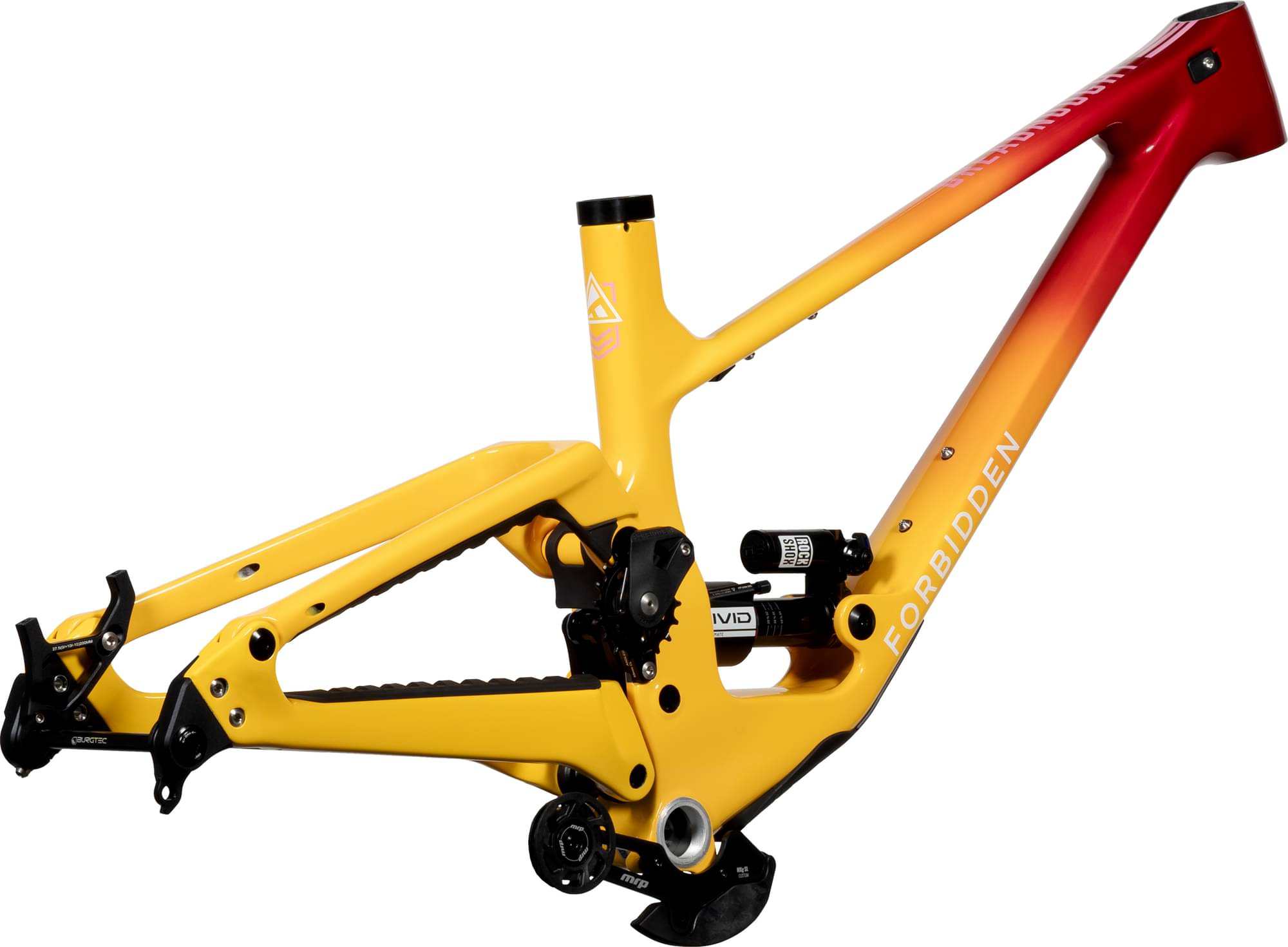

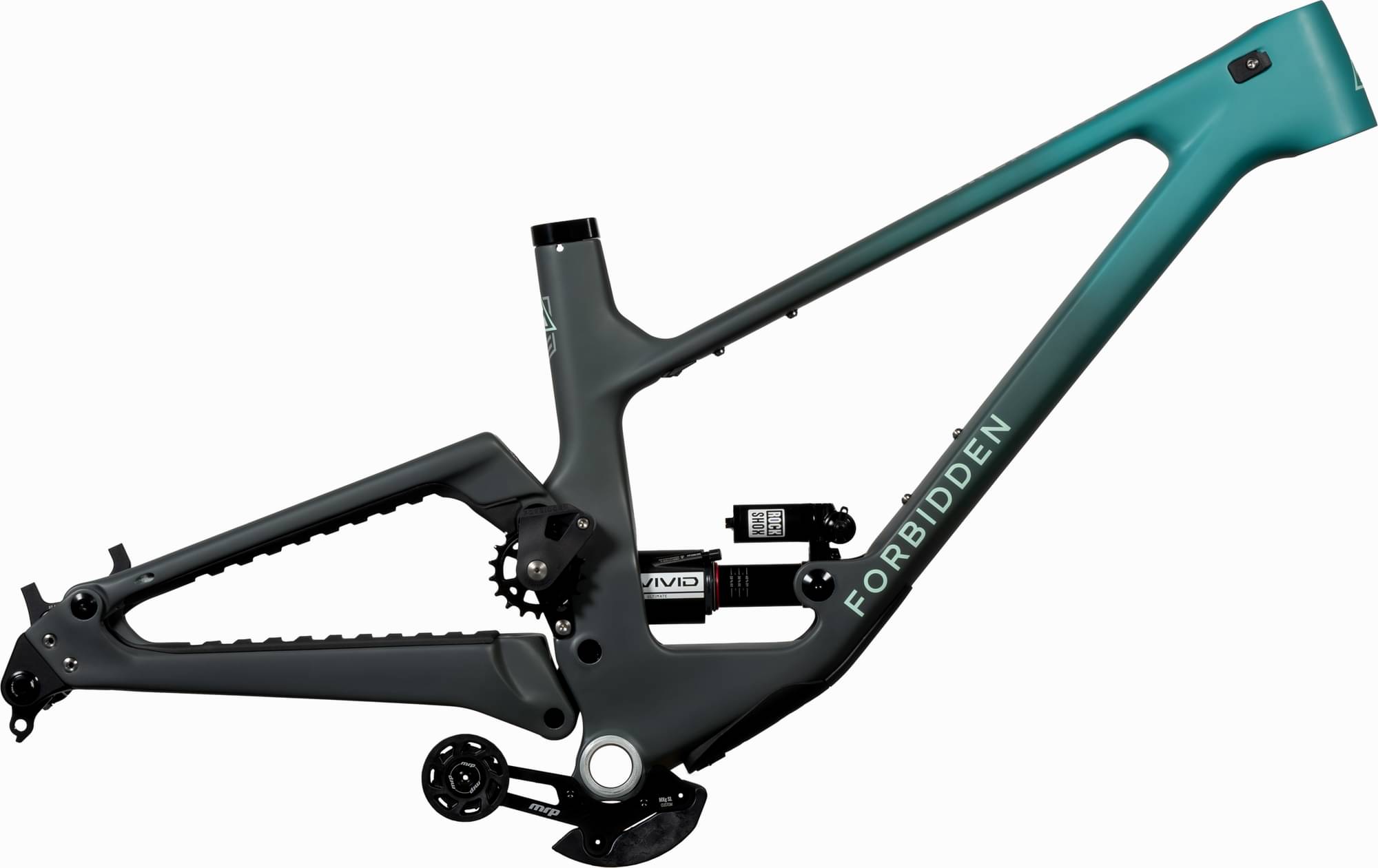

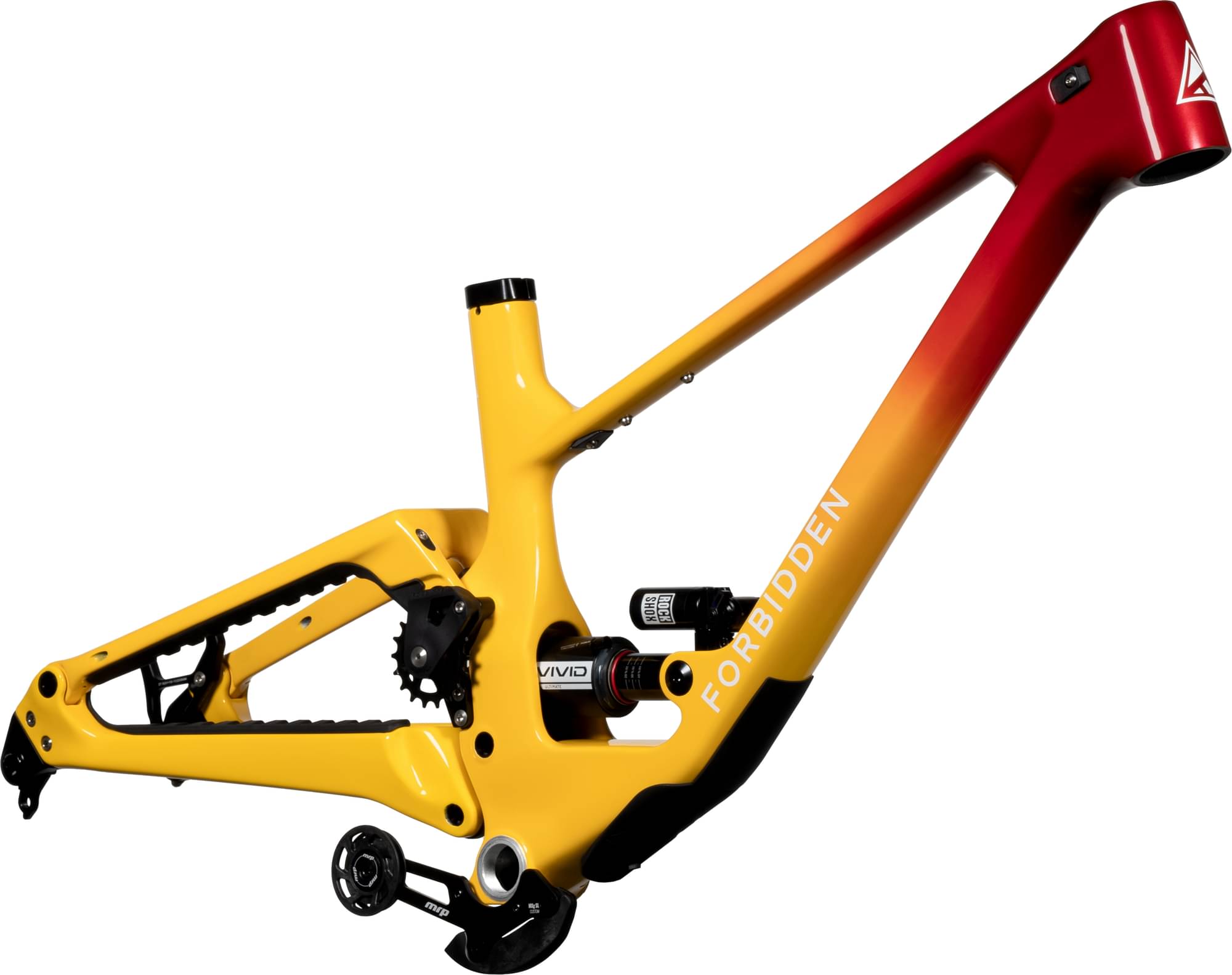

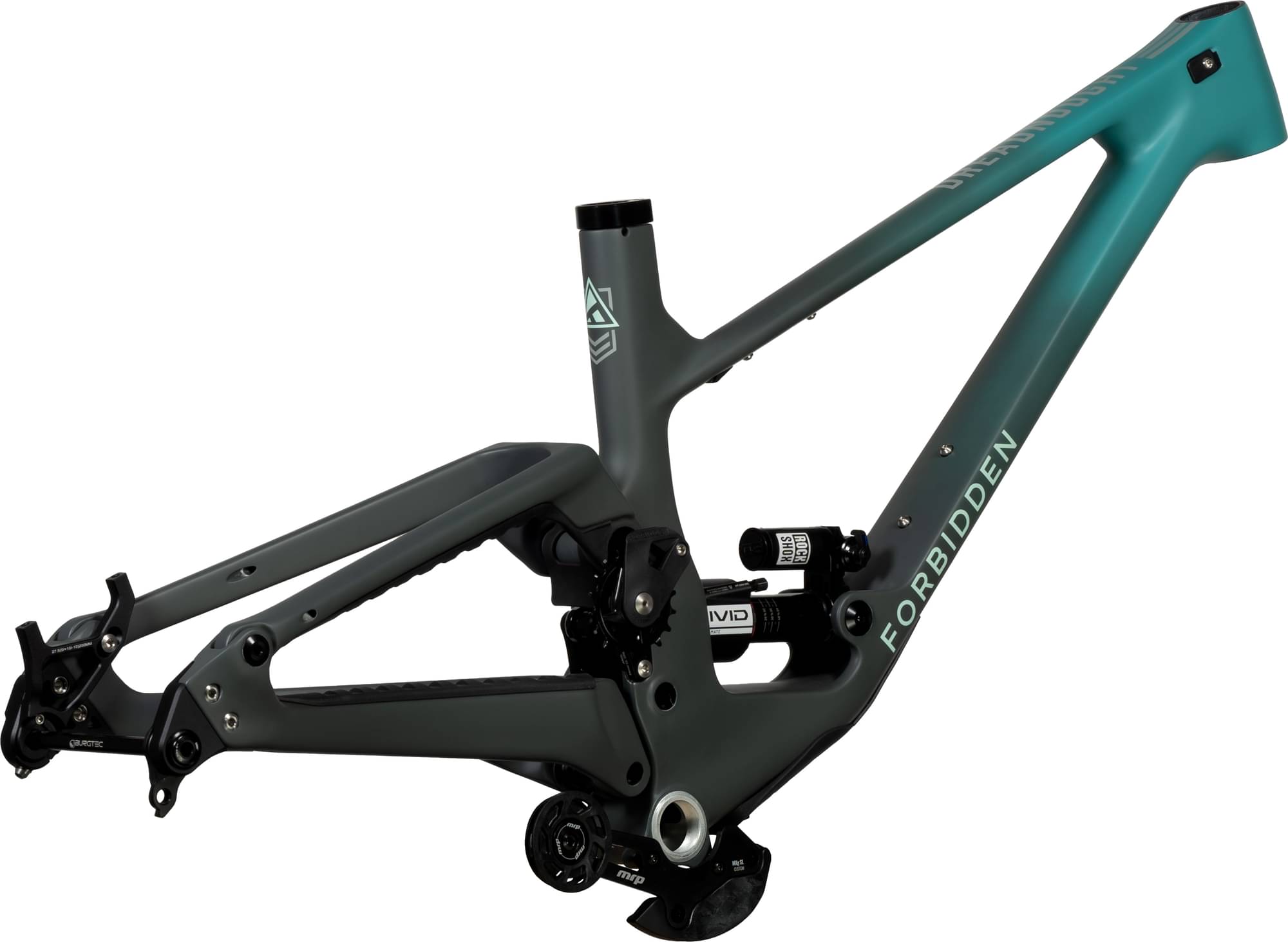

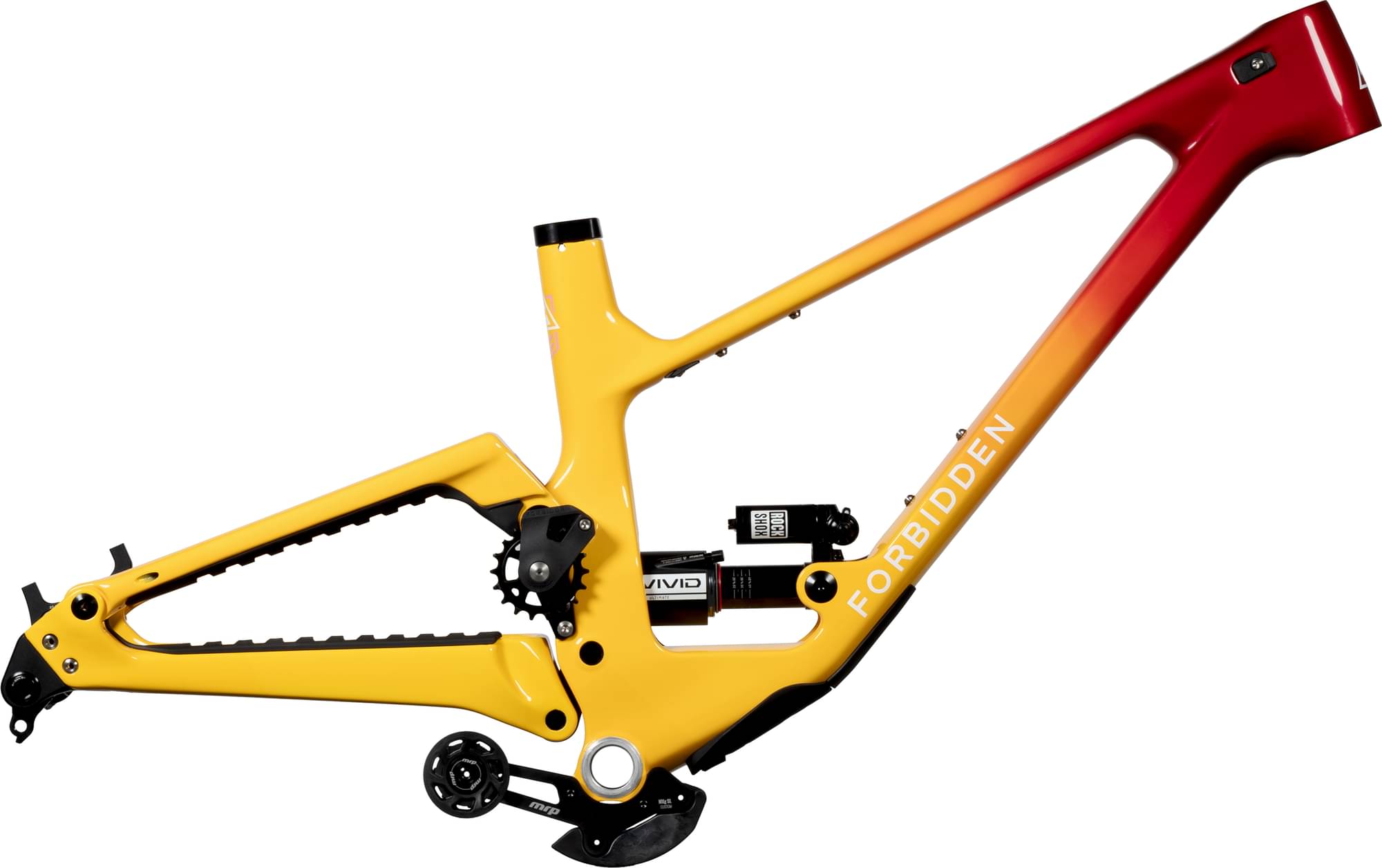

Dreadnought V2 Full Carbon - 160mm Travel, High-Modulus Carbon Fiber | Trifecta V2 High Pivot 4-Bar Suspension | One Ride Geometry | Enduro Max Bearings | 73mm Threaded BSA Bottom Bracket
Rear Shock

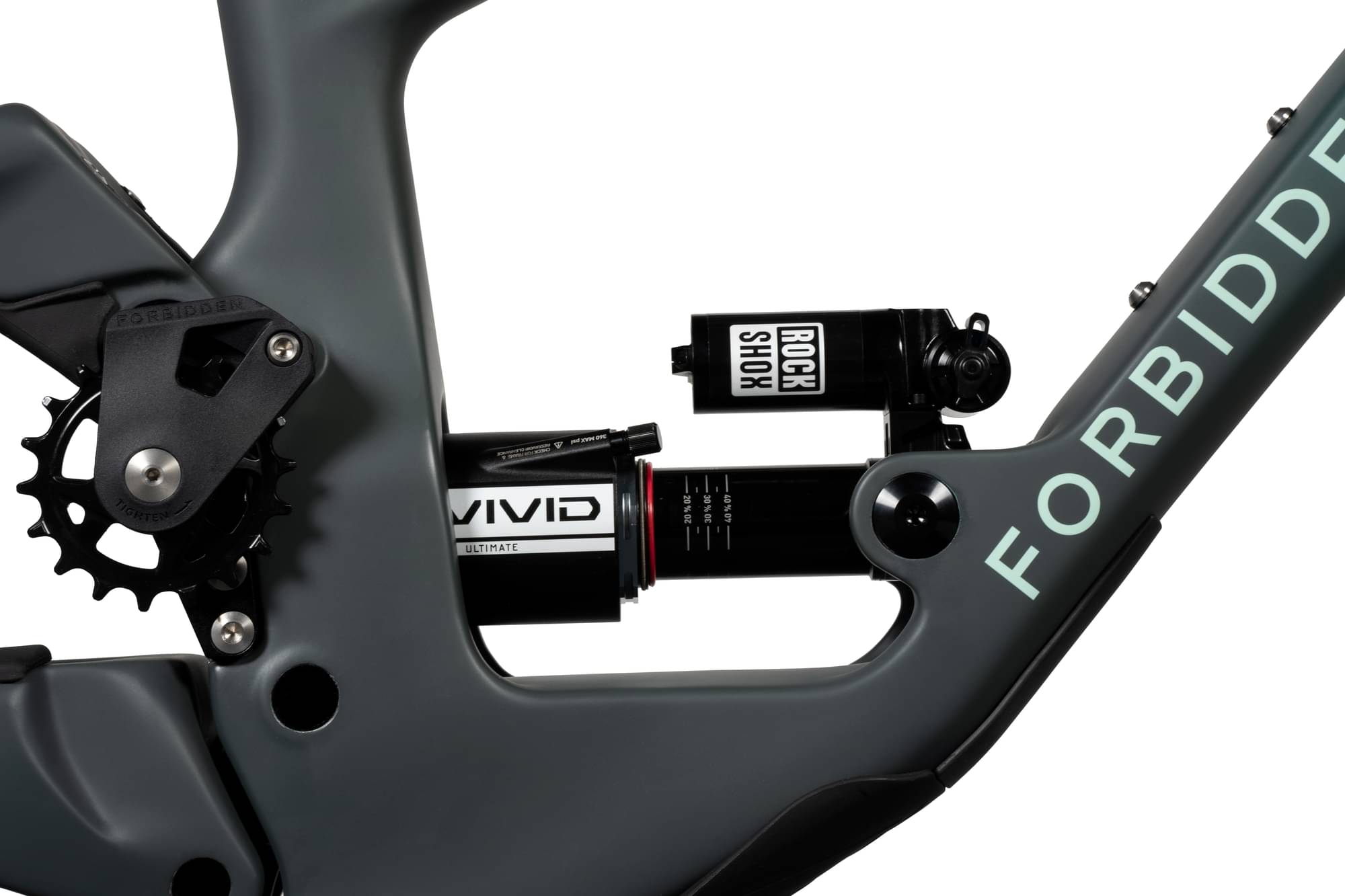

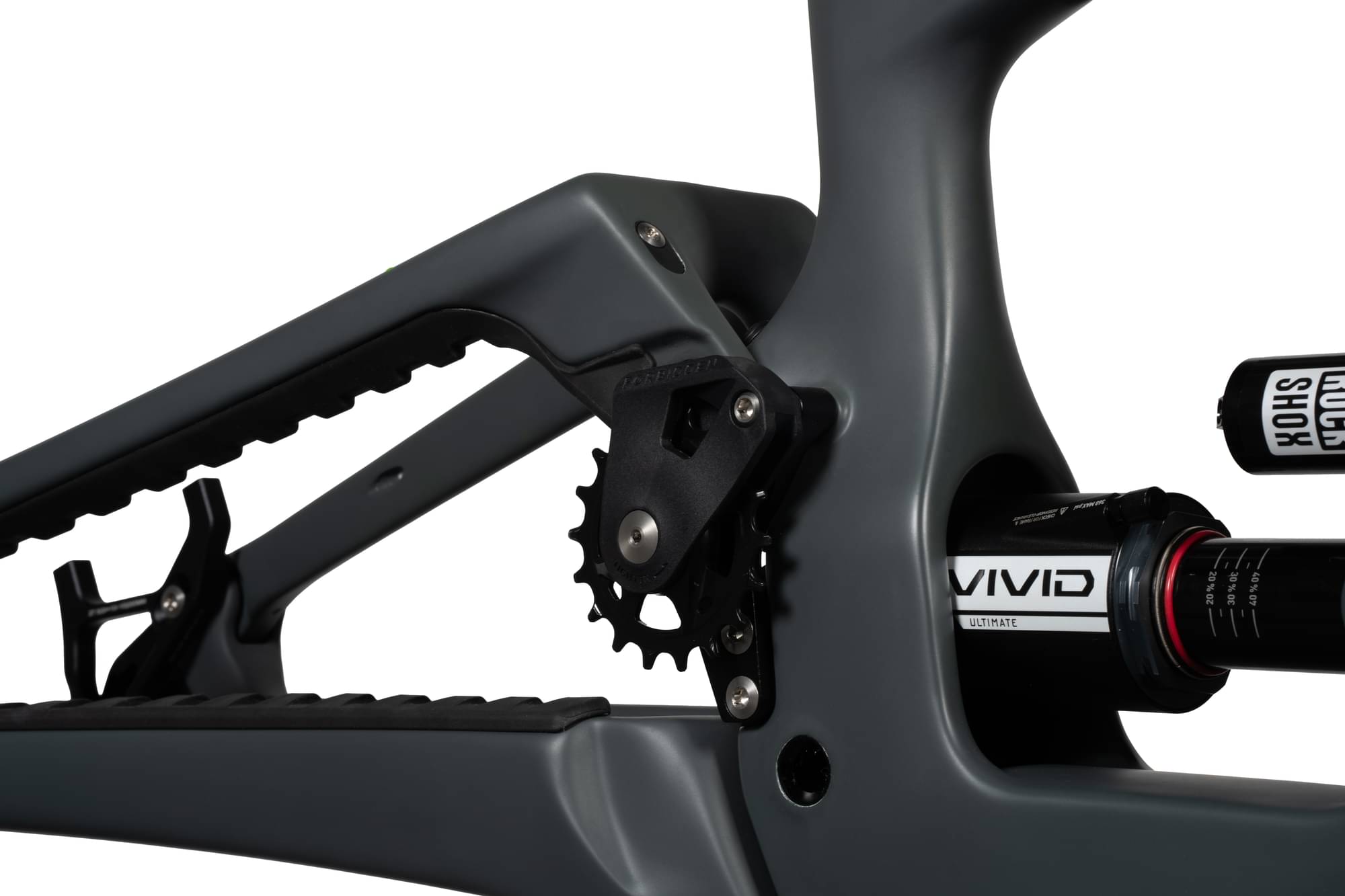

RockShox Vivid Ultimate, Touchdown RC2T | Rebound, High And Low Speed Compression, And Hydraulic Bottom Out Adjust | Threshold Lever | Trunnion/Bearing Mount | R85C26 Tune | 205x60mm
Drivetrain

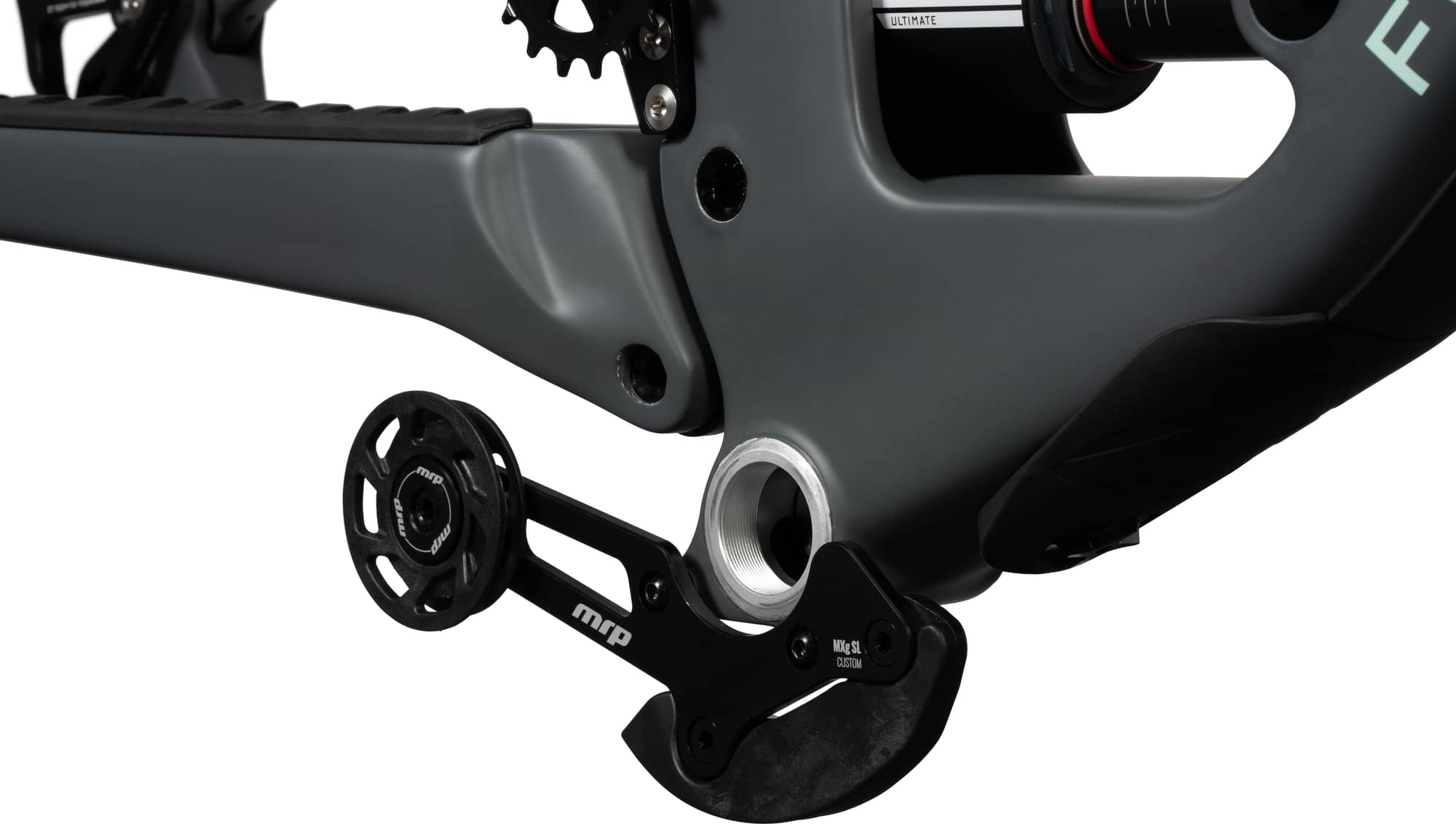

Bottom Bracket
BSA, 73mm, threaded
Seat
Seatpost
Forbidden, 7075 CNC Aluminum | 34.9mm | Black Anodized
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S1 | S2 | S3 | S4 |
|---|---|---|---|---|
| Stack Reach Ratio | 1.414 mm | 1.38 mm | 1.352 mm | 1.323 mm |
| Bottom Bracket Height | 347 mm | 347 mm | 347 mm | 347 mm |
| Front Center | 776 mm | 802 mm | 829 mm | 856 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 165 mm | 165 mm | 165 mm | 165 mm |
| Stack | 615 mm | 628 mm | 642 mm | 655 mm |
| Reach | 435 mm | 455 mm | 475 mm | 495 mm |
| Top Tube Length | 571 mm | 594 mm | 617 mm | 640 mm |
| Seat Tube Angle | 77.5 ° | 77.5 ° | 77.5 ° | 77.5 ° |
| Seat Tube Length | 400 mm | 420 mm | 440 mm | 470 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm | 135 mm |
| Chainstay Length | 431 mm | 446 mm | 460 mm | 475 mm |
| Wheelbase | 1206 mm | 1247 mm | 1288 mm | 1330 mm |
| Bottom Bracket Drop | -26 mm | -26 mm | -26 mm | -26 mm |
| Standover Height | 771 mm | 775 mm | 777 mm | 780 mm |
| Wheels | 29" | 29" | 29" | 29" |
