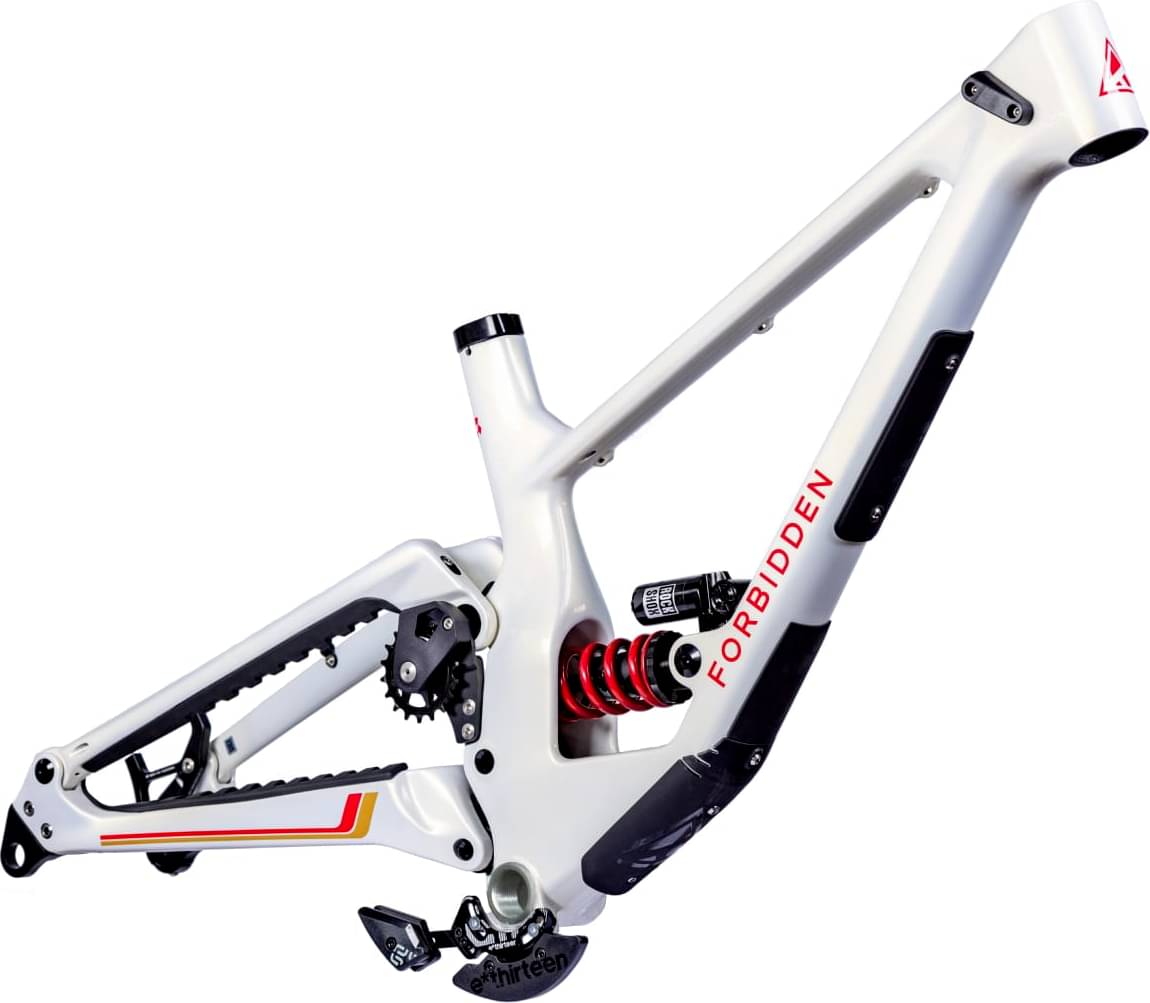

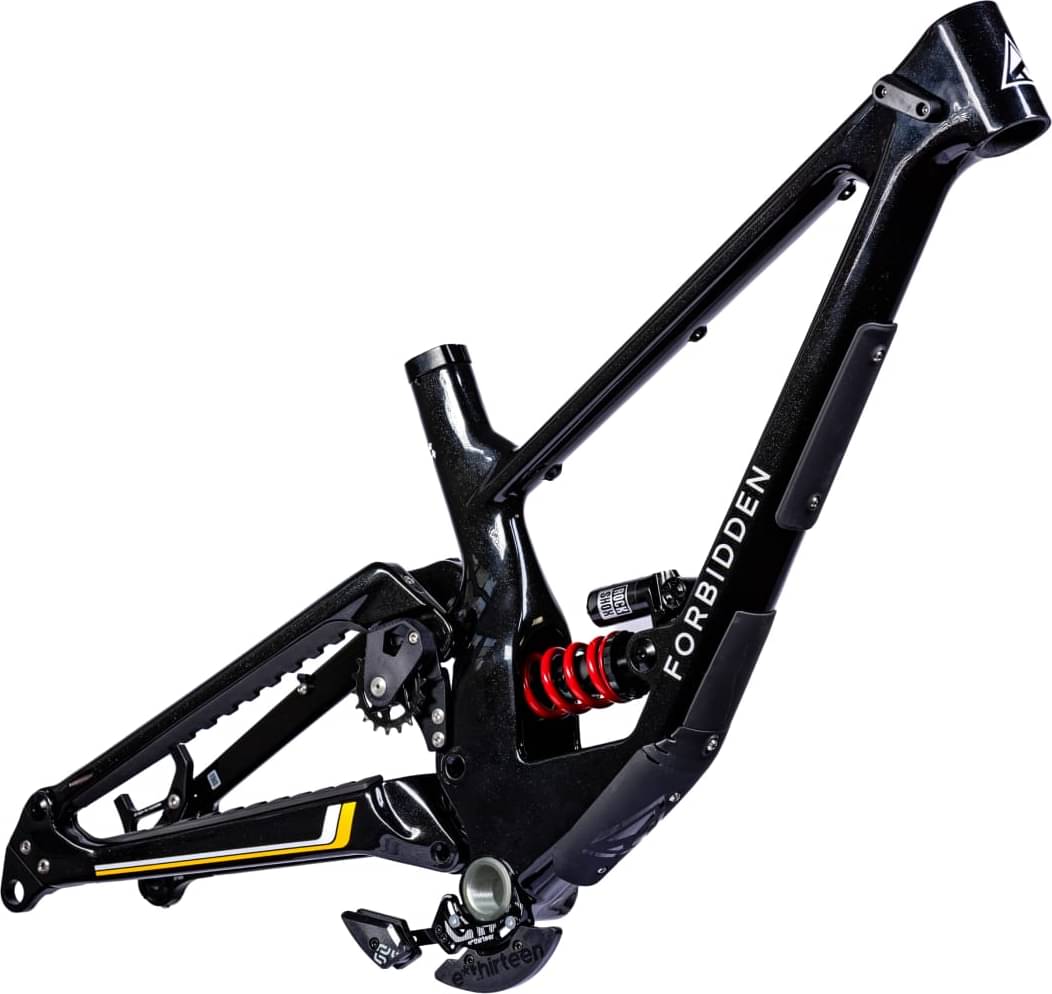

Forbidden Supernought 29″ Framekit 2024
2024 Mountain
Estimate price |
5,001$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Travel Rear 205mm -
Suspension Full -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Drivetrain
Bottom Bracket
83mm BSA Threaded
Wheels
Tires
29 x 2.4
Brakes
Brakes
200mm Post Mount
Seat
Seatpost
31.6mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | S1 | S2 | S3 | S4 |
|---|---|---|---|---|
| Stack Reach Ratio | 1.475 mm | 1.423 mm | 1.372 mm | 1.329 mm |
| Bottom Bracket Height | 356 mm | 356 mm | 356 mm | 356 mm |
| Front Center | 781 mm | 808 mm | 835 mm | 862 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 151 mm | 152 mm | 151 mm | 152 mm |
| Stack | 627 mm | 636 mm | 645 mm | 654 mm |
| Reach | 425 mm | 447 mm | 470 mm | 492 mm |
| Top Tube Length | 579 mm | 603 mm | 628 mm | 653 mm |
| Seat Tube Angle | 76.3 ° | 76.3 ° | 76.3 ° | 76.3 ° |
| Seat Tube Length | 400 mm | 420 mm | 440 mm | 470 mm |
| Head Tube Angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 431 mm | 446 mm | 460 mm | 475 mm |
| Wheelbase | 1212 mm | 1253 mm | 1295 mm | 1336 mm |
| Bottom Bracket Drop | -17 mm | -17 mm | -17 mm | -17 mm |
| Standover Height | 750 mm | 760 mm | 769 mm | 777 mm |
| Wheels | 29" | 29" | 29" | 29" |
