Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Travel Front 80mm -
Groupset microSHIFT Advent X -
Suspension Hardtail -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
AHF-6061 Heat Treated, Hydroformed Aluminum

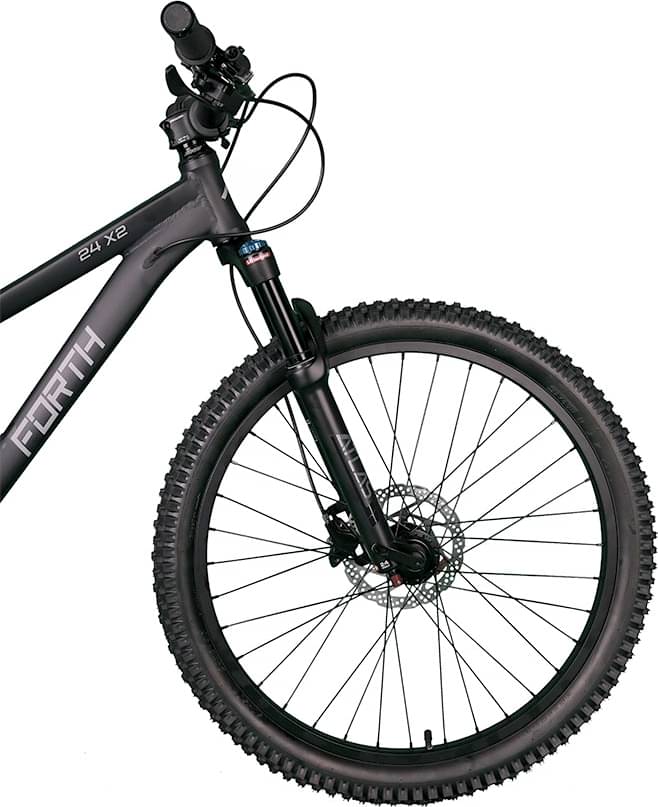

Suspension Fork
Atlas Air Fork

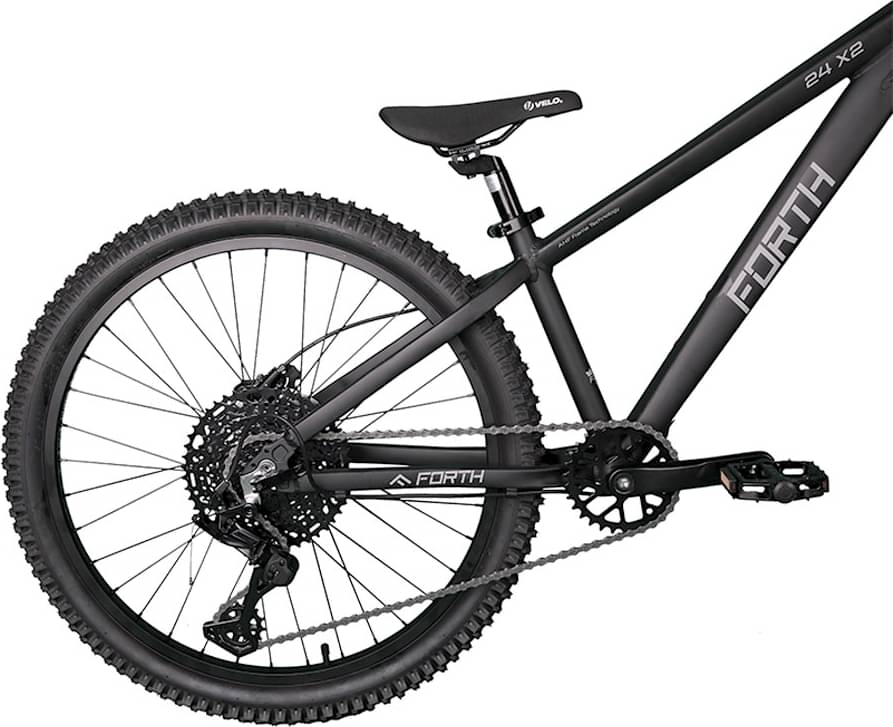

Drivetrain
Rear Derailleur
microSHIFT RD-M6205GM – 10 speed
Shift Levers
microSHIFT SL-M9505R – 10 speed
Cassette
microSHIFT CS-H104 – 11-48T
Crank
Prowheel Alloy – 30T
Bottom Bracket
Neco – B910
Chain
KMC – Z9
Pedals
Platform, Alloy, 108 x 95mm, 9/16" thread
Wheels
Front Hub
Jackl – Alloy, Sealed Bearings, Quick Release
Rear Hub
Jackl – Alloy, Sealed Bearings, Quick Release
Rims
24" x 1.75, Alloy
Tires
Bend Sender – 24" x 2.3
Brakes
Brakes
Shimano BR-MT200 Hydraulic Disc
Brake Levers
Shimano BL-MT200

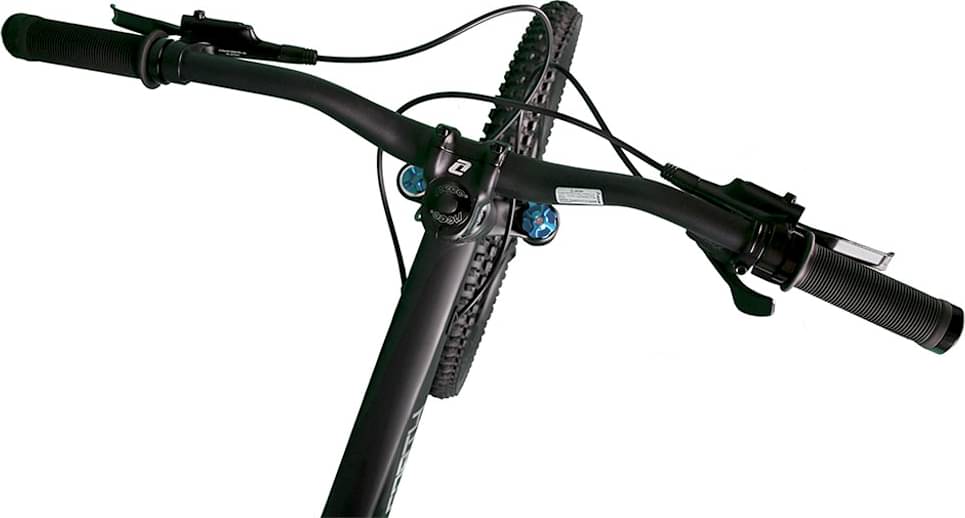

Cockpit
Grips
115 mm, lock-on
Seat
Saddle
Velo-7087
Seatpost
27.2 mm
Fit data
Geometry
