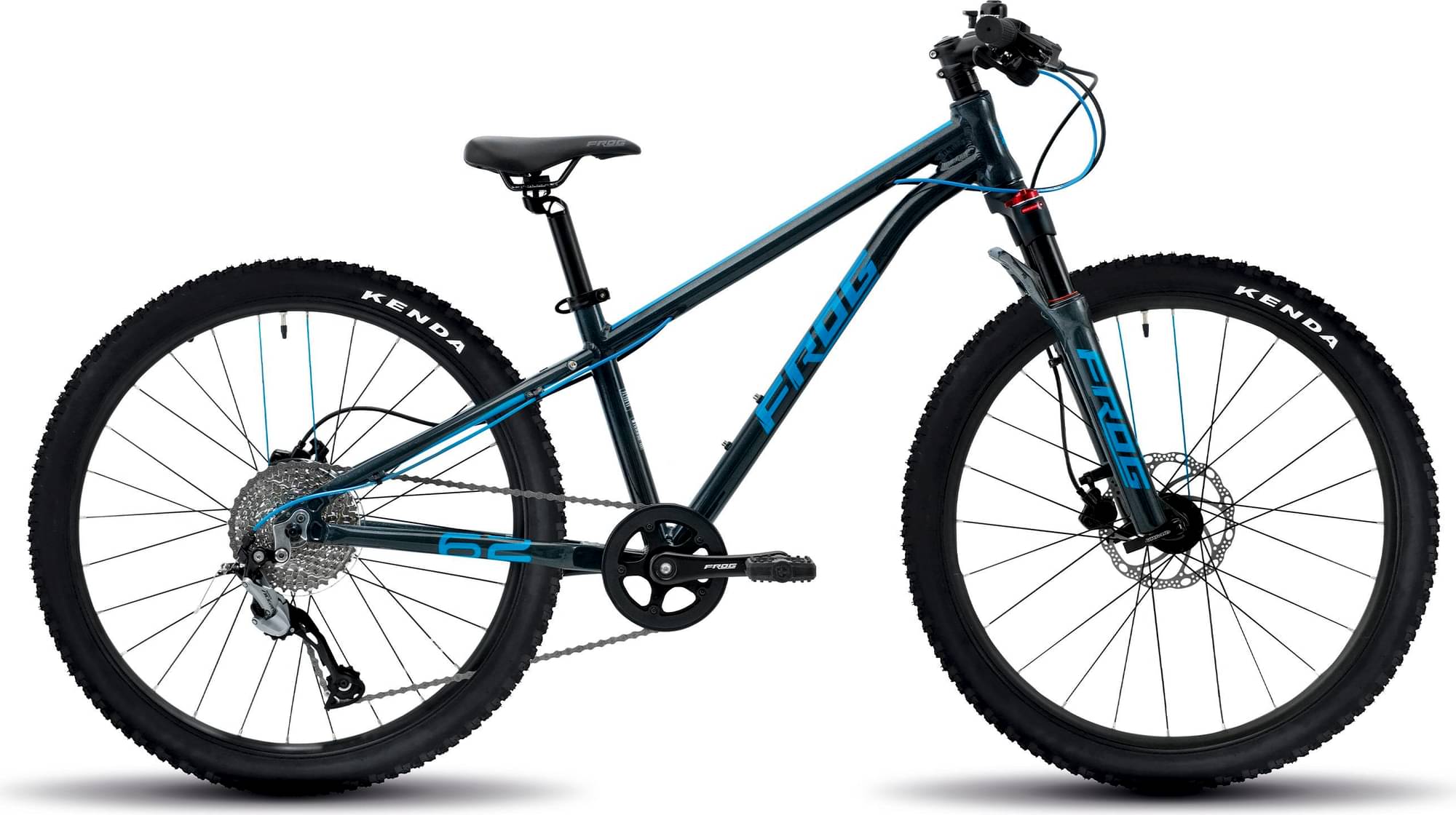

frog MTB 62 2024
2024 Youth
Estimate price |
1,256$
Weight | 11.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 65mm -
Groupset Alivio, Acera -
Suspension Hardtail -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 heat treated, aluminium alloy, seat tube 12.5" (317mm)
Suspension Fork
Frog Bikes junior specific 24" air suspension fork with lockout and damping control, 65mm travel, Our forks are manufactured to work specifically with a childs' weight learn more here
Drivetrain
Rear Derailleur
Shimano Alivio RD-M3100-SGS Shadow 9 Speed Rear Derailleur
Shift Levers
Shimano Acera SLM3000 Rapidfire Shift 9 Speed Lever
Cassette
Sunrace, CSM990 9AX, 9-speed, 11-40t
Crank
Frog Bikes patented aluminium straight arm cranks with double chain guard, 127mm, steel 32t chainring
Bottom Bracket
Thun Shorty-ML-SL; square taper, 68/108/107.5
Chain
KMC, 9-speed
Pedals
Frog Bikes eco-friendly rice husk & plastic composite, w/reflectors, 9/16"
Wheels
Front Hub
KT-SN3F, high performance aluminium disc hub, sealed cartridge bearings, QR, 24 hole, 6 bolt
Rear Hub
KT-SN3R, high performance aluminium disc hub, sealed cartridge bearings, QR, 24 hole, 6 bolt
Rims
Aluminium, 24", double wall, disc-specific
Tires
Kenda K1134, 24"x2.1", (ETRTO/ISO 53-507)
Brakes
Brakes
Tektro hydraulic disc brakes, 160/140mm rotor
Brake Levers
Tektro M276, junior specific, 2 finger hydraulic disc brake
Cockpit
Stem
UNO, Aluminium, 1"1/8, 60mm, Oversized 4 bolt clamp
Handlebar
UNO, Aluminium Oversized, 580mm
Headset
Neco, 1"1/8 semi-integrated threadless with sealed cartridge bearings, aluminium Frog Bikes top cap
Seat
Saddle
Frog Bikes junior specific slimline saddle (small)
Fit data
Geometry
