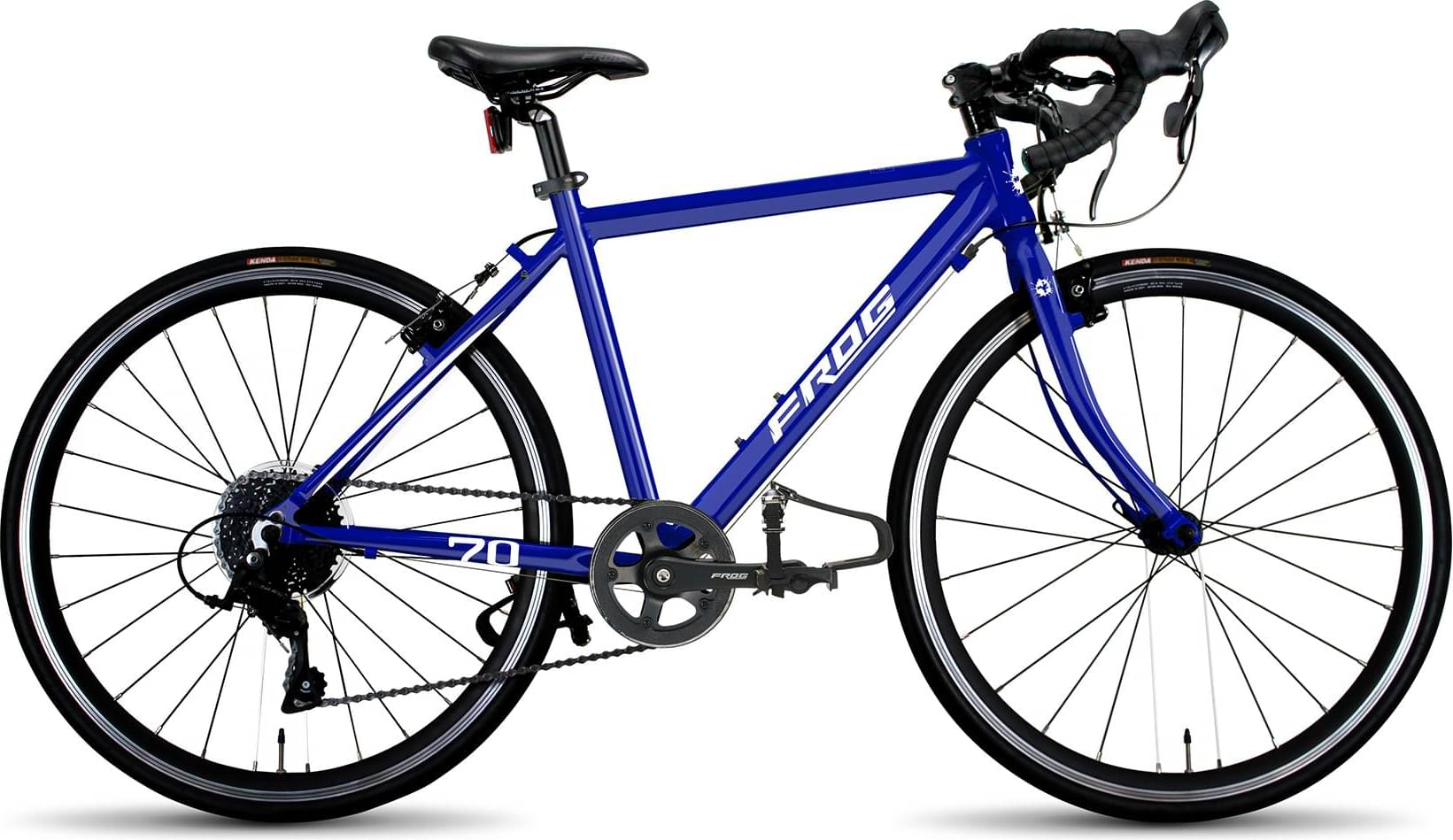

frog Road 70 2024
2024 Road
Estimate price |
1,128$
Weight | 9.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 26" -
Groupset Sora, microSHIFT -
Suspension Rigid -
Drivetrain 1 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 heat treated Aluminium alloy, seat tube 43cm (17")
Suspension Fork
6061 T6 heat treated Aluminium alloy
Drivetrain
Rear Derailleur
Shimano Sora, RD-R3000, 9/10-speed
Shift Levers
Microshift SB-R400K, 10-speed, Jnr rapidfire plus, Aluminium canti/roller-brake
Cassette
10-speed, 11-34T
Crank
Frog Bikes Patented,146mm, Aluminium straight arm cranks, 36T chainring, black
Bottom Bracket
Neco, square taper, 68/113.5, cartridge bearings
Chain
KMC, 10-speed
Pedals
Wellgo R090, resin platform, single sided, toe clips (medium), reflectors, 9/16"
Wheels
Front Hub
Quando, Aluminium, sealed hub, QR, 24 hole
Rear Hub
Quando, Aluminium, sealed hub, QR, 28 hole, Shimano type free hub body, 9-speed
Rims
Aluminium, 26", double wall, deep section, machined braking surface
Tires
Kenda K-196, 26"x1.0", Road, (ETRTO/ISO 25-559)
Brakes
Brakes
Tektro Oryx, 992AG, alloy cantilever
Brake Levers
Integrated to gear shifters & Tektro RL570 auxillary levers
Cockpit
Stem
Aluminium, 1"1/8, 60mm, 4 bolt clamp
Handlebar
6061 Aluminium, custom drop bar, 360mm
Headset
Neco, 1"1/8 semi-integrated threadless, front brake hanger, Frog Bikes top cap
Seat
Saddle
Frog Bikes, child specific slimline saddle (medium), steel rails
Fit data
Geometry
