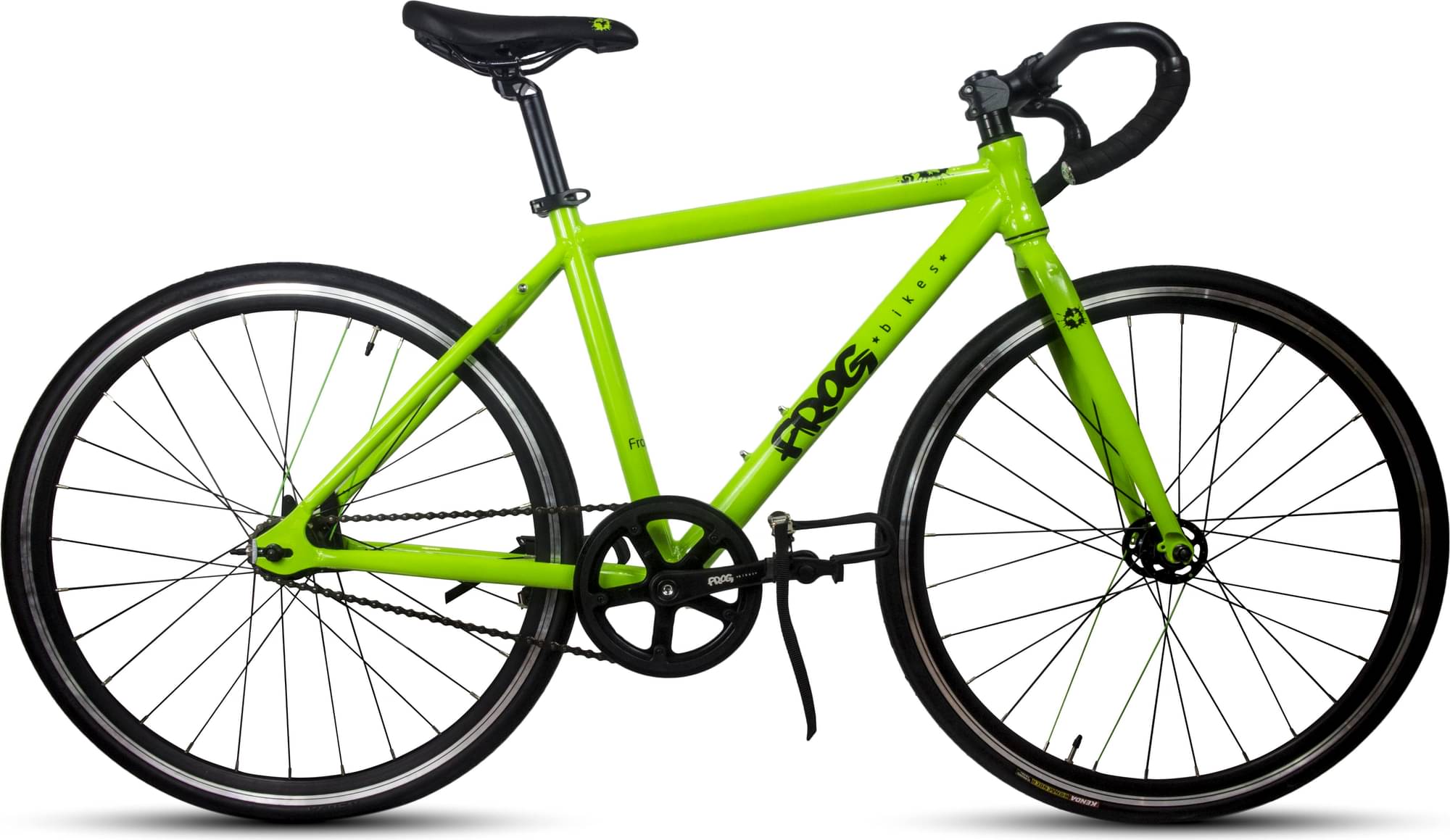

frog Track 70 2024
2024 Youth
Estimate price |
809$
Weight | 7.77 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 26" -
Suspension Rigid -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 T6 heat treated Aluminum alloy, seat tube 17" (432mm)
Suspension Fork
6061 T6 heat treated Aluminum alloy
Drivetrain
Crank
Frog Bikes Patented,140mm, Aluminum straight arm cranks, 44T chainring, black
Bottom Bracket
Thun Shorty-ML-SL; square taper, 68/108/107.5
Chain
KMC Single Speed, 1/2 x 1/8
Pedals
Wellgo M189-M, resin platform, single sided, toe clips (medium), reflectors, 9/16"
Wheels
Front Hub
Quando, Aluminum, 15mm, 28 hole
Rear Hub
Quando, Aluminum, Flip Flop hub, 15mm track nuts, 28 hole
Rims
Aluminium, double wall, deep section
Tires
Kenda K196 25x 1 (ETRTO: 559) 60TPI
Brakes
Brakes
Brakes are not supplied with our Track Bikes
Brake Levers
Brakes are not supplied with our Track Bikes
Cockpit
Stem
38mm Frog Stem (Can be swapped)
Handlebar
Frog Bikes special L:360mm Aluminium Alloy drop bar in black
Seat
Saddle
Frog Bikes racing saddle
Fit data
Geometry
