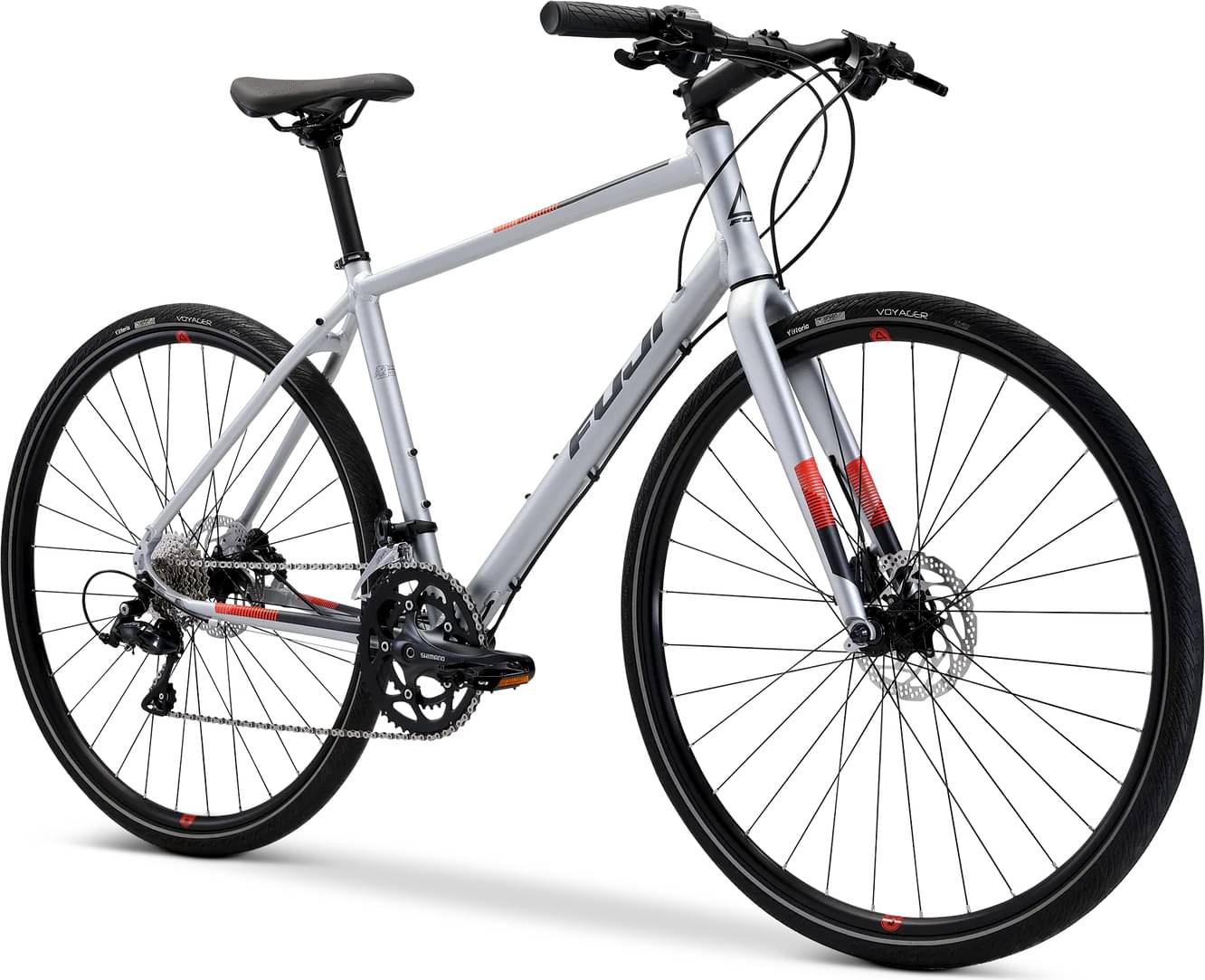

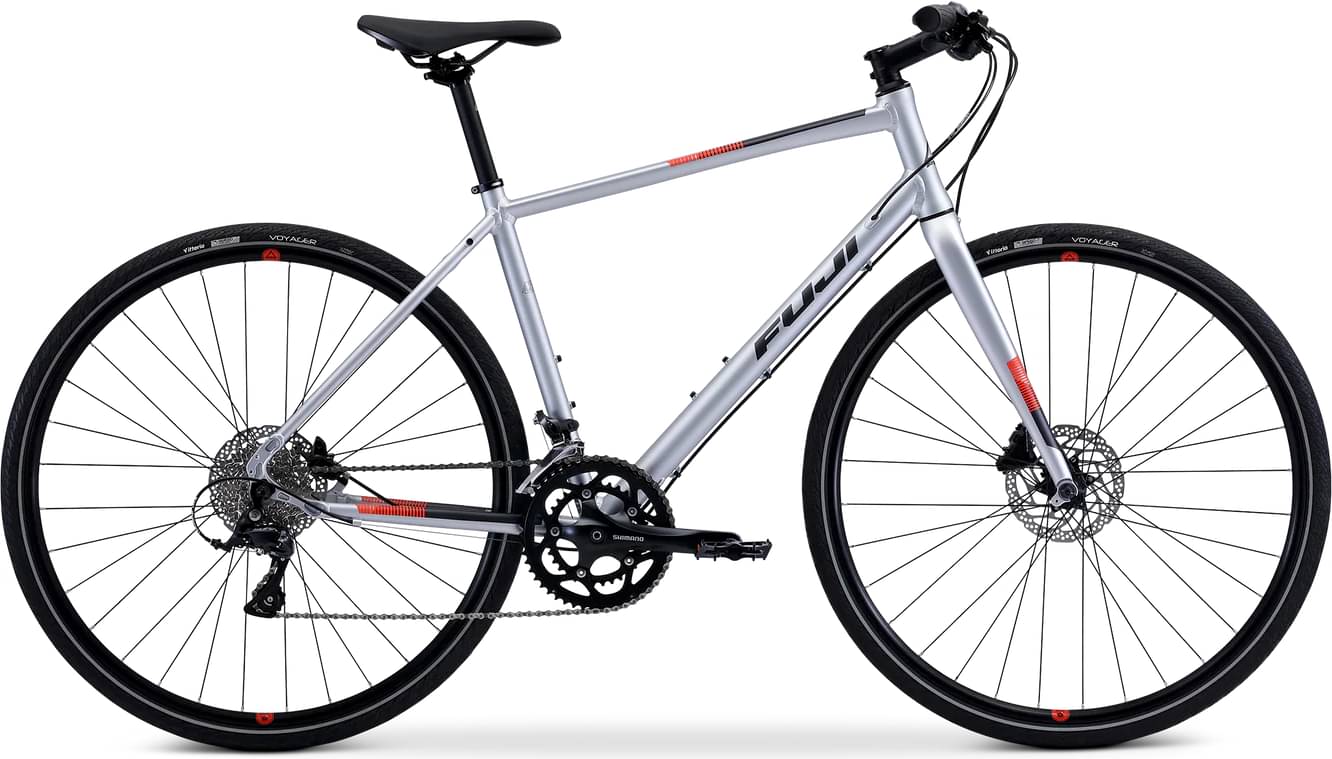

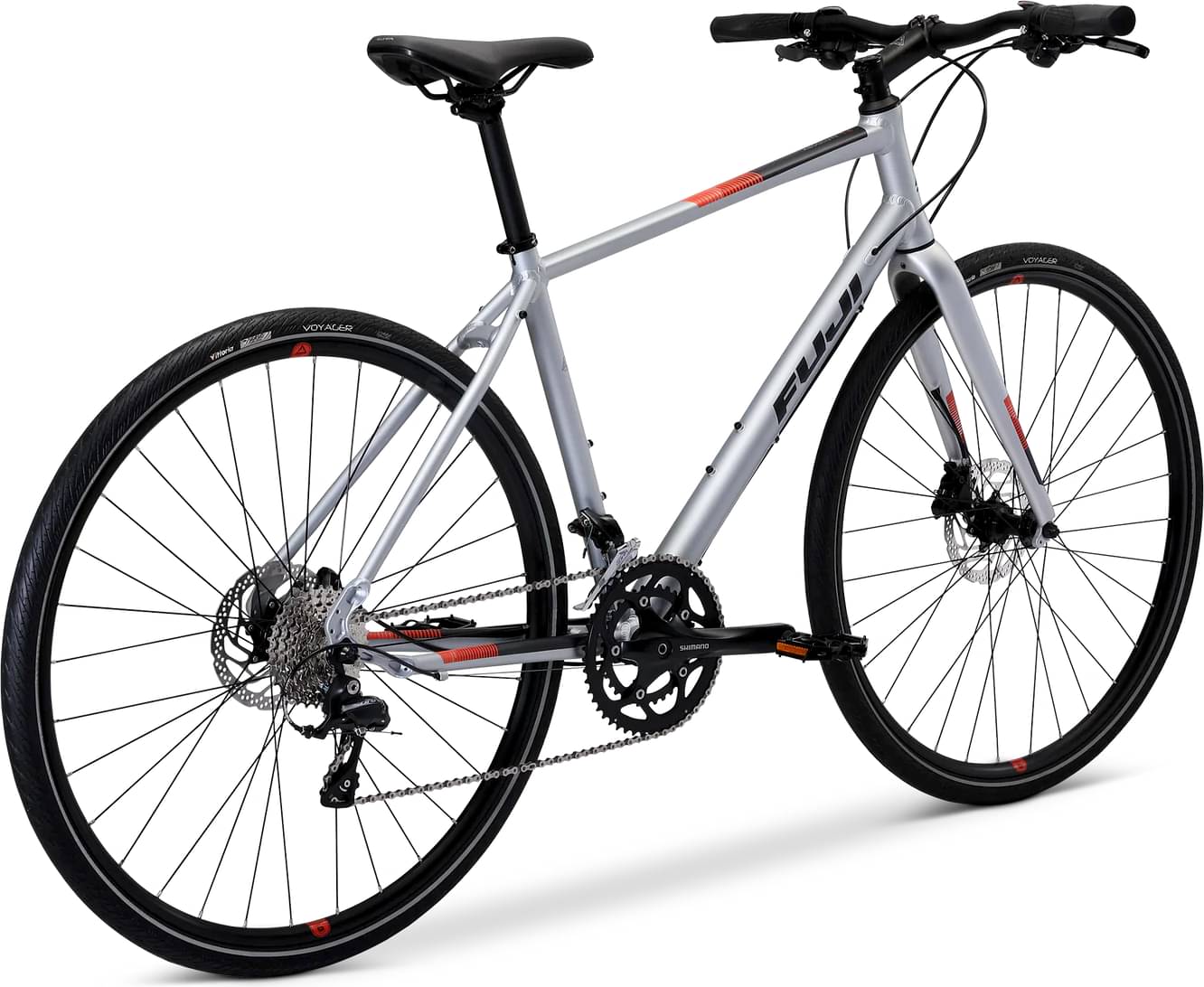

Fuji Absolute 1.3 2025
2025 Urban
Estimate price |
1,049$
Weight | 11.4 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset microSHIFT R9 -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom butted alloy
Suspension Fork
Fuji C10 carbon
Drivetrain
Rear Derailleur
microSHIFT R9, 9-Speed
Front Derailleur
microSHIFT R9
Shift Levers
microSHIFT R9, 2 x 9-speed
Cassette
microSHIFT, 11-34T
Crank
Prowheel Ounce 521, 50/34T
Bottom Bracket
Sealed Cartridge Bearing
Chain
KMC X9
Pedals
Alloy platform
Wheels
Rims
Alex double wall rims 32h, Shimano center lock hubs, stainless spokes
Tires
Vittoria Urbano, 700 x 35c
Brakes
Brakes
C-Star Rush, hydraulic disc, 160mm rotors
Brake Levers
C-Star Rush, hydraulic disc
Cockpit
Stem
3D-forged alloy, +/- 6 degree, 31.8mm
Handlebar
Alloy, 18mm rise, 6 degree backsweep
Grips
Velo comfort sport
Headset
1-1/8" semi-integrated
Seat
Saddle
Selle Royal Vivo Ergo
Seatpost
Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.347 mm | 1.423 mm | 1.476 mm | 1.445 mm | 1.458 mm |
| Front Center | 622 mm | 622 mm | 627 mm | 627 mm | 679 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 87 mm | 78 mm | 72 mm | 98 mm | 73 mm |
| Stack | 528 mm | 555 mm | 583 mm | 601 mm | 630 mm |
| Reach | 392 mm | 390 mm | 395 mm | 416 mm | 432 mm |
| Top Tube Length | 533 mm | 549 mm | 575 mm | 600 mm | 625 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm | 533 mm | 584 mm |
| Head Tube Angle | 69 ° | 70 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 145 mm | 170 mm | 190 mm | 220 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1055 mm | 1055 mm | 1060 mm | 1060 mm | 1112 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 728 mm | 765 mm | 802 mm | 835 mm | 873 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
