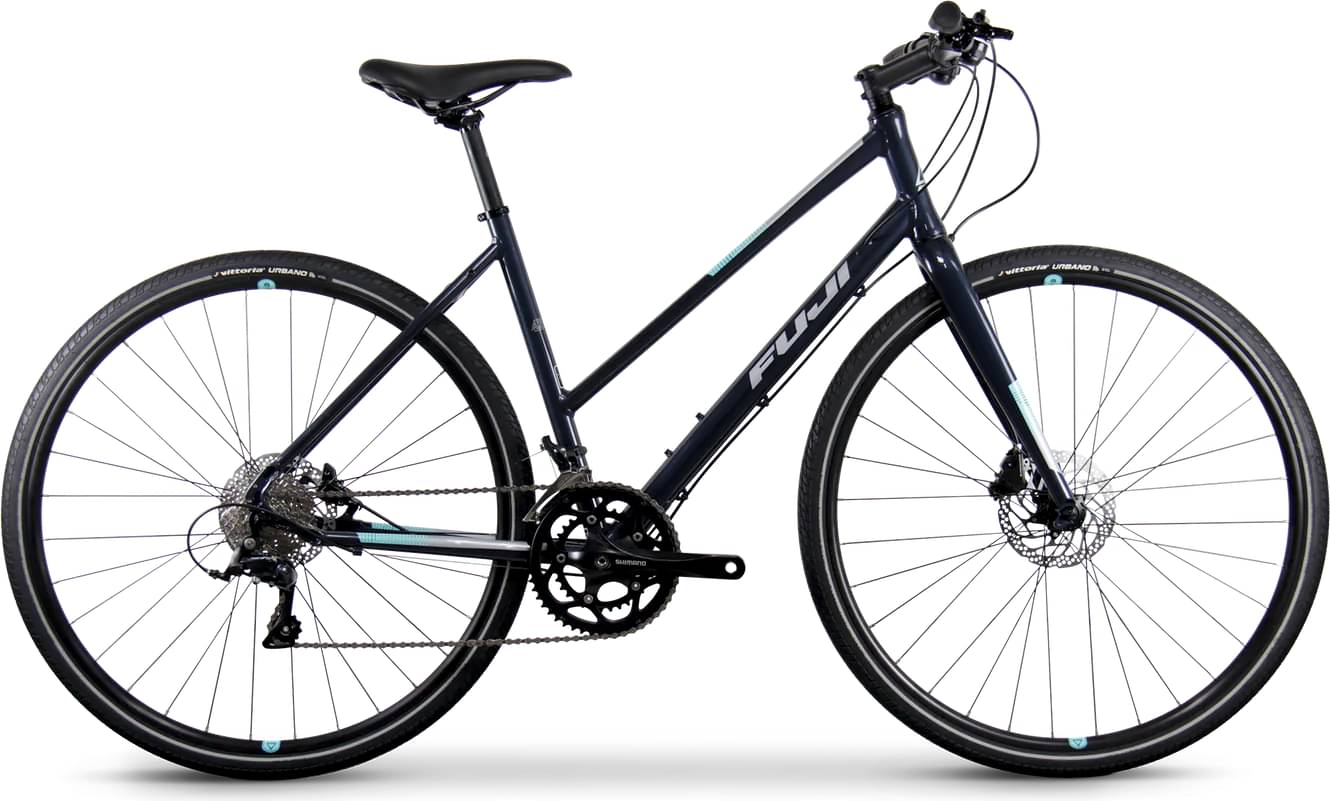

Fuji Absolute 1.3 ST 2025
2025 Urban
Estimate price |
1,279$
Weight | 11.13 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Groupset Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Shimano Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Fuji A2-SL custom butted alloy
Suspension Fork
Fuji C10 carbon
Drivetrain
Rear Derailleur
Shimano Sora
Front Derailleur
Shimano Sora
Shift Levers
Shimano Sora, 2 x 9-speed
Cassette
Shimano Alivio, 11-32T
Crank
Shimano R345, 50/34T
Bottom Bracket
Shimano Octalink, sealed bearing
Chain
KMC X9
Pedals
Alloy platform
Wheels
Rims
Alex double wall rims 32h, Shimano center lock hubs, stainless spokes
Tires
Vittoria Urbano, 700 x 35c
Brakes
Brakes
Shimano M200 OR C-STAR Rush, hydraulic disc, 160mm rotors
Brake Levers
Shimano M200 OR C-STAR Rush, hydraulic disc
Cockpit
Stem
3D-forged alloy, +/- 6°, 31.8mm
Handlebar
Alloy, 18mm rise, 6° backsweep
Grips
Velo comfort sport
Headset
1-1/8" semi-integrated
Seat
Saddle
Selle Royal Vivo Ergo
Seatpost
Alloy, 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.447 mm | 1.481 mm | 1.542 mm |
| Front Center | 609 mm | 611 mm | 607 mm |
| Rake | 45 mm | 45 mm | 45 mm |
| Trail | 87 mm | 79 mm | 75 mm |
| Stack | 541 mm | 560 mm | 583 mm |
| Reach | 374 mm | 378 mm | 378 mm |
| Top Tube Length | 519 mm | 539 mm | 555 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73 ° |
| Seat Tube Length | 381 mm | 432 mm | 483 mm |
| Head Tube Angle | 69 ° | 70 ° | 71 ° |
| Head Tube Length | 135 mm | 150 mm | 170 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm |
| Wheelbase | 1050 mm | 1052 mm | 1048 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 670 mm | 681 mm | 681 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
